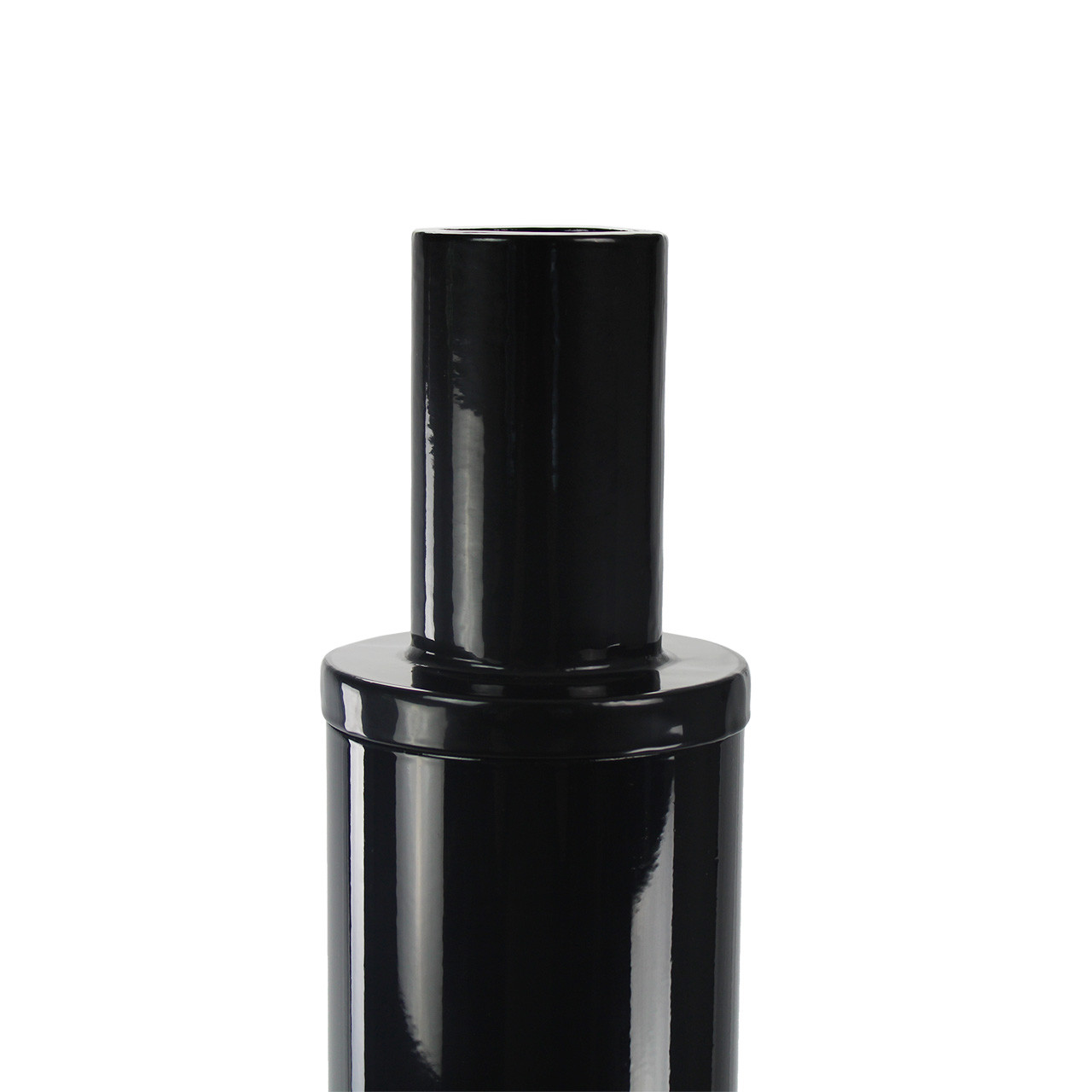

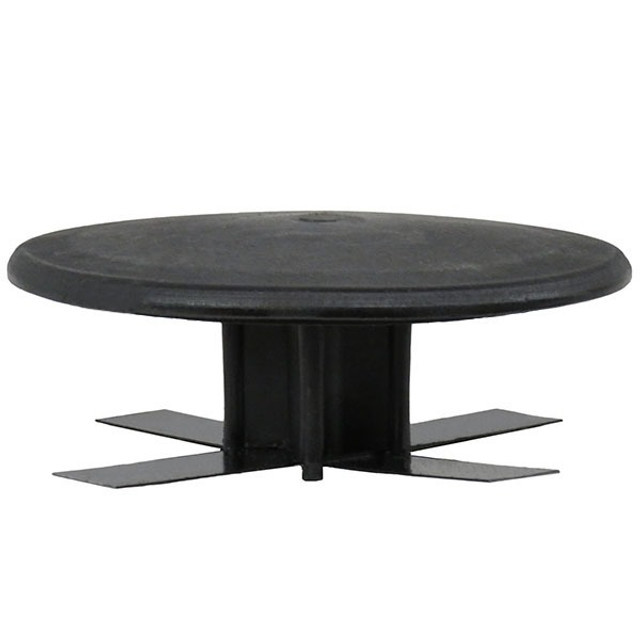

Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long.

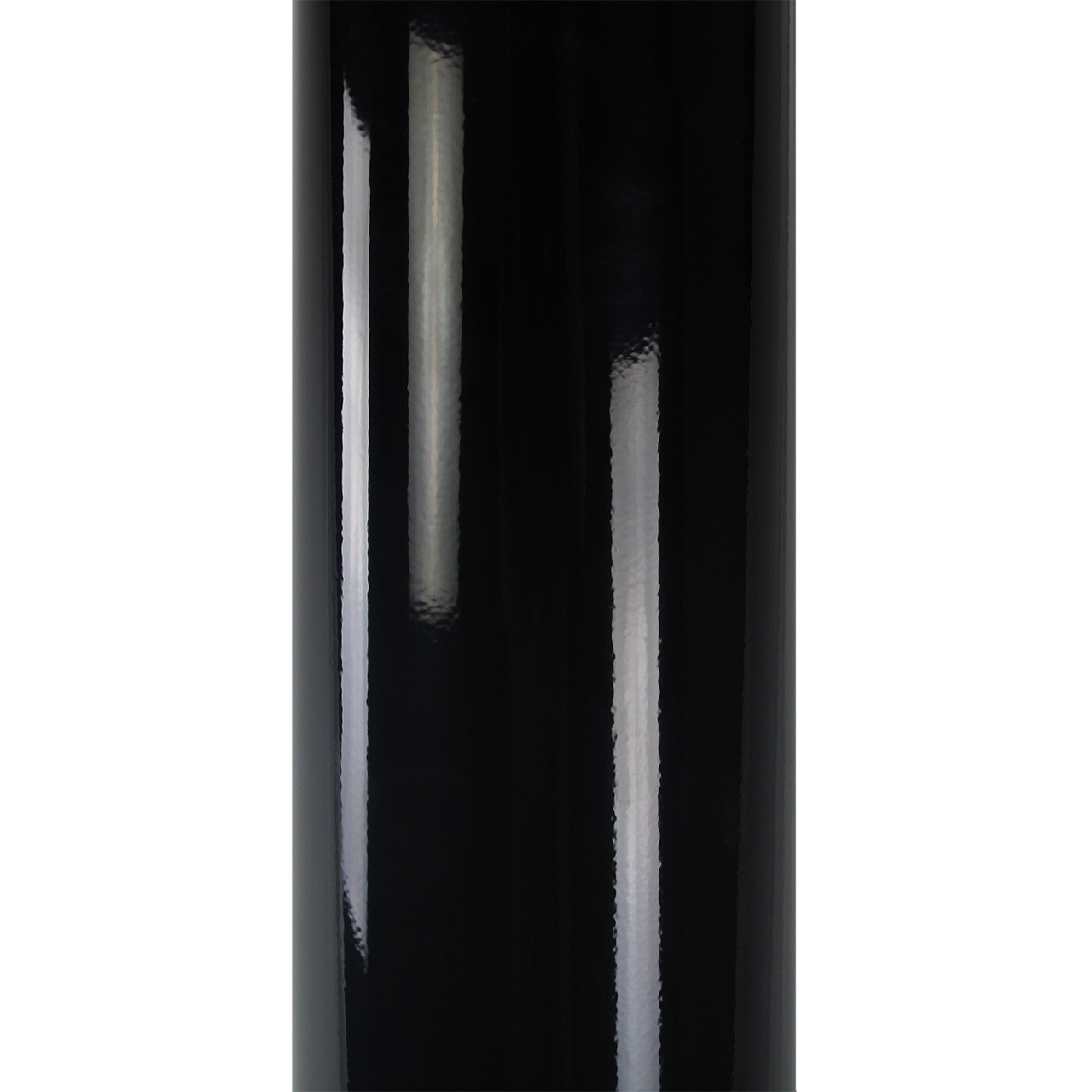

Pole Shaft: The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221.
Handhole: 2 in. X 4 in. size handhole with cover is located at 18 in. from the base. Ground lug is included.
Finish: Commercial grade, super durable powder coat finish. Black is standard color. Dark Bronze, White, Gray colors are available with extended lead times.

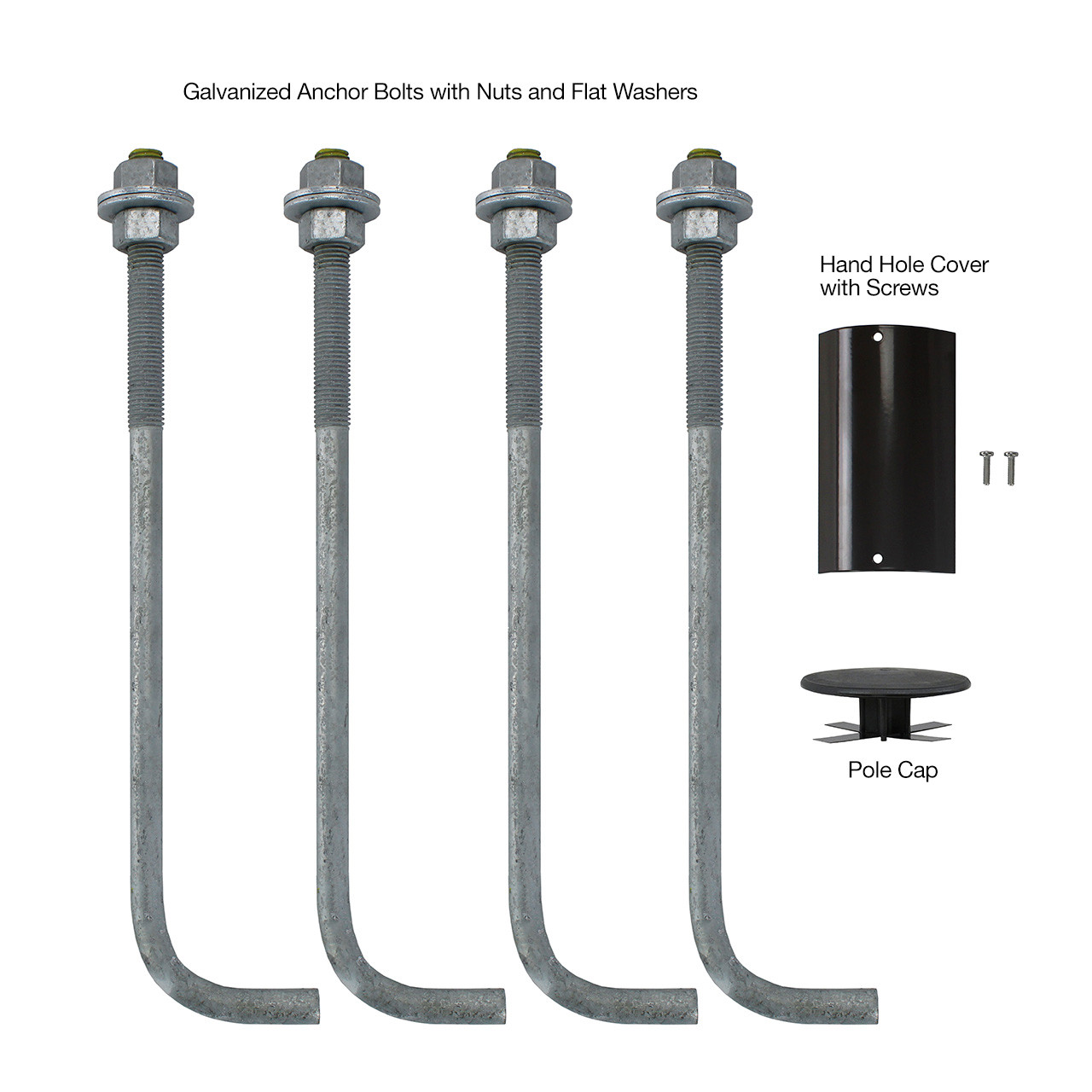

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 Hex Nut, 2 Lock Washer and 2 Flat Washer. An actual size paper anchor bolt template is provided.
Bolt Circle Range: 6 1/2 “-8”
Base Cover: Two-piece ABS plastic base cover is provided. Hardware is included to securely attach the two pieces together after pole installation.
Other Options: The following options are available with extended lead times and surcharges: Vibration damper, custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handhole and UL compliant handholes.
Warranty: 5 Years.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
Color Options
Dark Bronze Powder Coat, Black Powder Coat, White Powder Coat, Gray Powder Coat
Pole Top Options
Top Cap – Standard, 2-3/8 Inch Tenon (Post Top), 3 Inch Tenon (Post Top), Drilled Single Arm (1A), Drilled – Twin at 180° (2A), Drilled – Twin at 90° (2B), Drilled – Triple at 90° (3A), Drilled – Triple at 120° (3B), Drilled – Quad at 90° (4Q)
Pre-Ship Anchor Bolts
Ship Anchor Bolts with Pole â Standard, Pre-Ship Anchor Bolts
Shipping Surcharge Based On Quantity (CHARGES ADDED AT CHECKOUT)
1 Light Pole: + $345.00, 2-4 Light poles: (per pole), 5 or More Light Poles – Free Shipping
Shipping Surcharge Based on Delivery Location
Commercial address â No surcharge, Residential Address + $100.00
