12 Foot Round Tapered Anchor Base Aluminum Light Pole, 5 Inch Diameter, 0.125 Inch Wall Thickness

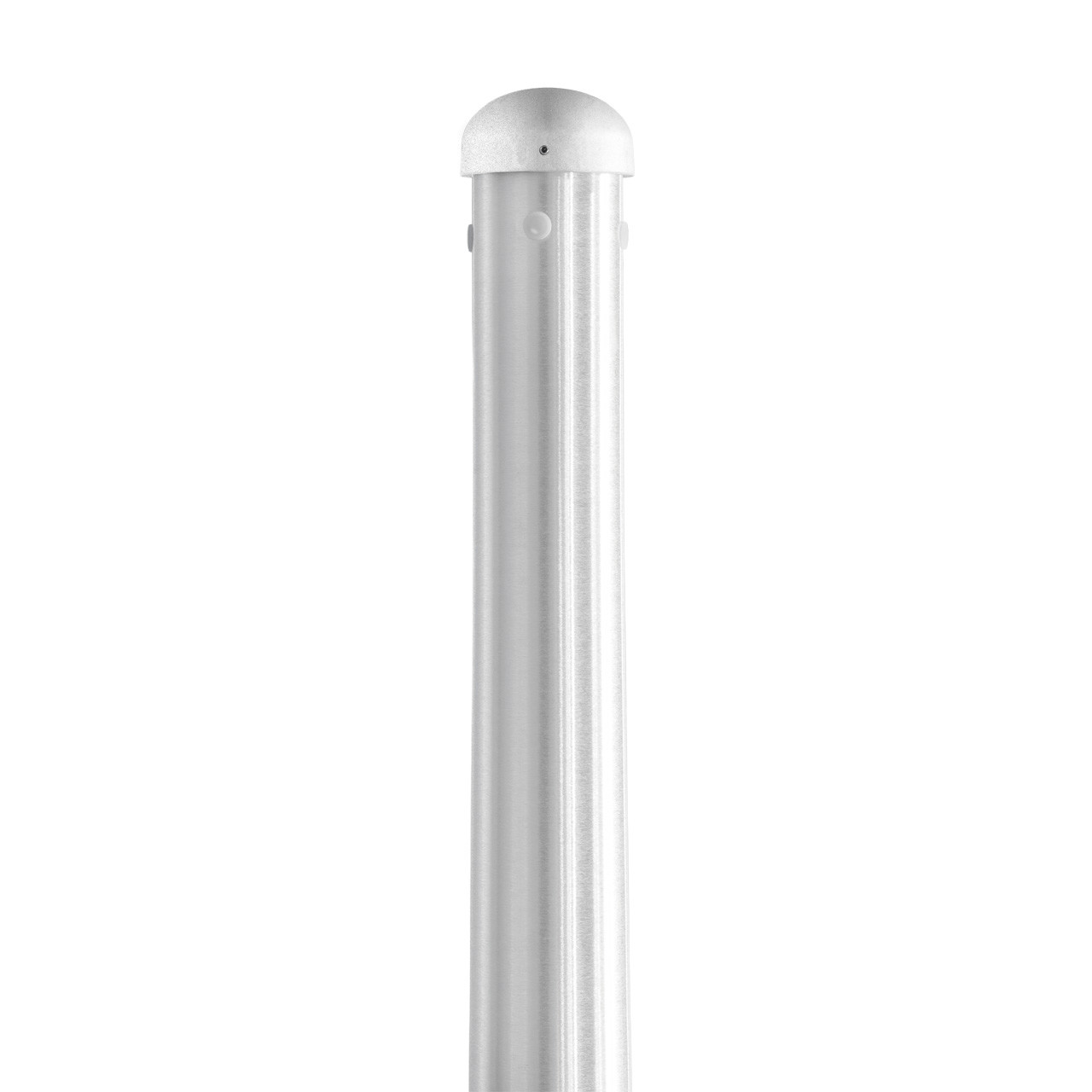

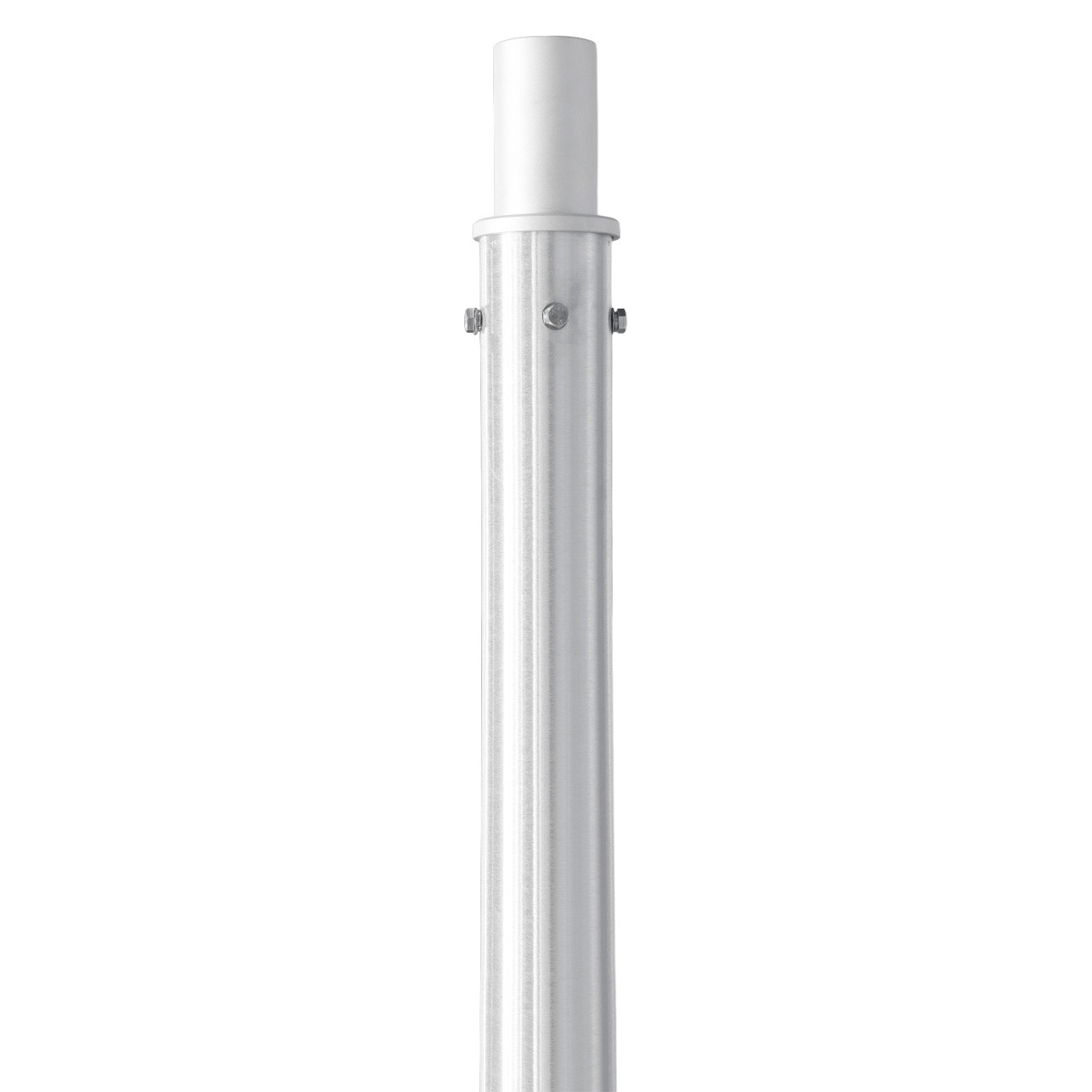

Pole Top Options: A removable pole cap is provided. If tenon option is selected, a 2-3⁄8″ diameter tenon with 4 inch length is provided.

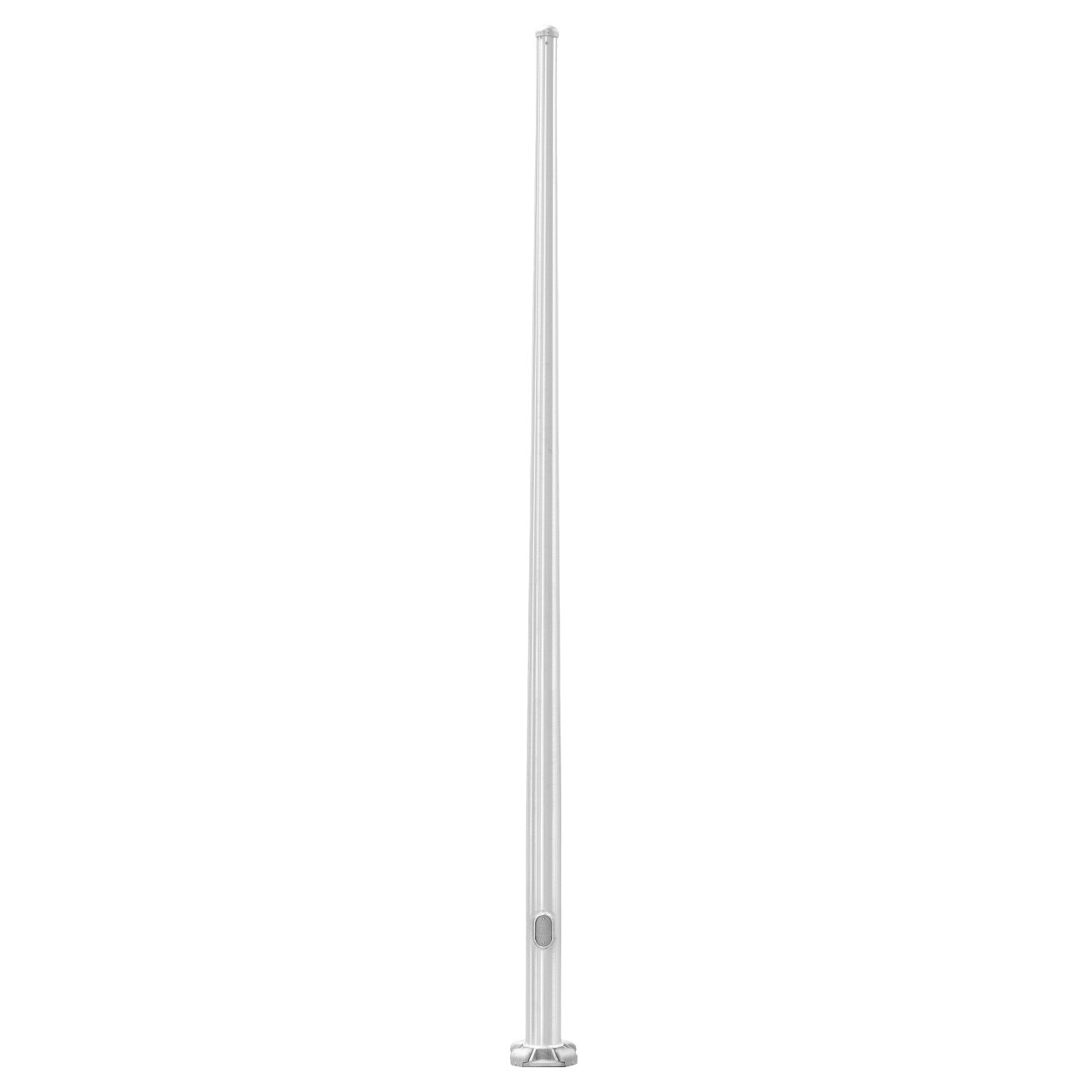

Pole Shaft: 12 ft. height tapered aluminum shaft with 0.125″ wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy.

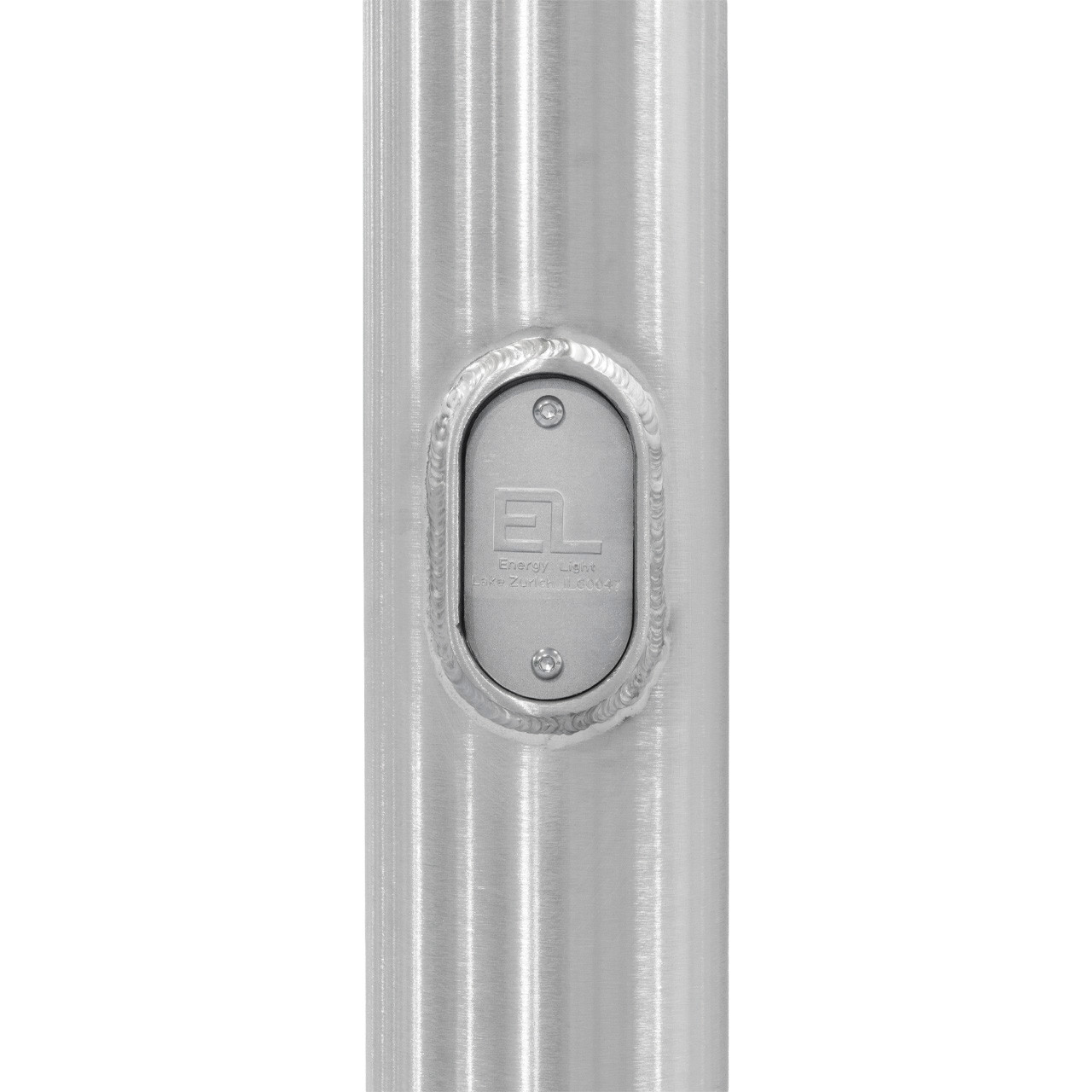

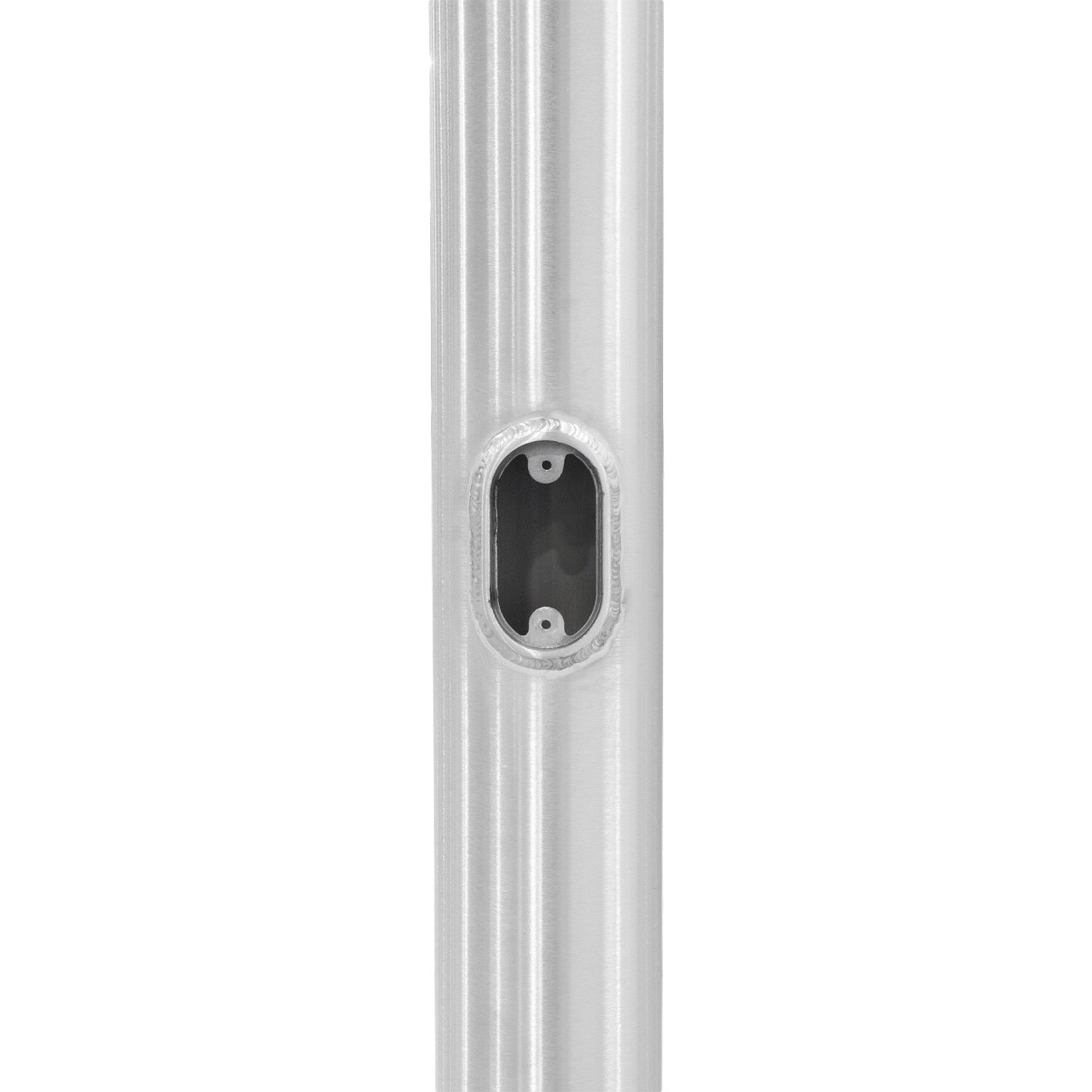

Handhole: Reinforced 2″x4″ handhole is located 18 inches above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

Finish: Brushed natural aluminum (Standard). Dark Bronze, Black, White and Gray are available at a surcharge. Other colors and custom color options are available at an additional surcharge.

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 1 Hex Nut, 1 Lock Washer and 1 Flat Washer. Energy Light LLC recommends leveling shims instead of leveling nuts. No grouting is required with leveling shims. Shims are available at a surcharge. An actual size paper anchor bolt template is provided.

Bolt Circle Range: 7 1/2″-8 1/2″.

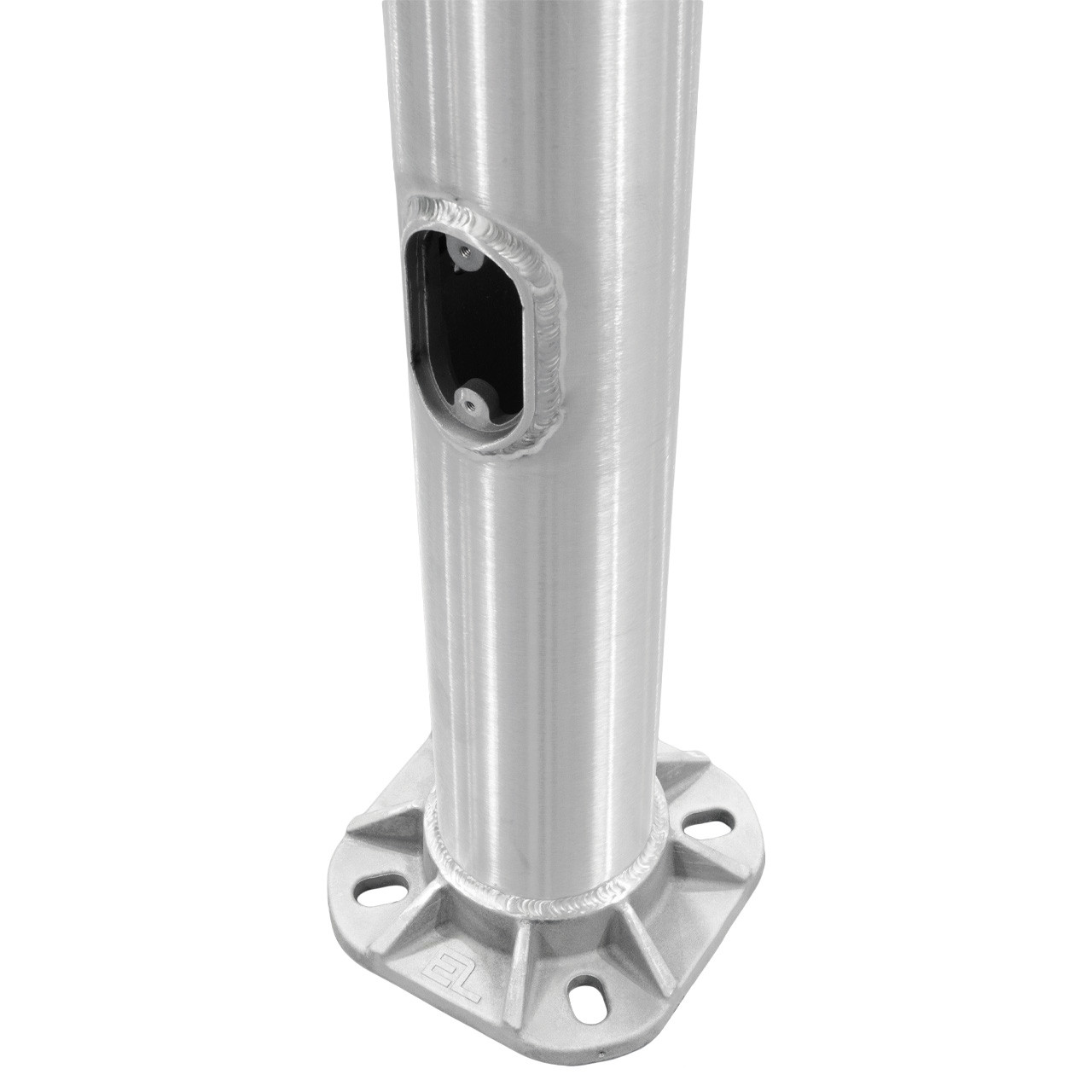

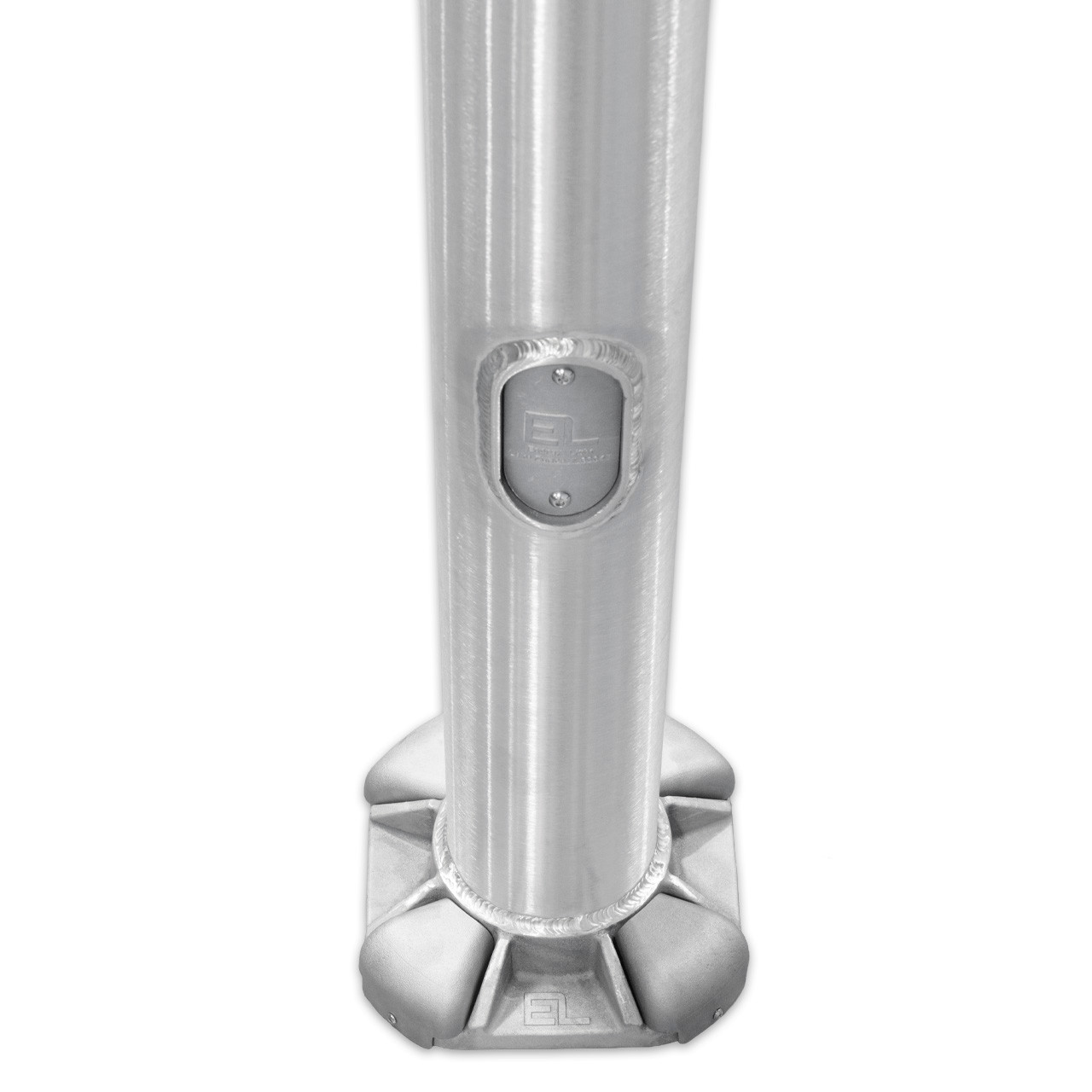

Base Style: 4 Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws.

Warranty: 5 Years.

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
