20 Foot Square Steel Light Pole Height, 4 Inch Wide, 7 Gauge

Availability
This is a made to order item. We will contact you with current lead time within one business day of order placement. For poles that can ship in a few days please visit our quick-ship poles section: quick-ship light poles.

Product Specifications

• Pole Top Options: A removable pole cap is provided if the pole is drilled for attaching light fixtures. The drill pattern and drill orientation needs to be provided by the customer unless Energy Light fixtures are used for the project. If tenon option is selected, a steel tenon will be provided. A 2 3⁄8 inch diameter tenon with 4 inch length is standard; however, the customer needs to confirm the appropriate tenon size required for the project.
• Pole Shaft: 4 inch square 7 gauge commercial grade steel conforms to ASTM standards. Pole height is 20 ft.
• Handhole: Reinforced, 3” X 5” size handhole is located at 18 inches from the base. Grounding lug incorporating a tapped 1/2″-13 NC hole is provided.
• Color: Commercial grade, super durable powder coat is the standard option. Dark bronze, white and black colors are provided at no extra charge. Other colors and custom colors options are available at a surcharge. Hot dip galvanizing is available with a surcharge and extended lead time. Powder coated, galvanized poles are also available as a premium option.

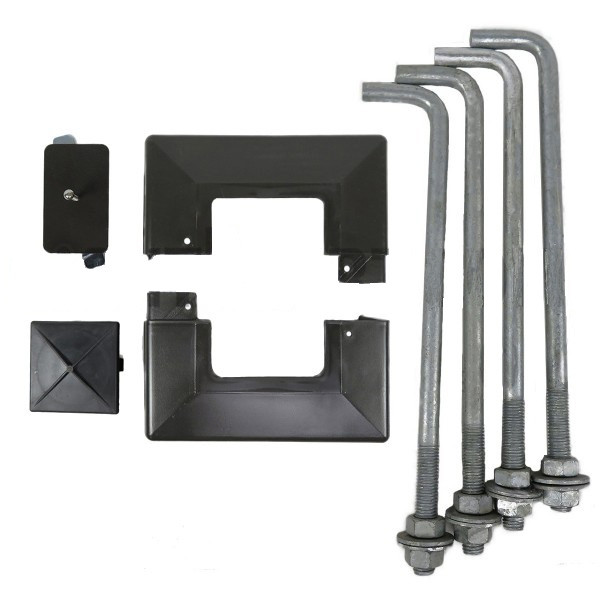

• Anchor Bolts: A set of 4 galvanized steel anchor bolts specifically designed for this light pole is required for each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. The top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
• Bolt Circle: 8-1/2″ (Bolt Circle Range 8″-11″)

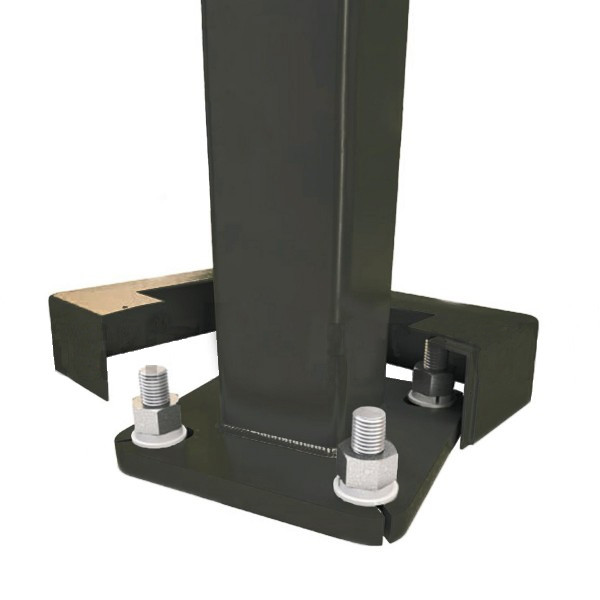

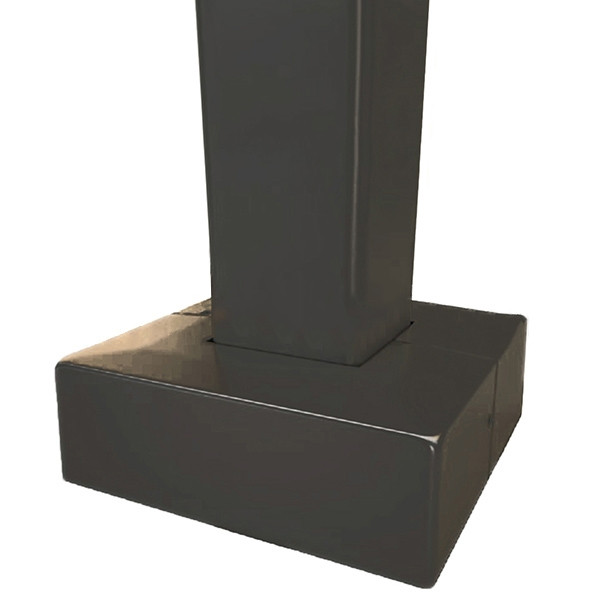

• Base Cover: Two-piece steel square base cover is required for protecting pole base from elements. Stainless steel screws are included to attach the 2 pieces together after pole installation.
• Other Options: The following options are available:
  Vibration dampener, custom tenon sizes, custom colors, electric/GFI outlets, custom pole heights, additional handholes, UL compliant handholes and custom base plate dimensions.
• Warranty: 1 Year.
• Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.

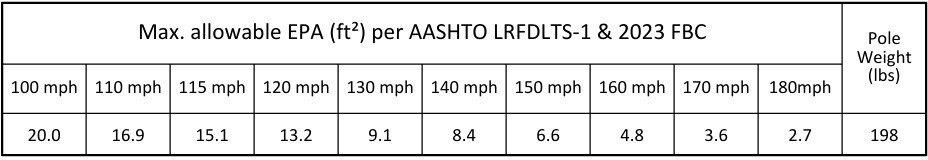

MAXIMUM EPA

Advantages of Steel Light Poles

High Wind Load Capacity – Steel poles are ideal for areas with strong winds or extreme weather conditions, offering superior stability and strength.

Cost-Effective for Large Projects – Steel poles are more affordable than other materials, making them an economical choice for large-scale installations like parking lots or municipal lighting.

Heavy Load Support -Steel can support heavier lighting fixtures, making it perfect for projects requiring multiple or large-scale LED installations.

Durability in Harsh Environments – With proper powder coating or galvanizing, steel light poles resist corrosion, ensuring long-lasting performance in urban or industrial settings.

Low Maintenance – Steel poles, when coated for protection, require minimal maintenance, reducing long-term costs for commercial properties.

Applications for 20 Foot Round Straight Steel Light Pole

The 20-foot square steel light pole is best suited for industrial and high-wind environments. Its robust design provides enhanced stability and strength, making it an excellent choice for open areas like large parking lots, industrial sites, and coastal regions where wind loads are a concern. The square shape also supports heavier or multiple light fixtures, ensuring durability and optimal performance in challenging conditions.
