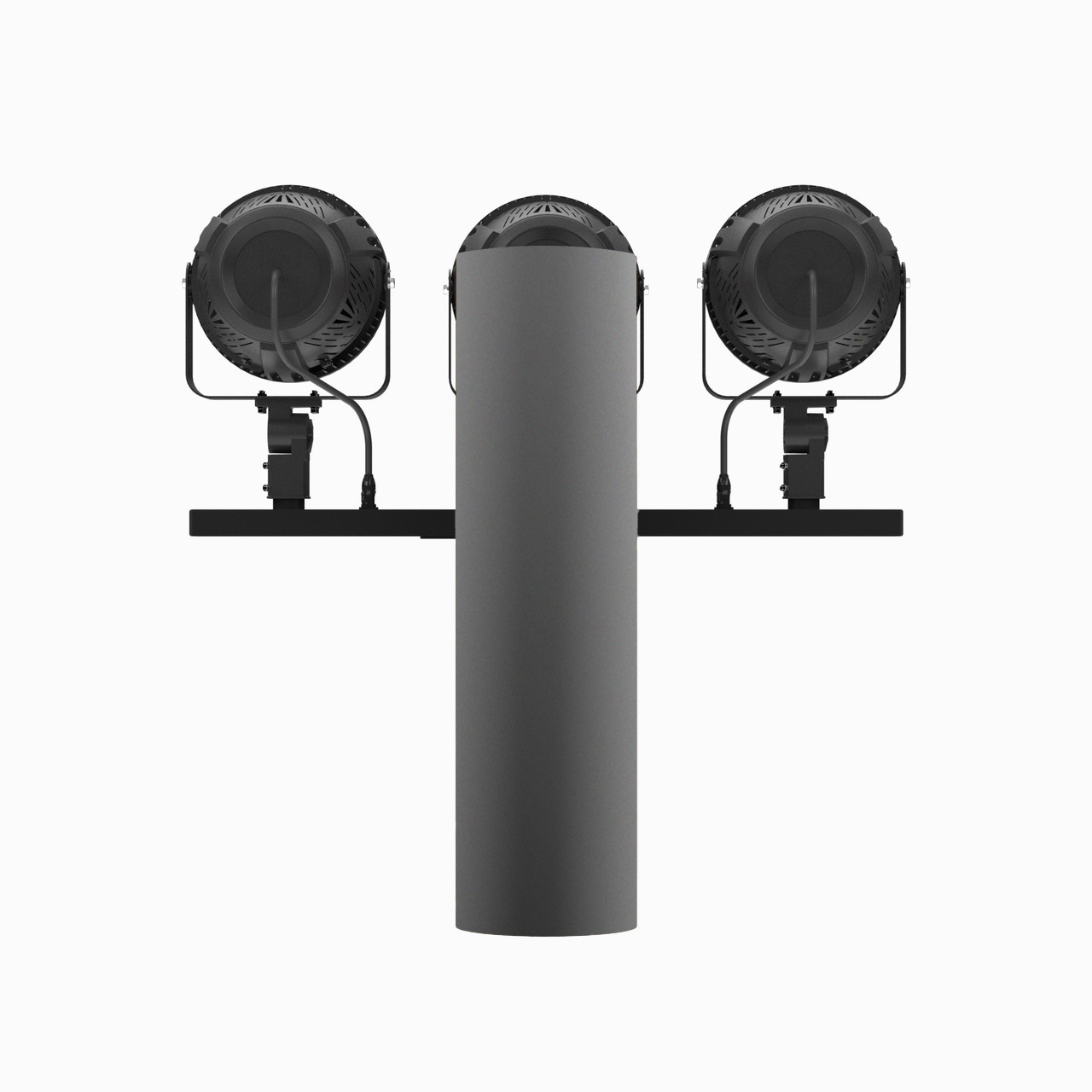

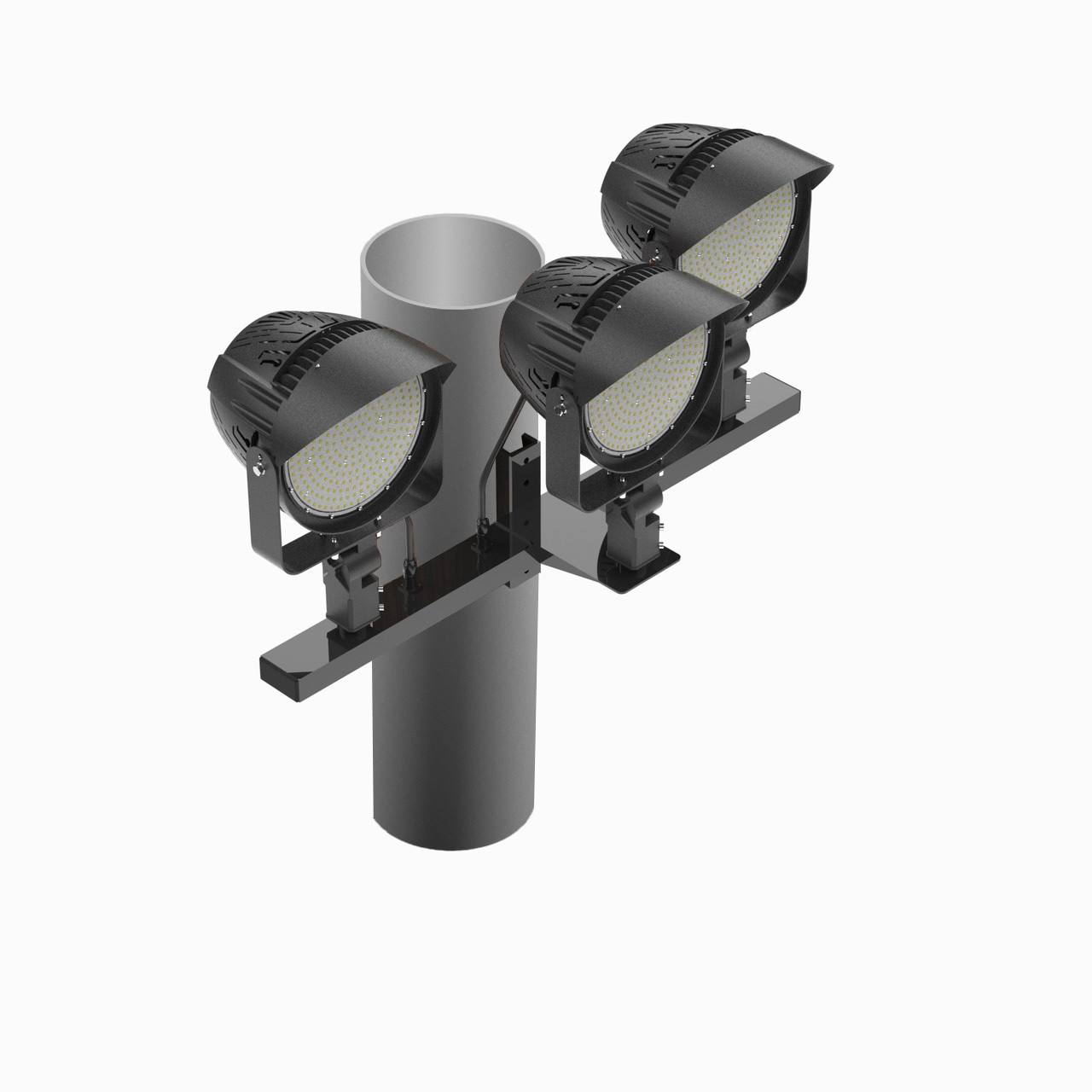

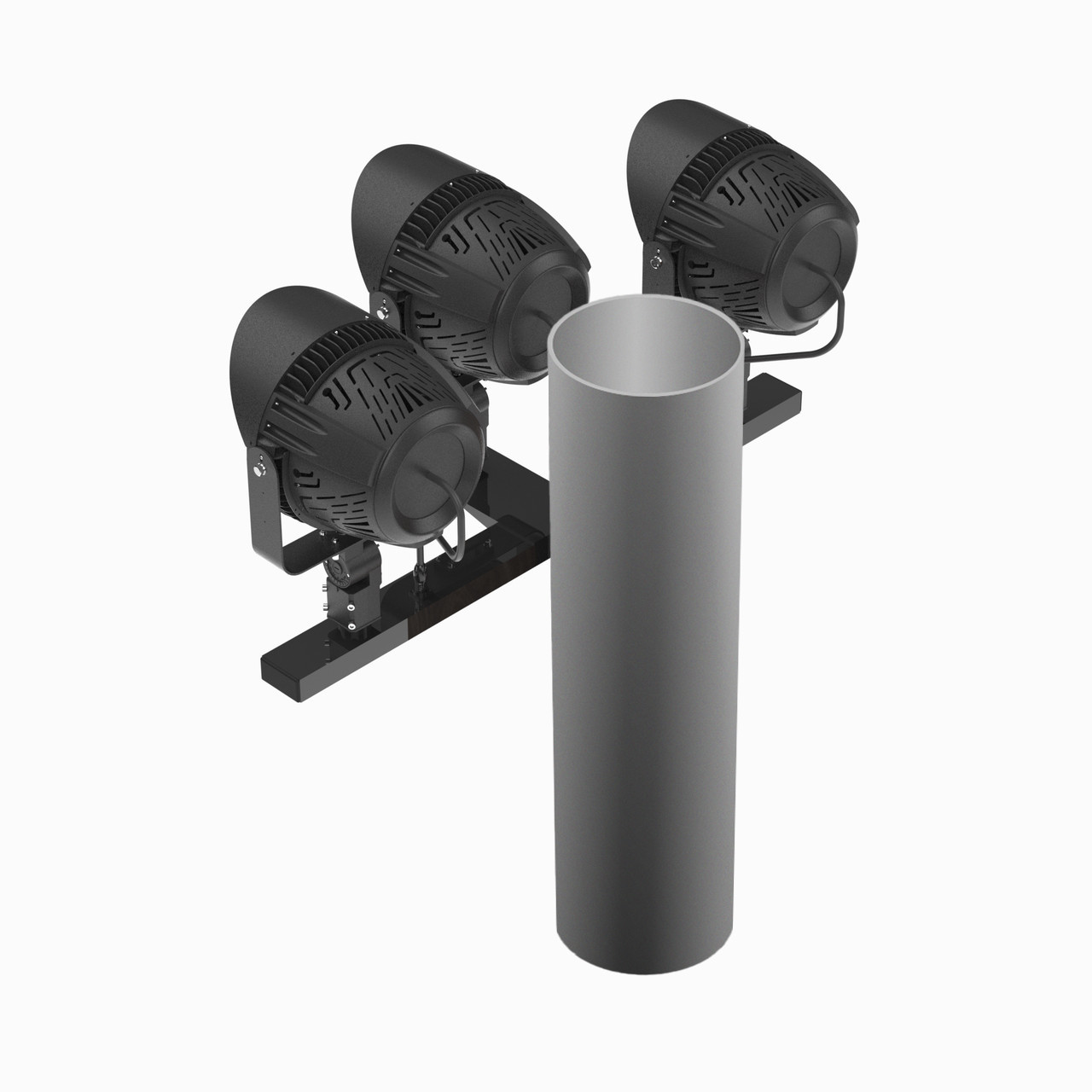

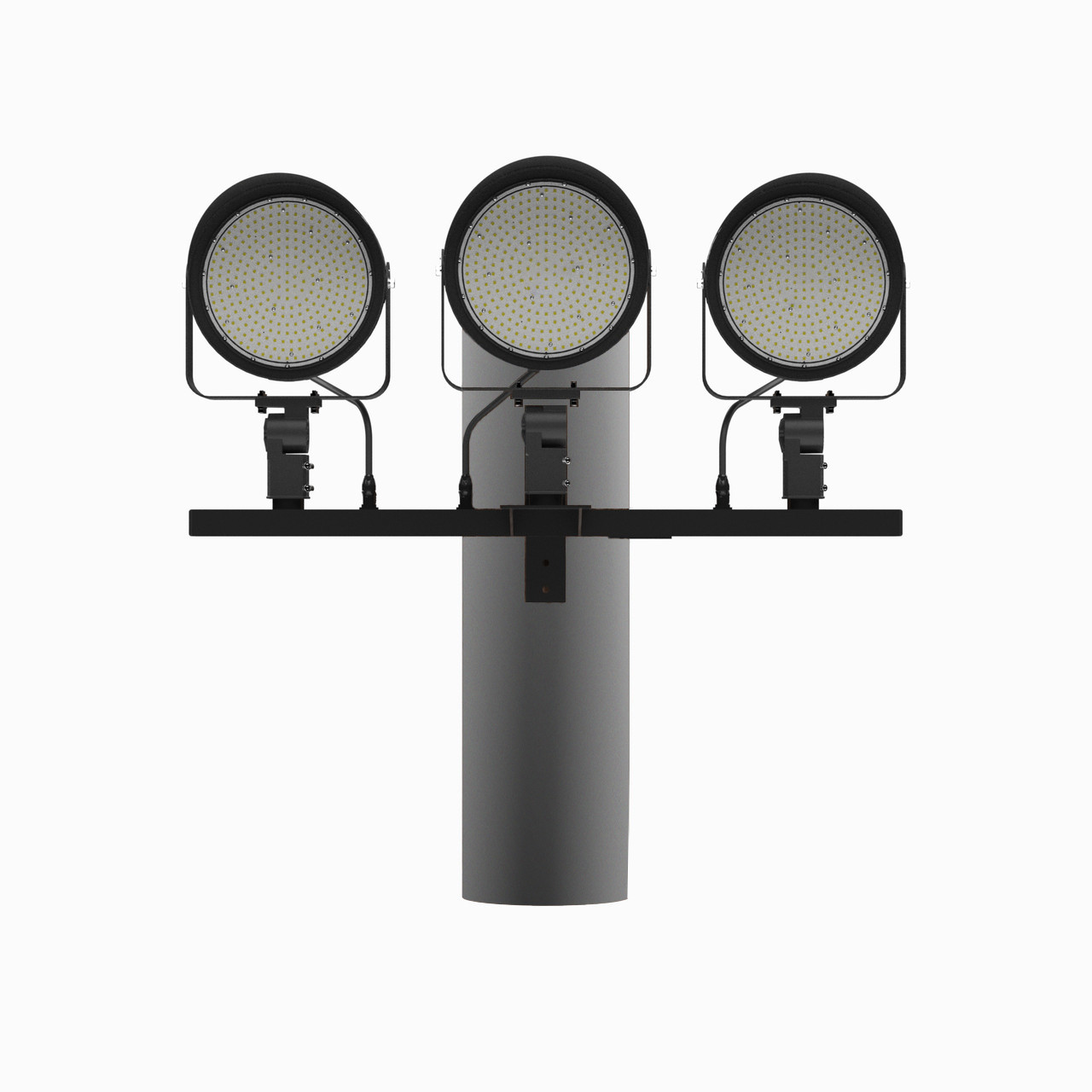

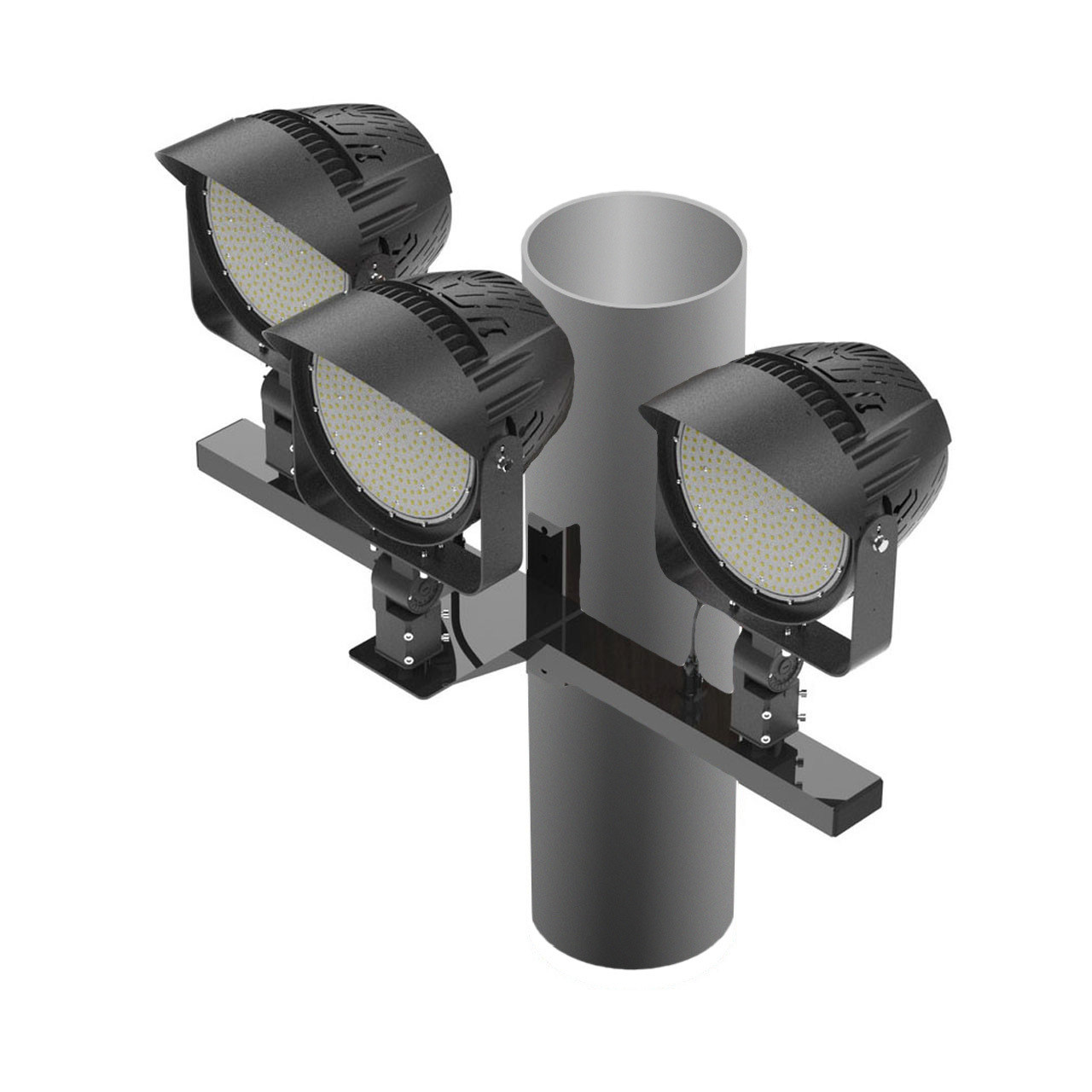

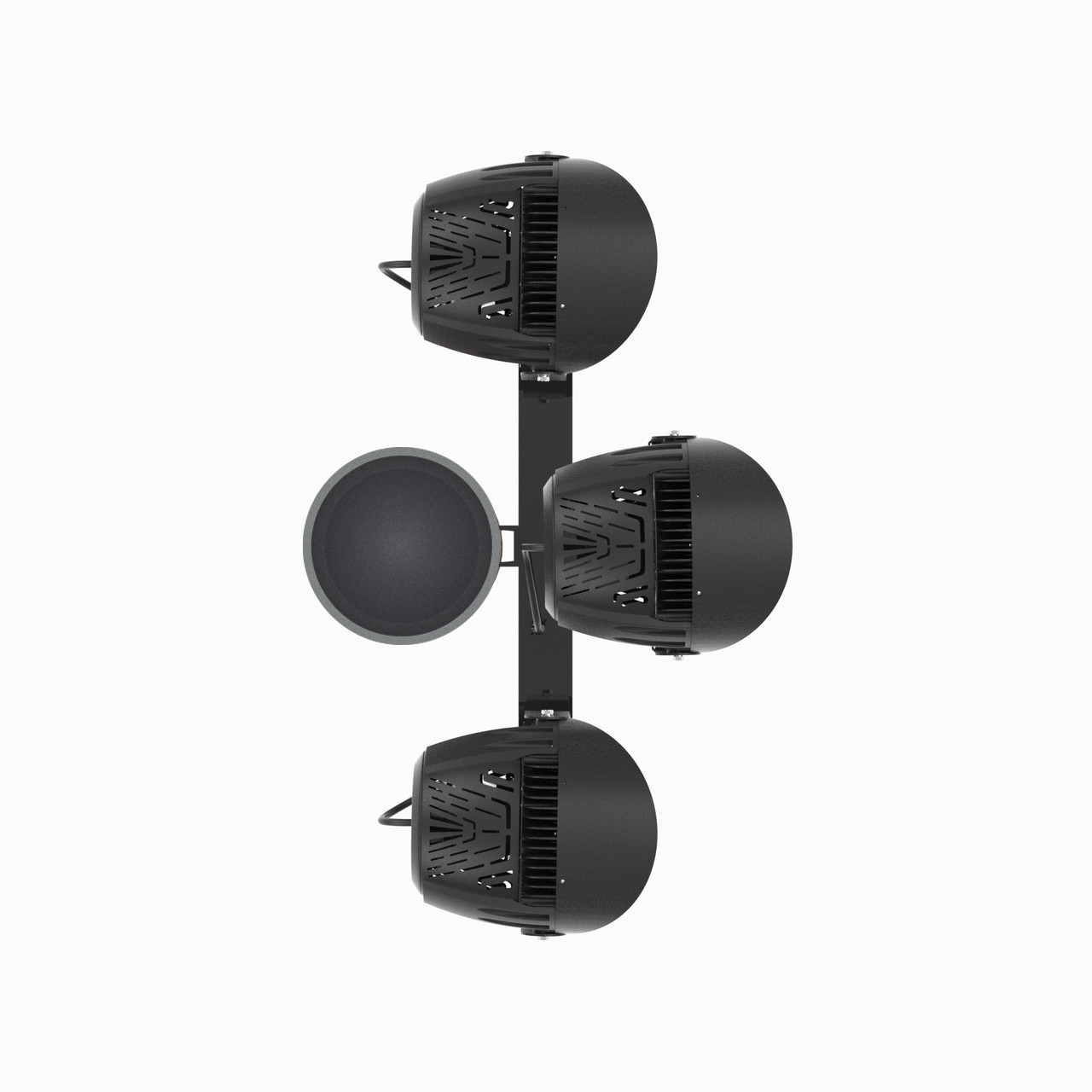

225,000 Lumen Power Bar Sports Light Package

Sports Light Package Includes:

• One (1) Exclusive Power Bar Bracket with
• Three (3) 75,000 Lumen LED Lights and Visors.
• Power Bar Sports Lights Package ships pre-wired and ready to mount.
• Easy installation or replacement with EZ twist/lock connectors.

Unique Advantages:

• Bracket is pre-wired and is ready to mount and power-up. Reduces installation labor up to 50%.
• LED lights attach easily to Power bar bracket with a waterproof twist/lock connector.
• Low EPA and wind resistance due our exclusive low-profile bracket and light yet powerful LED sports lights.
• Unmatched value includes the entire pre-wired assembly consisting of LED lights, bracket, hardware.
• Mounting versatility allowing Power bar to work on round or square poles made of steel or wood.
• Customization capabilities to suit your needs.

Product Specifications:

LED Fixture:

• Material: Aluminum construction with integrated fins to maximize heat dissipation.
• Color: Black
• Power: 500 Watts/each
• Lumens: 75,000/each
• Lumens/Watt: 150
• Voltage: 120-277 Volt standard. 345-480 Volt option as special order.
• Amps: 4.17 @ 120V/1.81 @ 277V
• Color Temperature: 5000K
• Beam Angle: 45°
• Dimming: 0-10V Dimming Capable. Dimming control not provided (field install).
• UL Listed / DLC Premium / IP66
• Life Expectancy: 50,000 hours
• Weight: 25 lbs. (Each)

Total Power: 1500 Watts
Total Lumens: 75,000 x 3=225,000
Total Amps: 12.51 @120V / 5.43 @277V
Warranty: 5 Years

Power bar bracket:

The power bar bracket is designed and made in the USA from high quality structural steel.

• Finish: Black Powder Coat
• Weight: 32 lbs.

• Total Weight: 107 lbs.
• Max EPA (per AASHTO LRFDLTS-1): 6.04 ft² with 180 mph wind speed (Including Bracket)
