Oxford Series Anchor Base 3 Inch Round Aluminum Light Pole Assembly

Pole Top Options: Open top is standard. Removable top cap or tenon is available as an option. 2-3/8” O.D. aluminum tenon is 4” high and is attached to the pole with 3 set screws.
Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard pole height is 14 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.

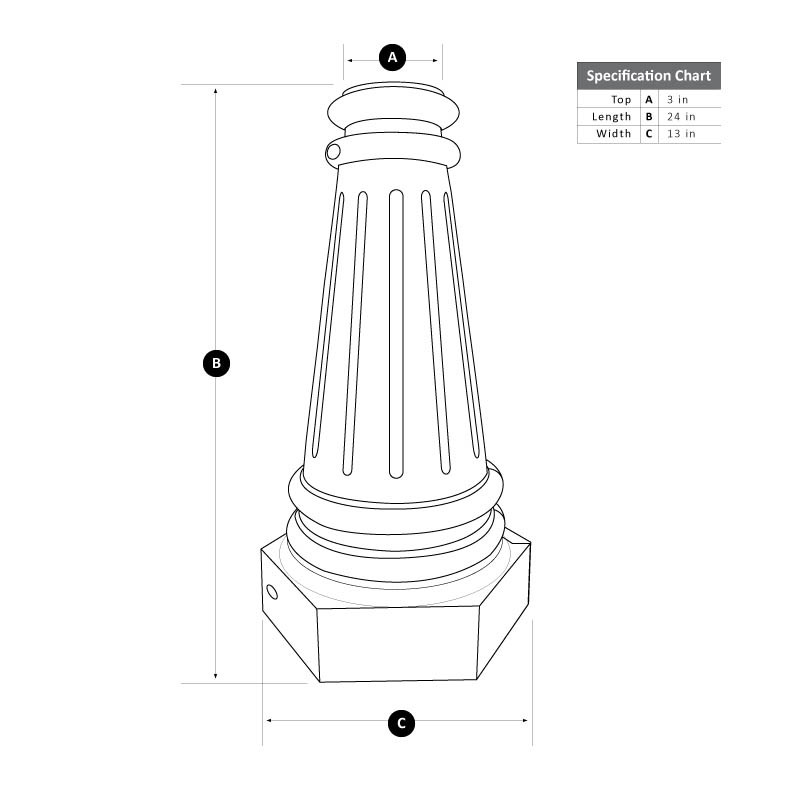

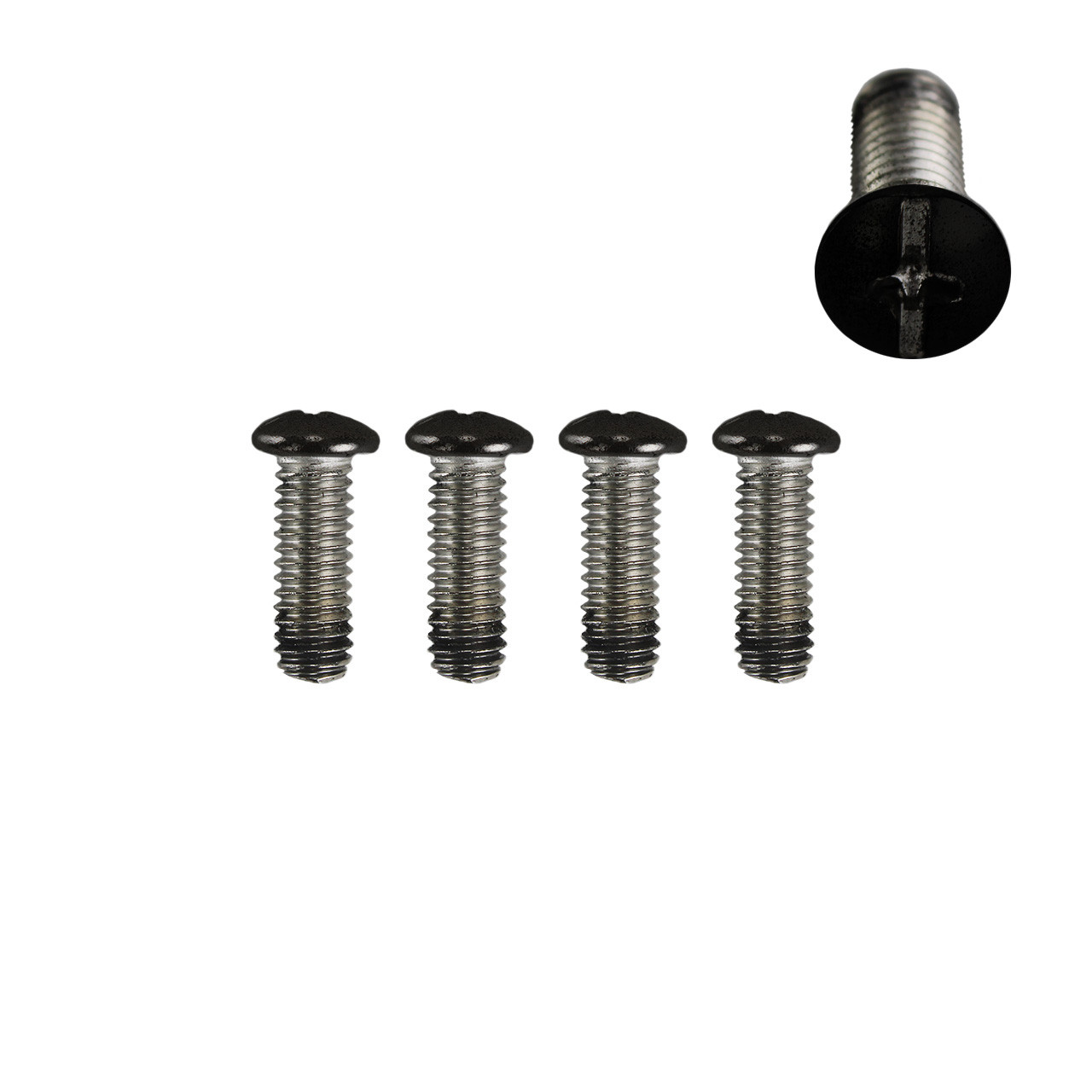

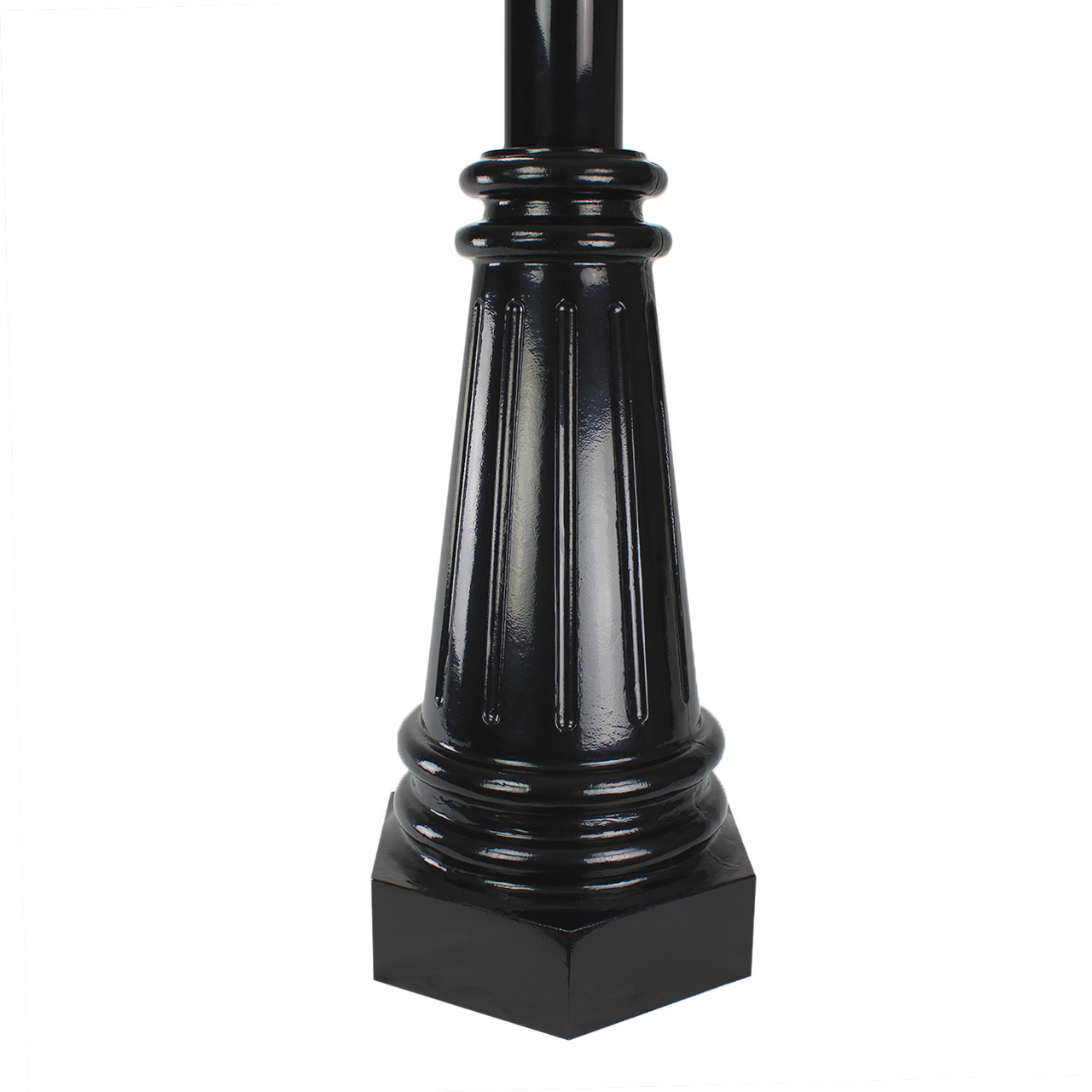

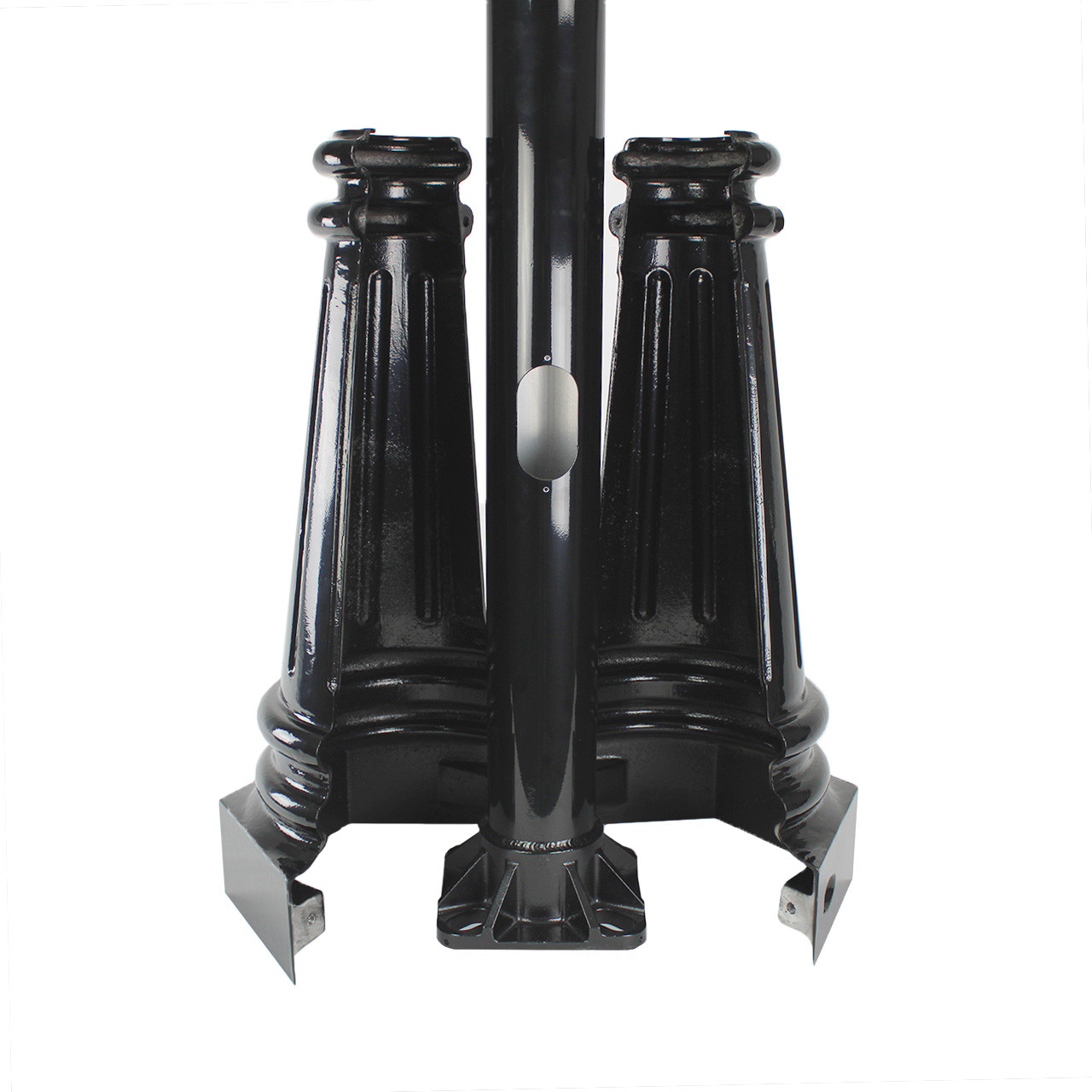

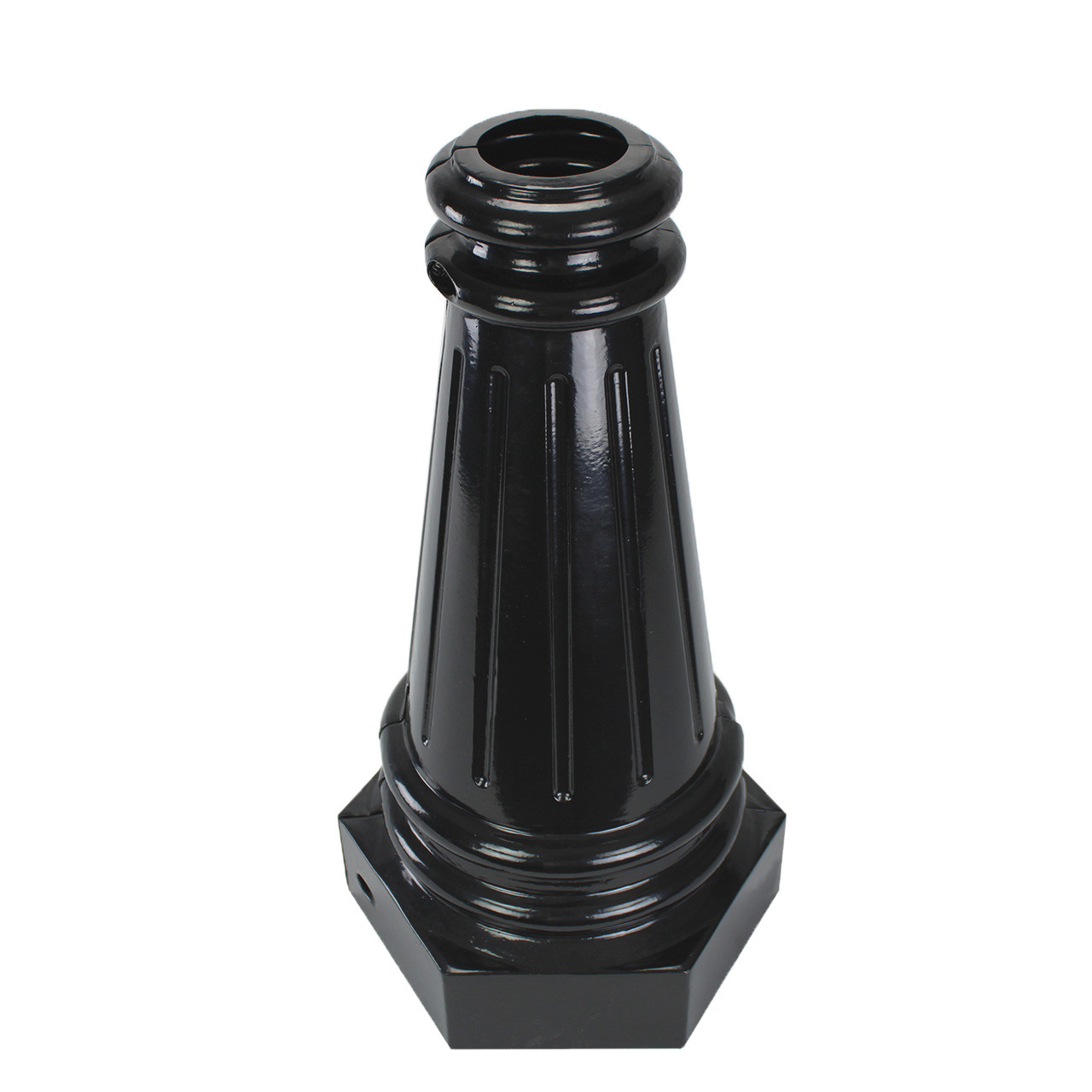

Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel, tamper-resistant screws are included for attachment.
Weight: 18 lbs.
Handhole: 2” X 4” size handhole is located at 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Color: Black powder coat.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Bolt Circle Range: 6 1/2″-8″
Maximum Load: Designed to support single light with a maximum weight of 40 lbs.
Warranty: 5 Years.
Use: To be used only as a light pole with single light fixture on top.
Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
