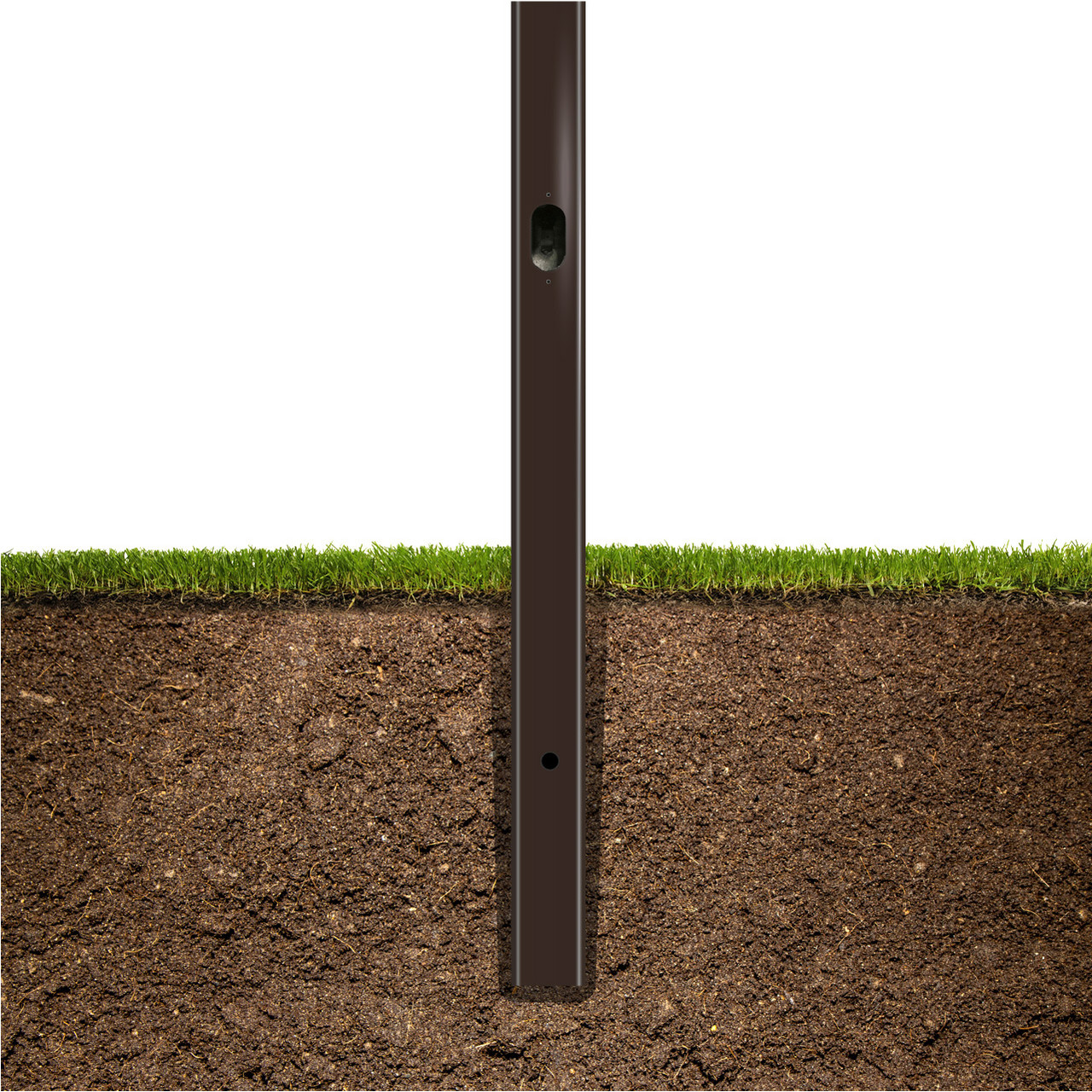

Square Direct Burial Aluminum Pole 16 Foot Above Grade, 4 Inch Width, 0.125 Inch Wall Thickness
$119.60–$149.40价格范围：$119.60 至 $149.40
At LightMart we carry Square Direct Burial Aluminum Light Pole 16 Foot Above Grade, 4 Inch Wide, 0.125 Inch Wall Thickness (16A4SS125DB), the pros choice!
Square Direct Burial Aluminum Light Pole, 16 Foot Above Grade, 4 Inch Width, 0.125 Inch Wall Thickness. Item Number: 16A4SS125DB
Pole Top Options: A removable pole cap or open top are standard options. Available tenon diameter options are: 2-3/8 in. or 3 in. Both tenon options are 4 in. long. Pole Shaft: 16 ft. height above ground, 4 in. square straight aluminum with 0.125 in. wall thickness. The pole shaft is constructed of seamless extruded tube of 6063 Series Aluminum Alloy per the requirements of ASTM B221. Handhole: 2 in. X 4 in. handhole is located 12 in. above ground. Handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole. Embedment: Embedment length is 4 ft. Wire access is provided in. below ground line. Finish: Commercial grade, super durable powder coat finish. Dark Bronze is standard color. Black, White, Gray colors are available with extended lead times and additional surcharge. Warranty: 5 Years. Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
POLE WIND RATING (EPA)
with 1.3 Gust Factor
POLE LENGTH AND WEIGHT
70 mph
80 mph
90 mph
100 mph
110 mph
Embedment (ft)
Total Length (ft)
Weight (lbs)
7.7
5.0
3.3
2.1
1.2
4
20
45
Color Options
Dark Bronze Powder Coat (Standard), Black Powder Coat, White Powder Coat, Gray Powder Coat
Pole Top Options
Top Cap – Standard, 2-3/8 Inch Tenon (Post Top), 3 Inch Tenon (Post Top), Drilled Single (A) (Select to view pole diagram), Drilled Twin (90°) (AB) (Select to view pole diagram), Drilled Twin (180°) (AC) (Select to view pole diagram), Drilled Triple (ABC) (Select to view pole diagram), Drilled Quad (ABCD) (Select to view pole diagram)
Shipping Surcharge Based On Quantity (CHARGES ADDED AT CHECKOUT)
1 Light Pole: + $345.00, 2-4 Light poles: (per pole), 5 or More Light Poles – Free Shipping
Shipping Surcharge Based on Delivery Location
Commercial address â No surcharge, Residential Address + $100.00
