Pole Top Options: Open top is standard. Removable top cap or tenons are available as options. Tenon options: 2-3/8”O.D. or 3” O.D. 4-inch height is standard
Pole Shaft: 4 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard pole height is 16 ft. Optional heights are 14, 12, 10 and 8 ft. Custom heights not exceeding 16 feet are available.
Handhole: 2 1/2” X 4” size handhole is located 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

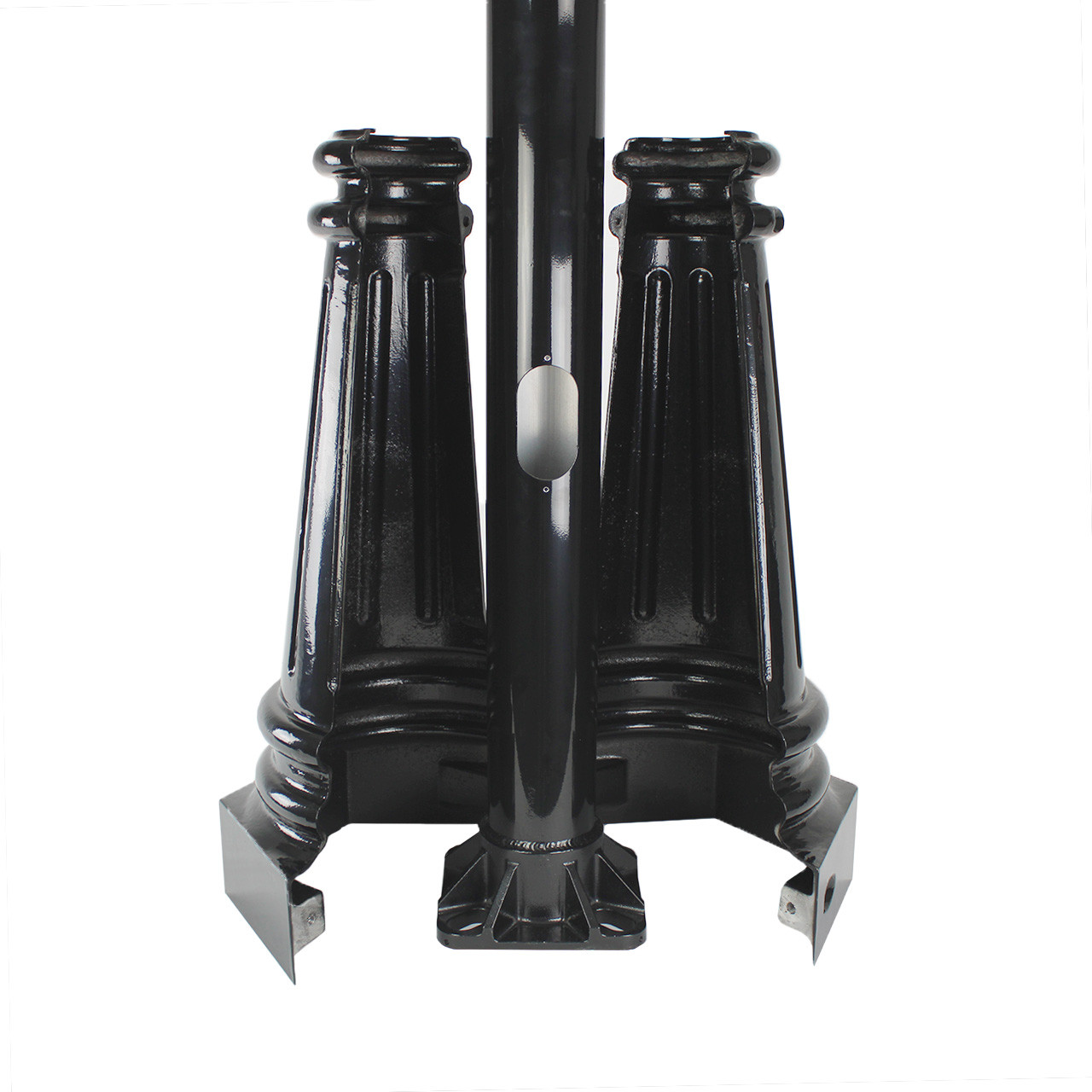

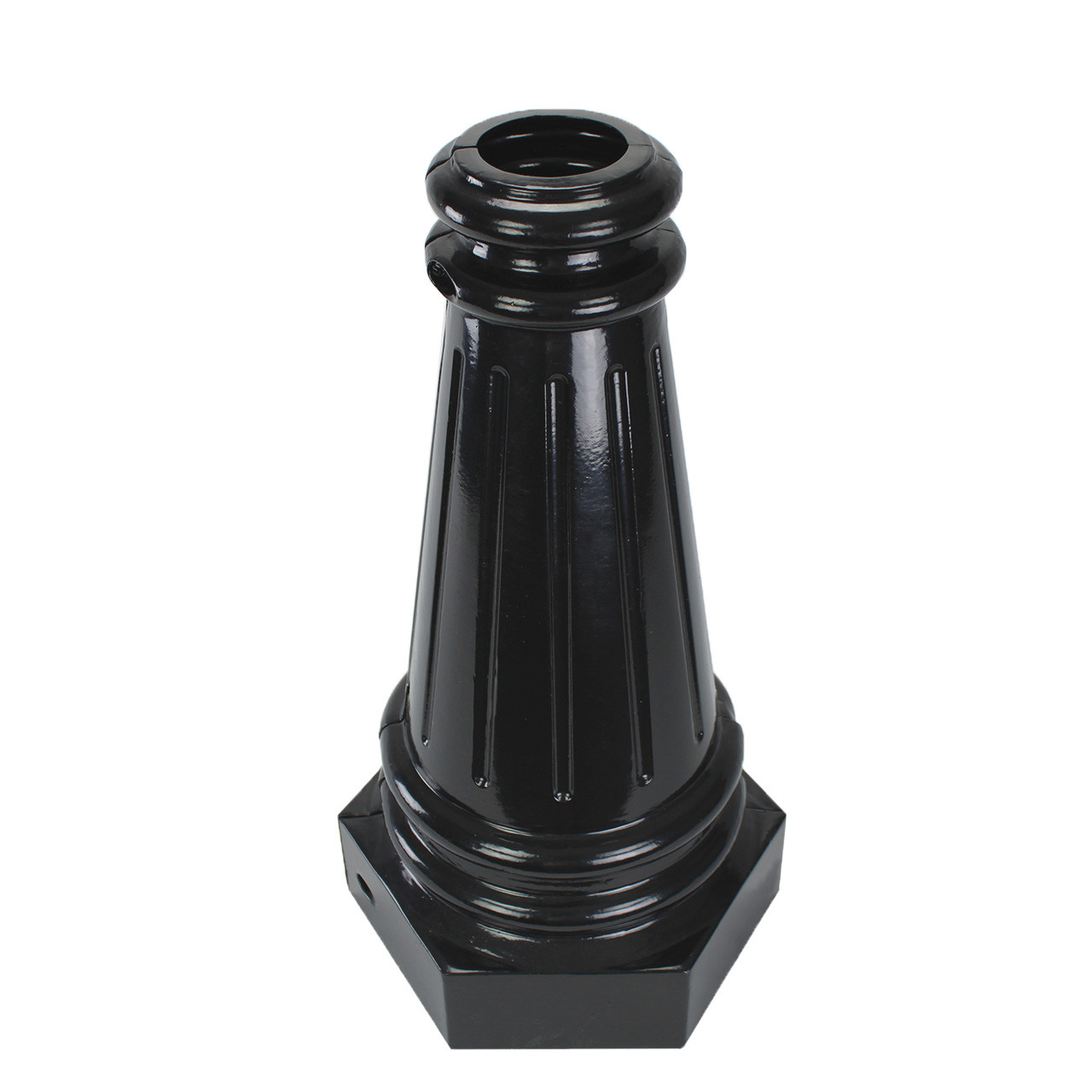

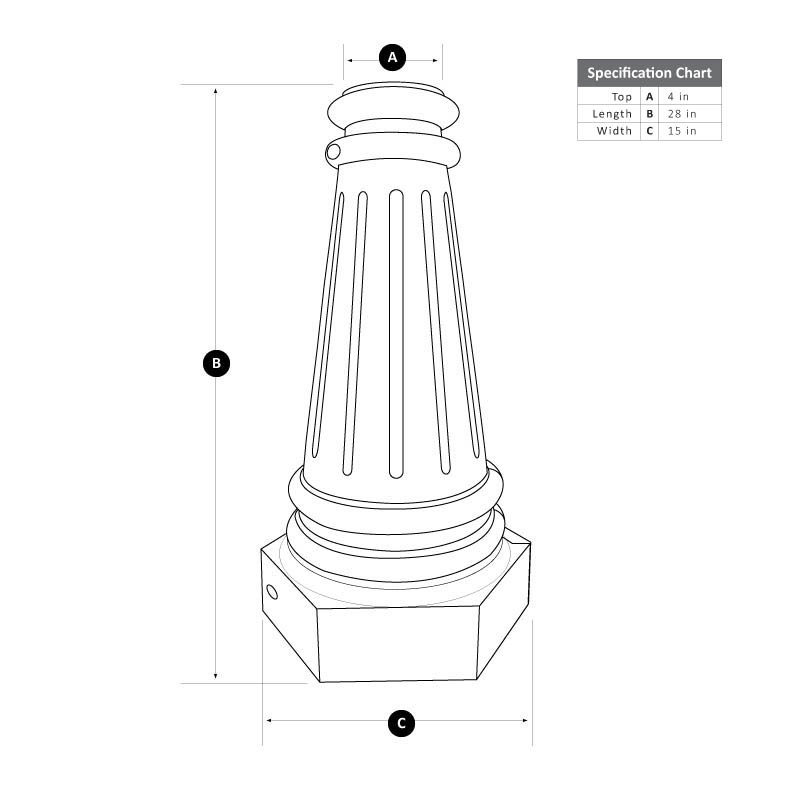

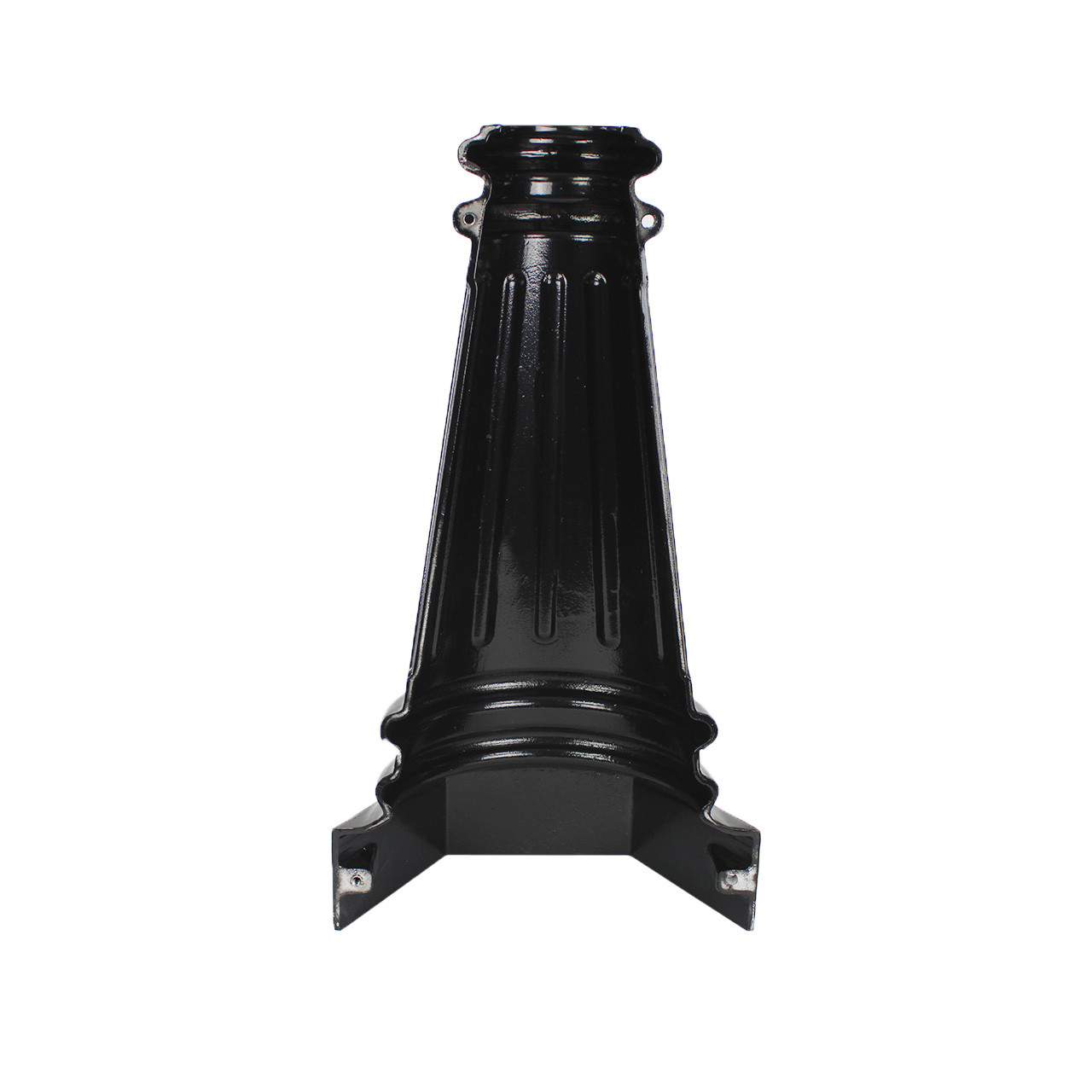

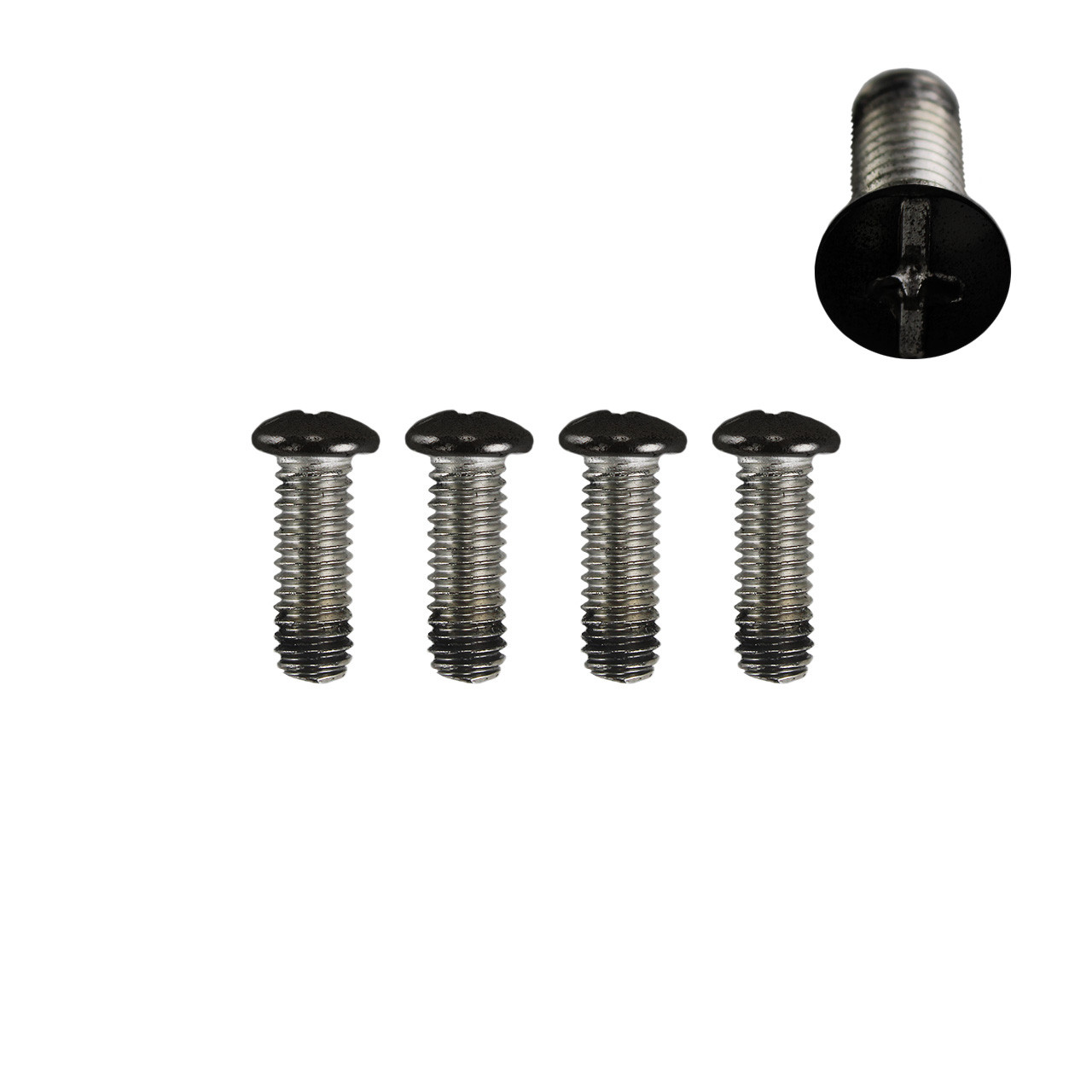

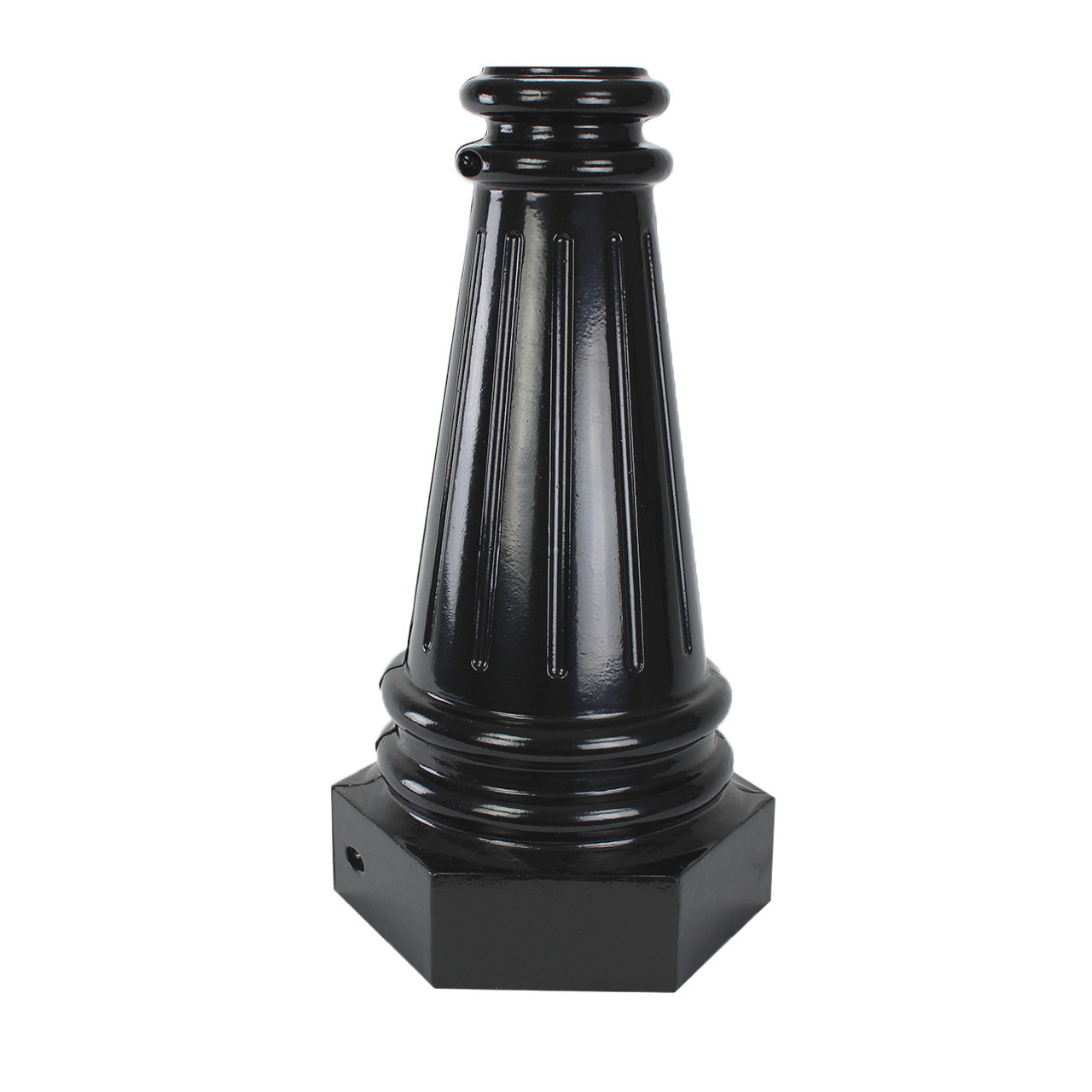

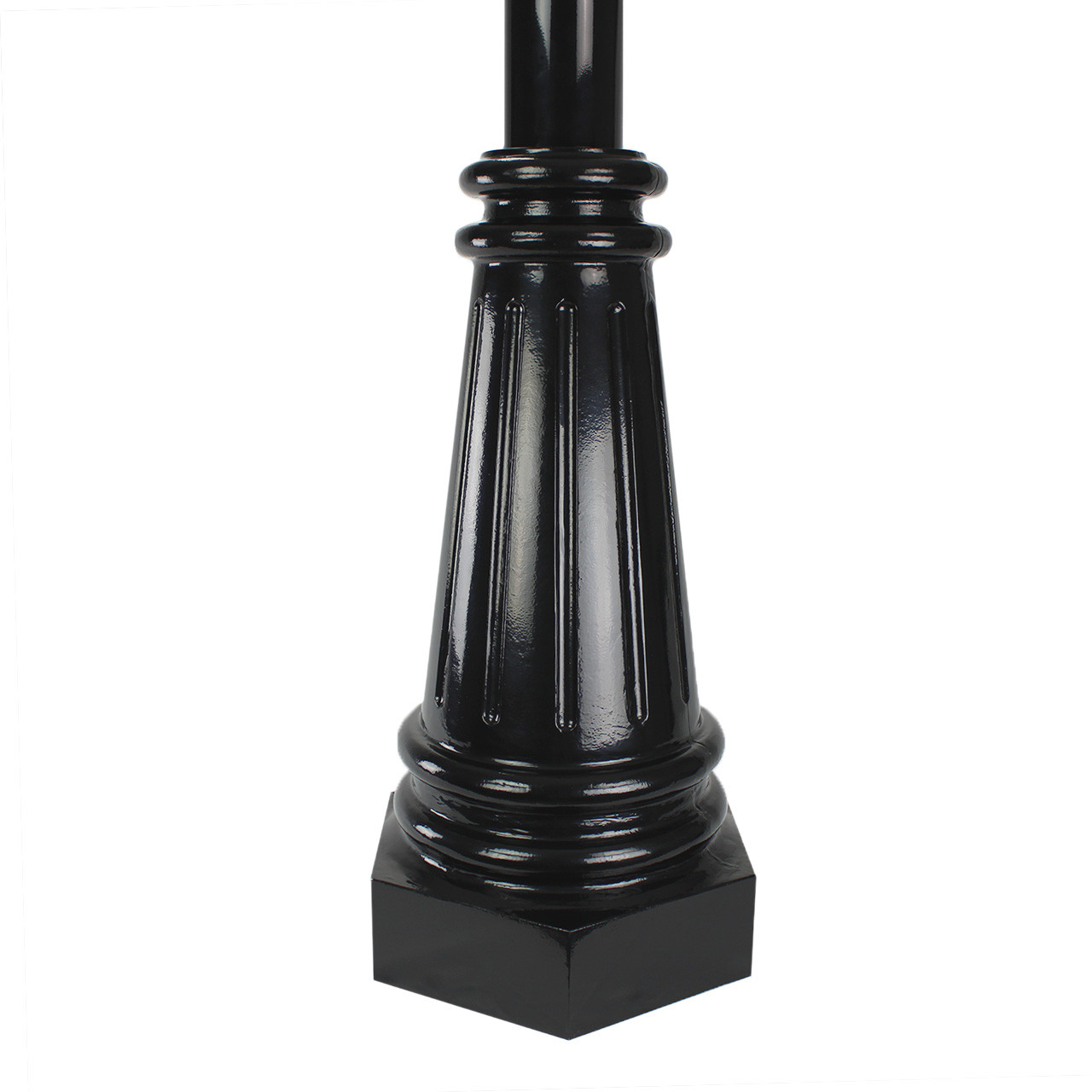

Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel (2 each for upper and lower halves) are provided to attach the base halves together for seamless look.
Weight: 20 lbs.
Color: Black powder coat.
Bolt Circle Range: 6 1/2″-8″
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Warranty: 5 Years.

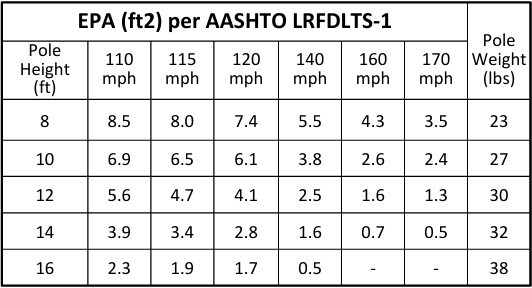

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
