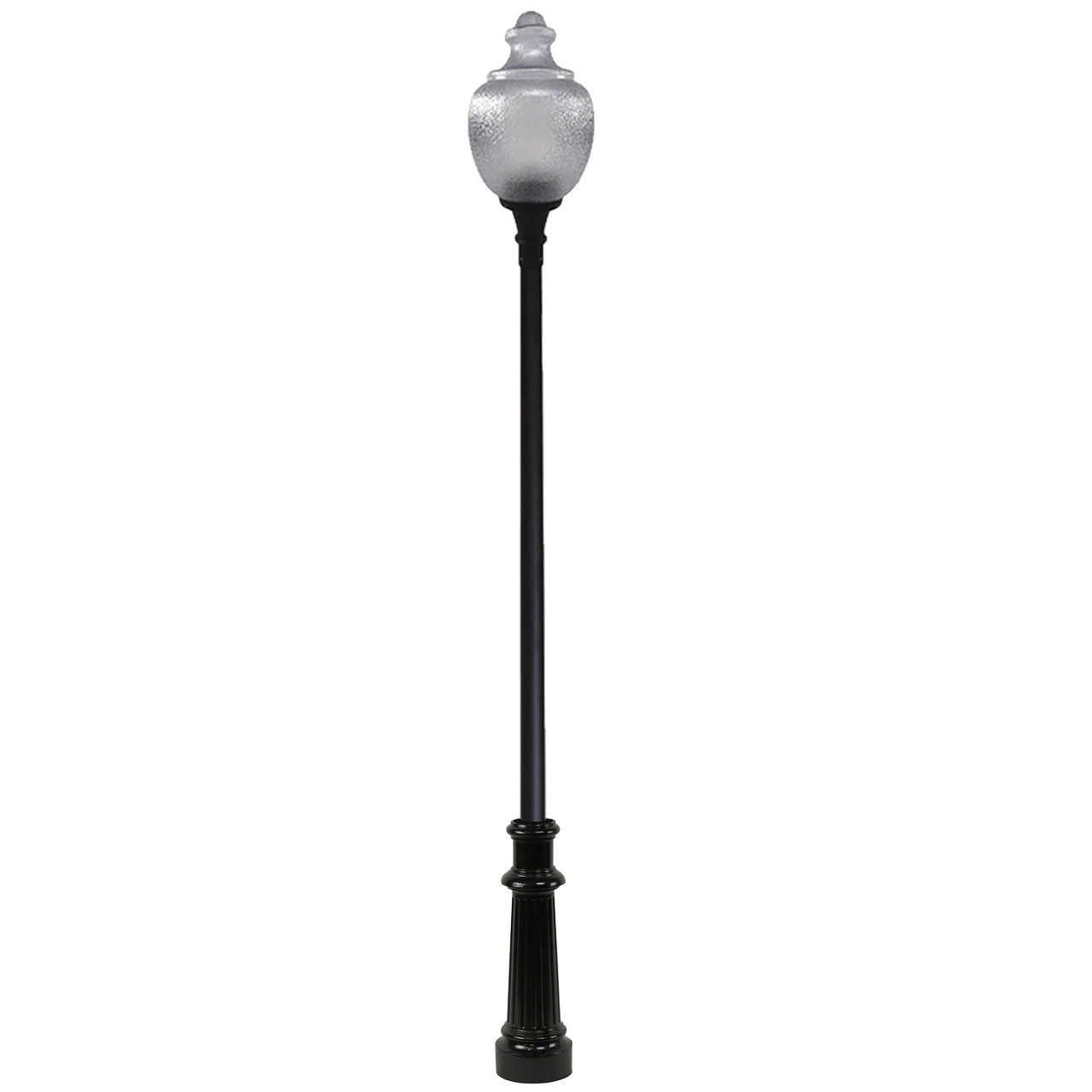

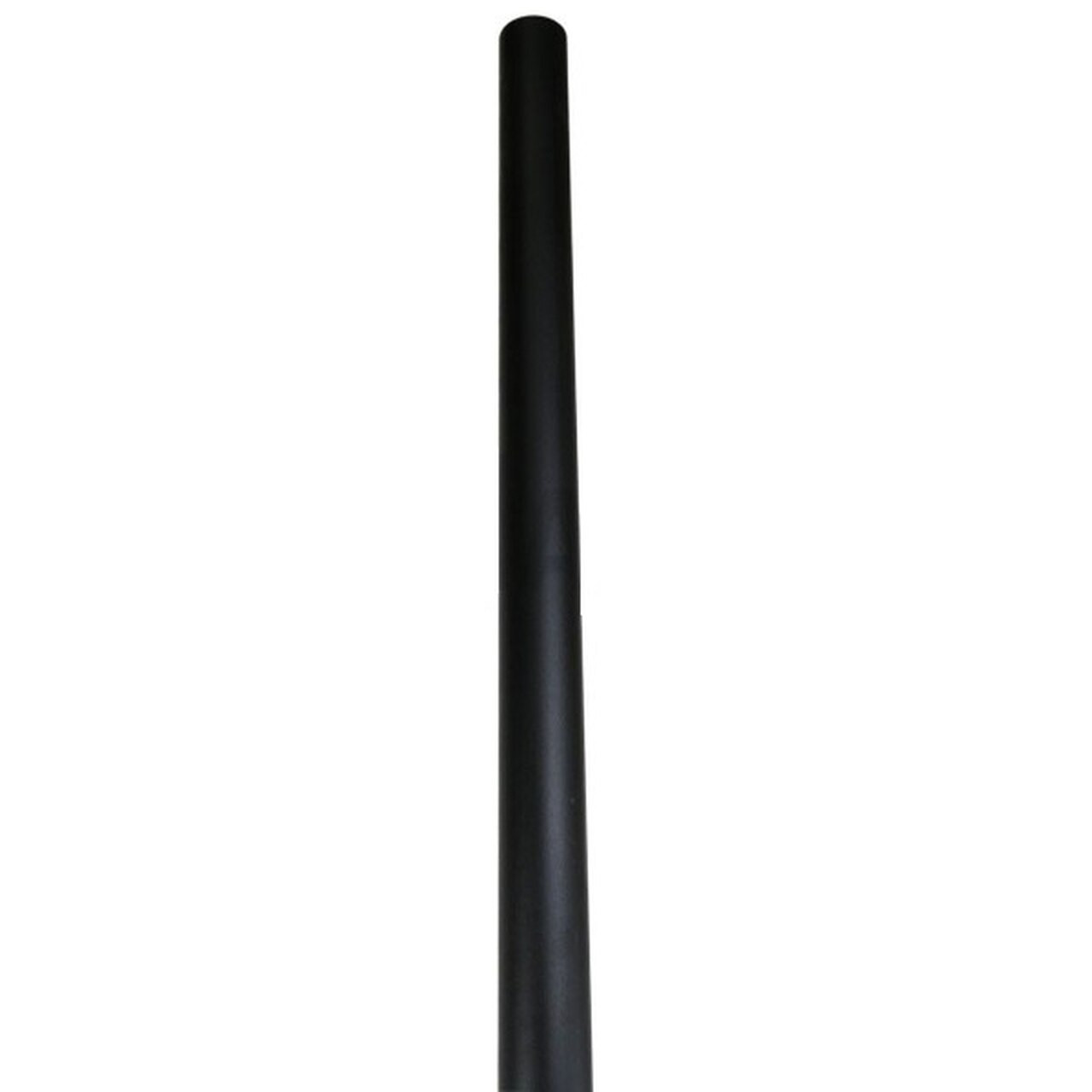

Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard above grade pole height is 15 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.

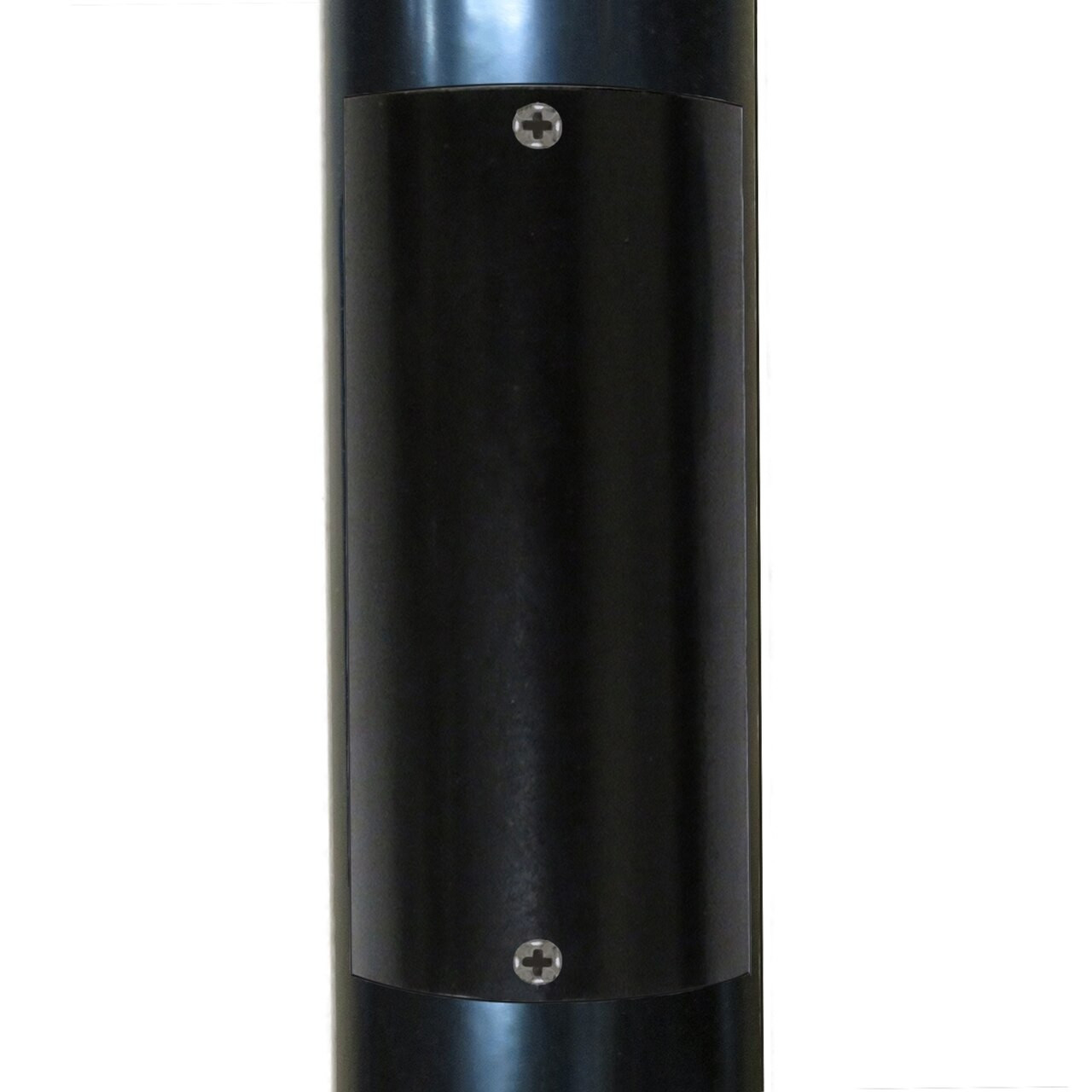

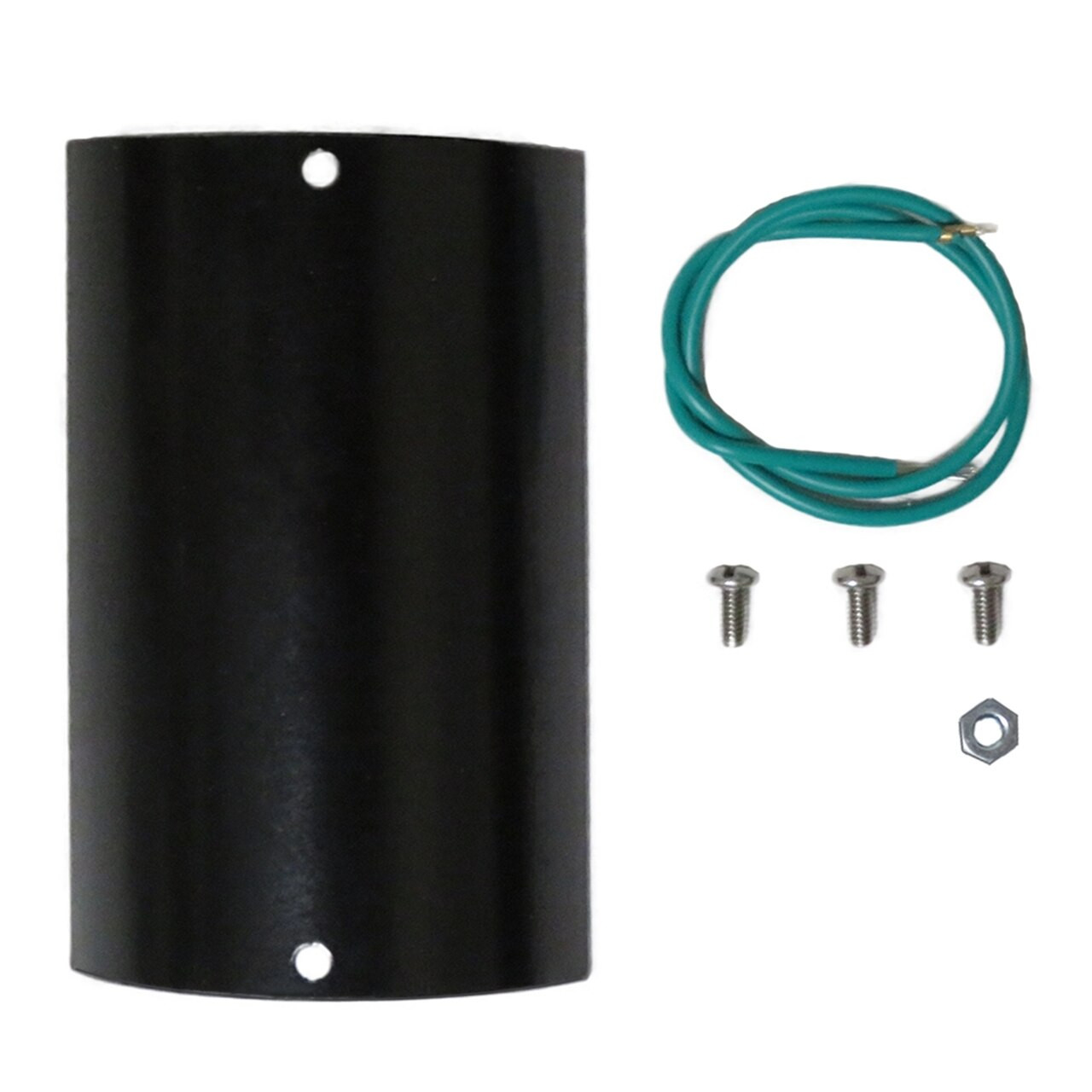

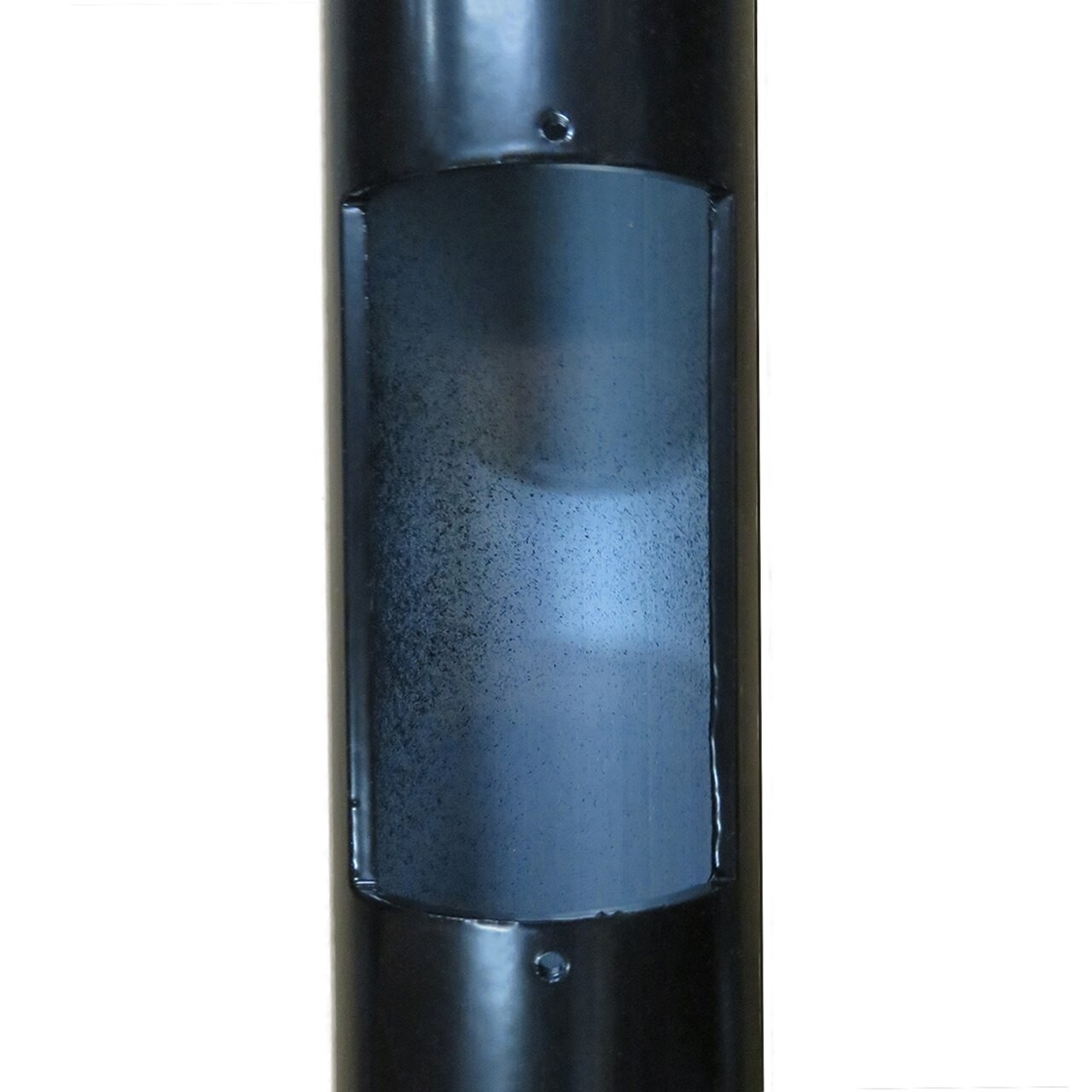

Handhole: 2” X 4” size handhole is located at 12” from the ground line. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

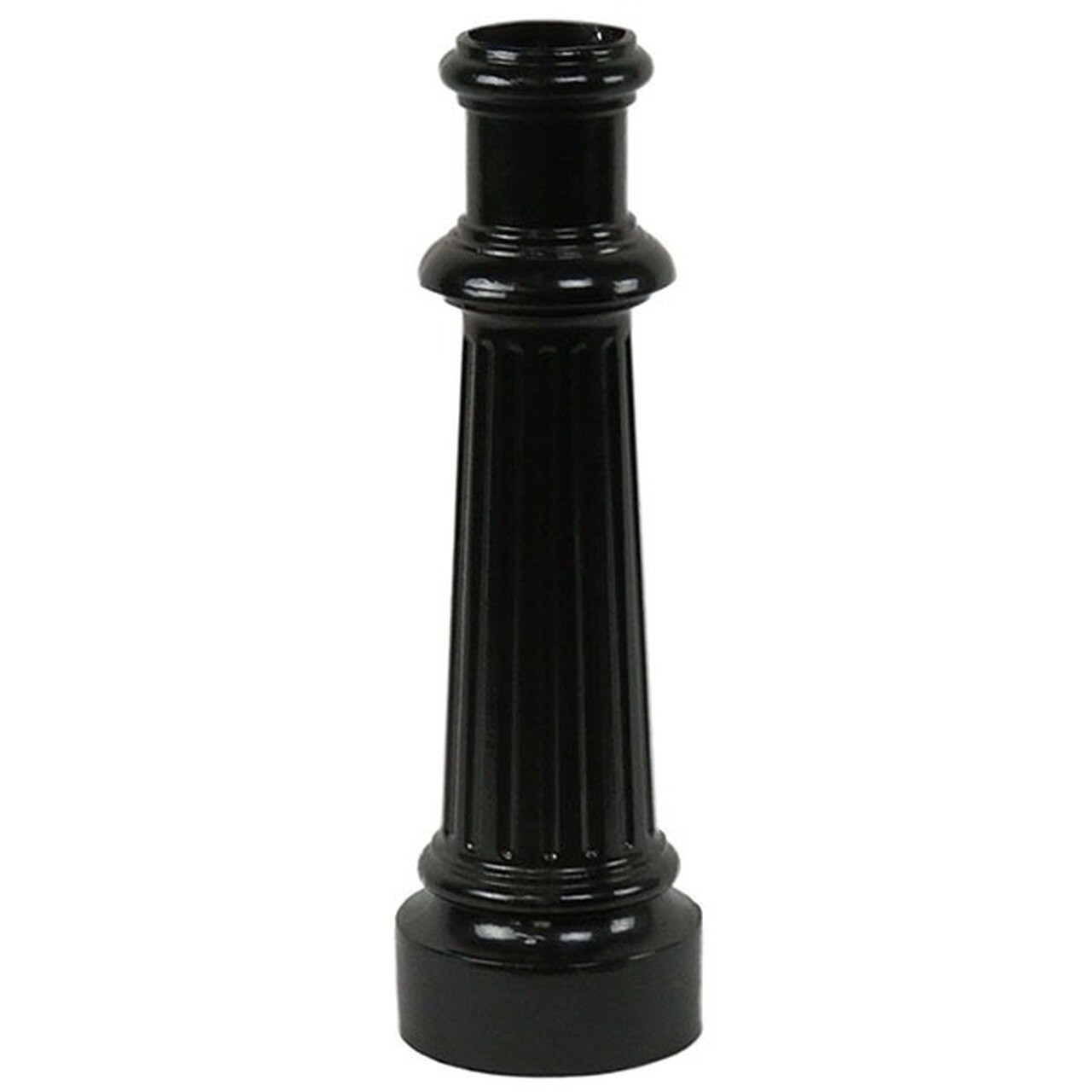

Decorative Base: One piece, slipover type cast aluminum material. Cast aluminum collar is included for proper fitment of 3” OD pole into the base. Attached to the pole with 3 set screws. Weight: 6 lbs.
Color: Black powder coat.
Embedment: Embedment length is 3 ft. for all pole heights. A 1-3/4” X 5 3/4” size slotted opening is provided 18 inches from the ground line for conduit entry.
Maximum Wind Rating: See light pole specification sheet.
Warranty: 5 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
ACORN FIXTURE

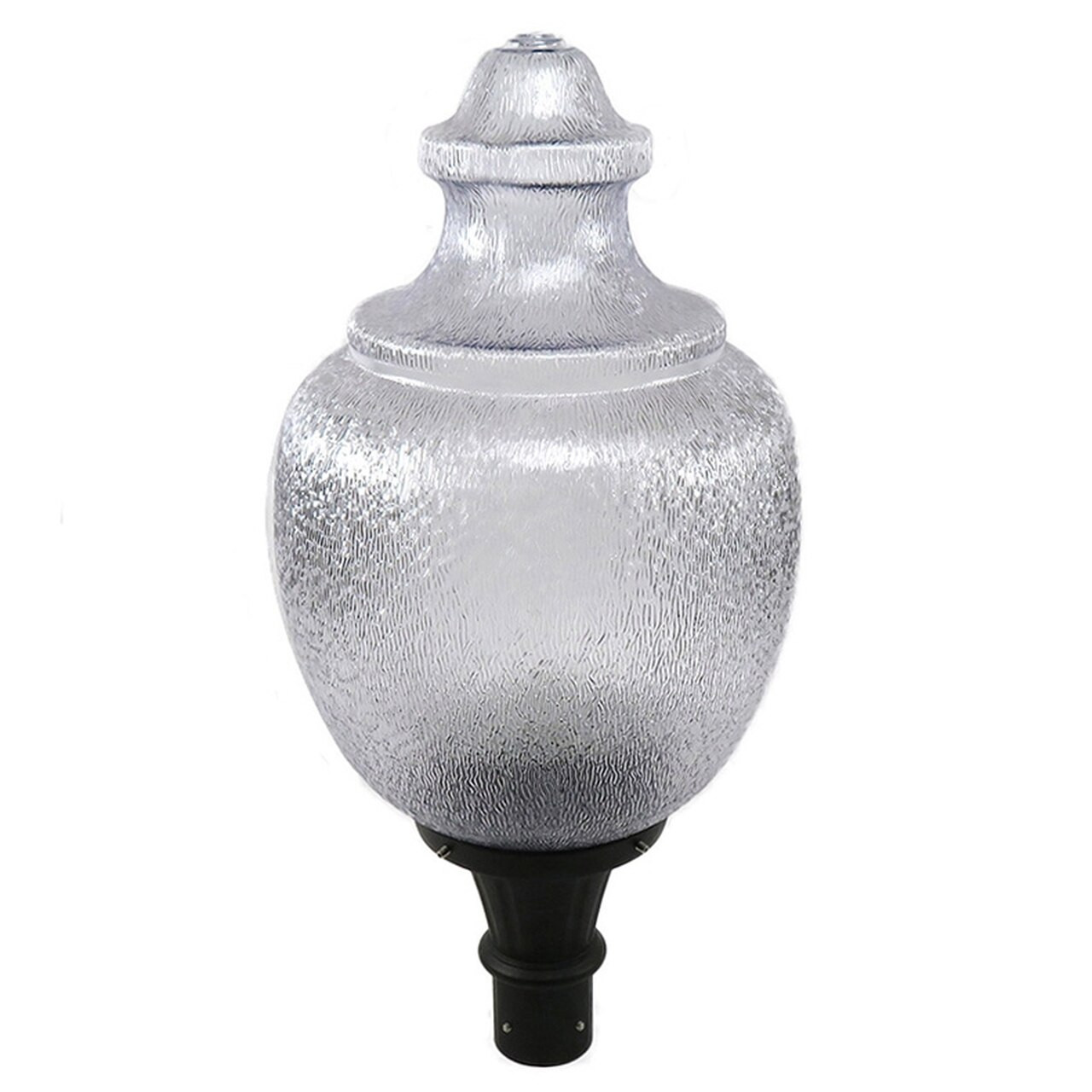

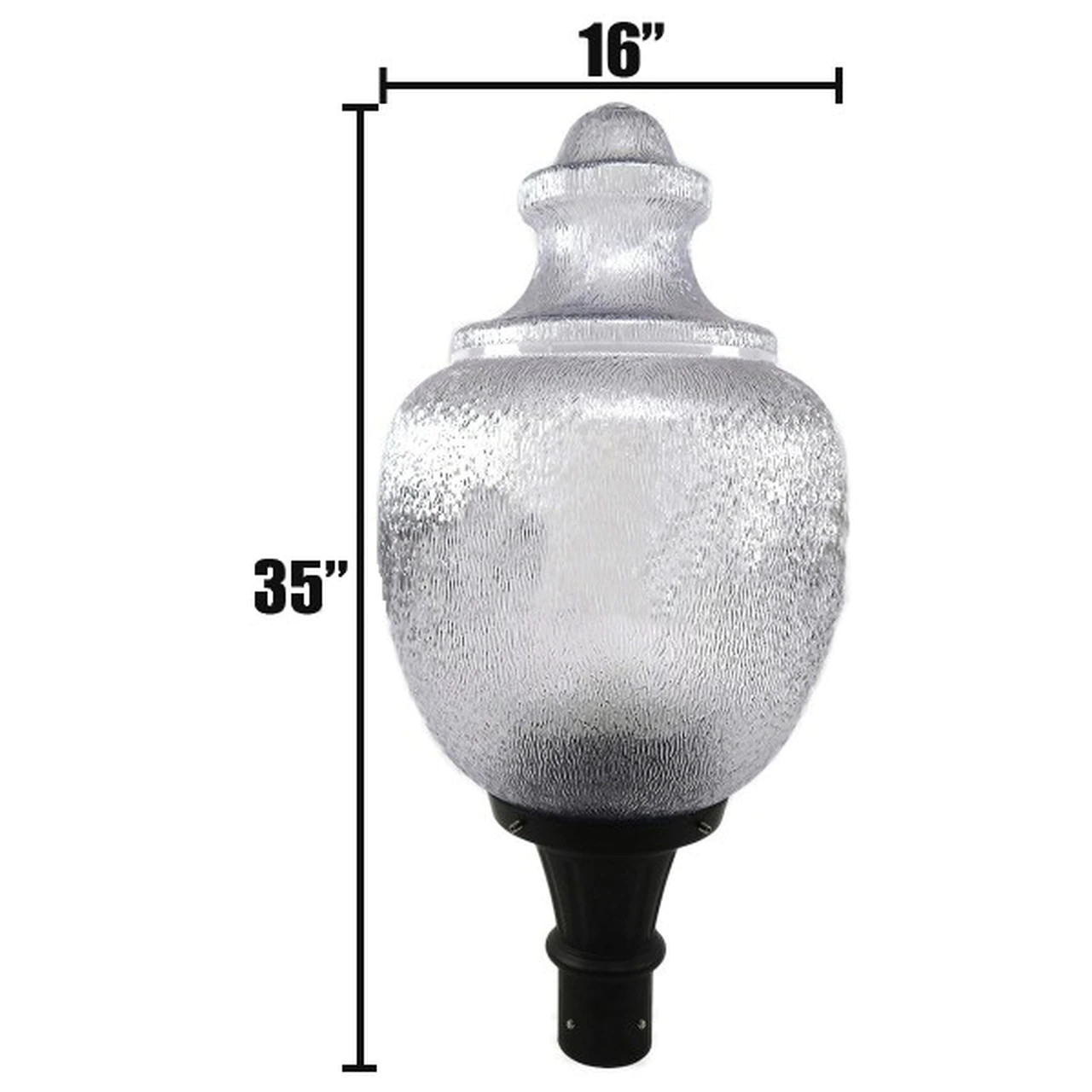

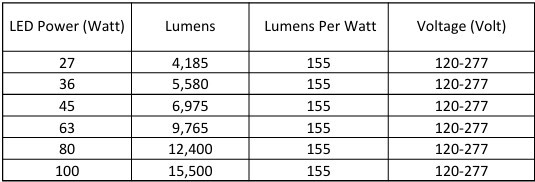

Standard LED Acorn Light Fixture: Textured clear polycarbonate acorn lens is attached to the cast aluminum base with 4 set screws. Cast aluminum base slips over top of the pole and is secured with 3 set screws. All LED power options include a Mogul socket.
