Pole Top Options: Open top is standard. Removable top cap or tenon is available as an option. 2-3/8” O.D. aluminum tenon is 4” high and is attached to the pole with 3 set screws.
Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.

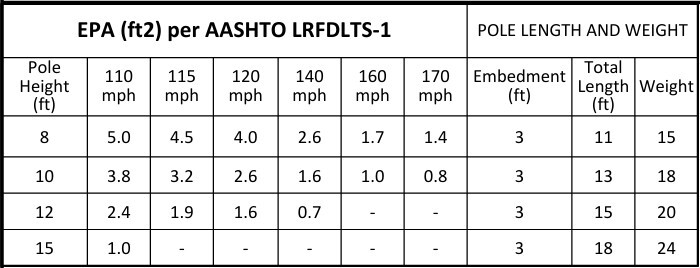

Pole Height: Standard above grade pole height is 15 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.

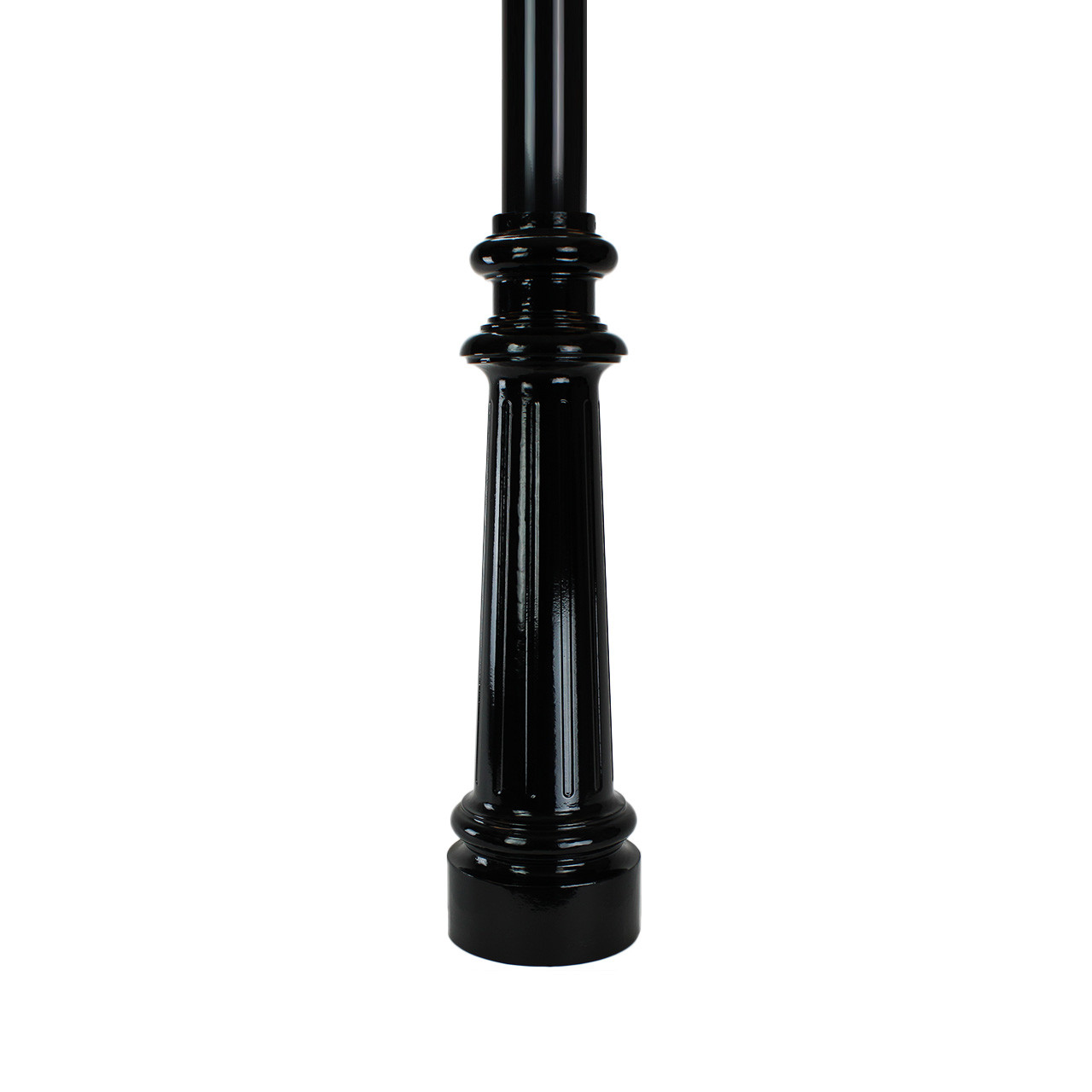

Decorative Base: One piece, slipover type cast aluminum material. Cast aluminum collar is included for proper fitment of 3” OD pole into the base. Attached to the pole with 3 set screws.
Weight: 15 lbs.
Handhole: 2” X 4” size handhole is located at 12” from the ground line. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Color: Black powder coat.
Embedment: Embedment length is 3 ft. for all pole heights. A 1-3/4” X 5 3/4” size slotted opening is provided 18 inches from the ground line for conduit entry.
Maximum Load: Designed to support a light with a maximum weight of 40 lbs.
Warranty: 5 Years.
Use: To be used only as a light pole with a single light fixture on top. Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
