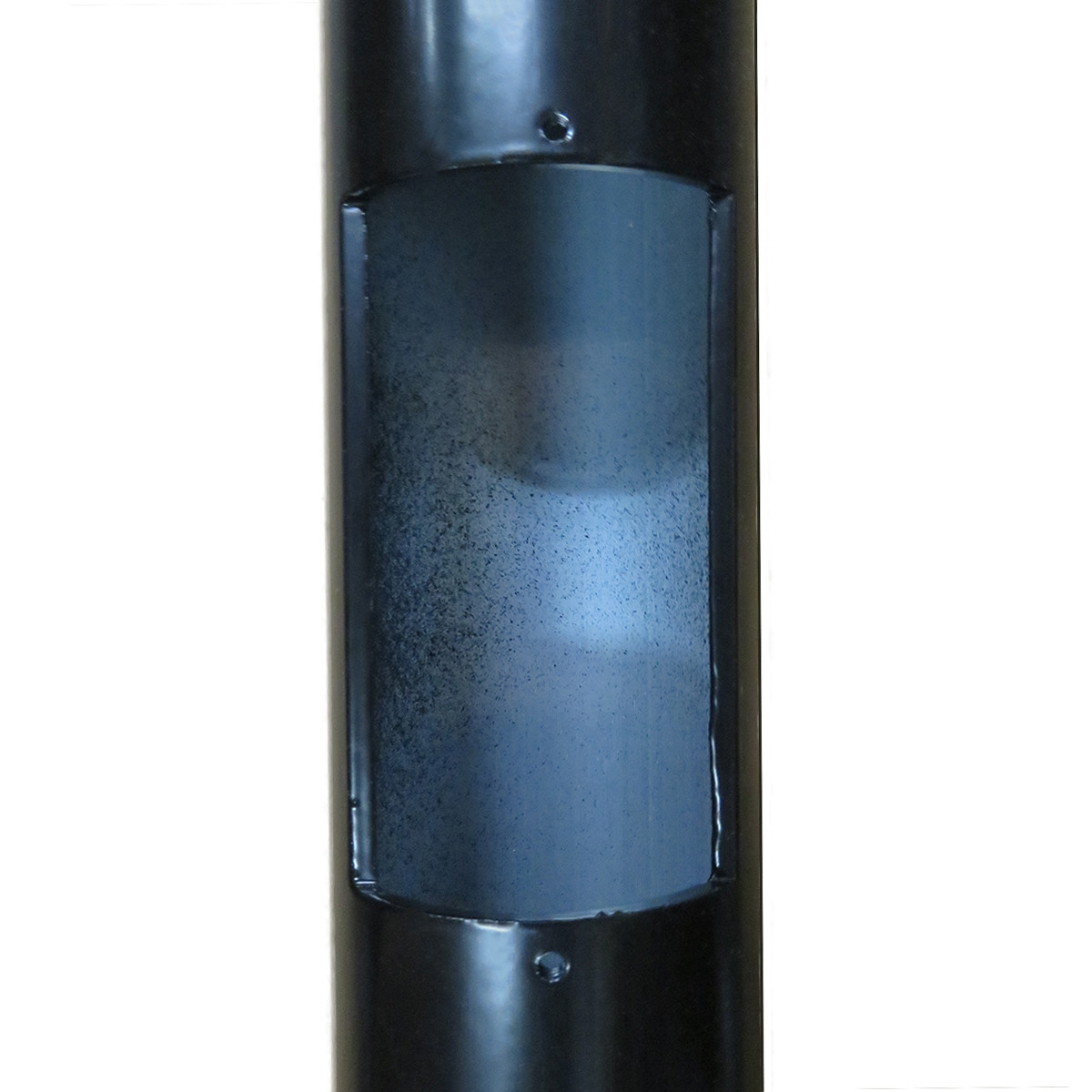

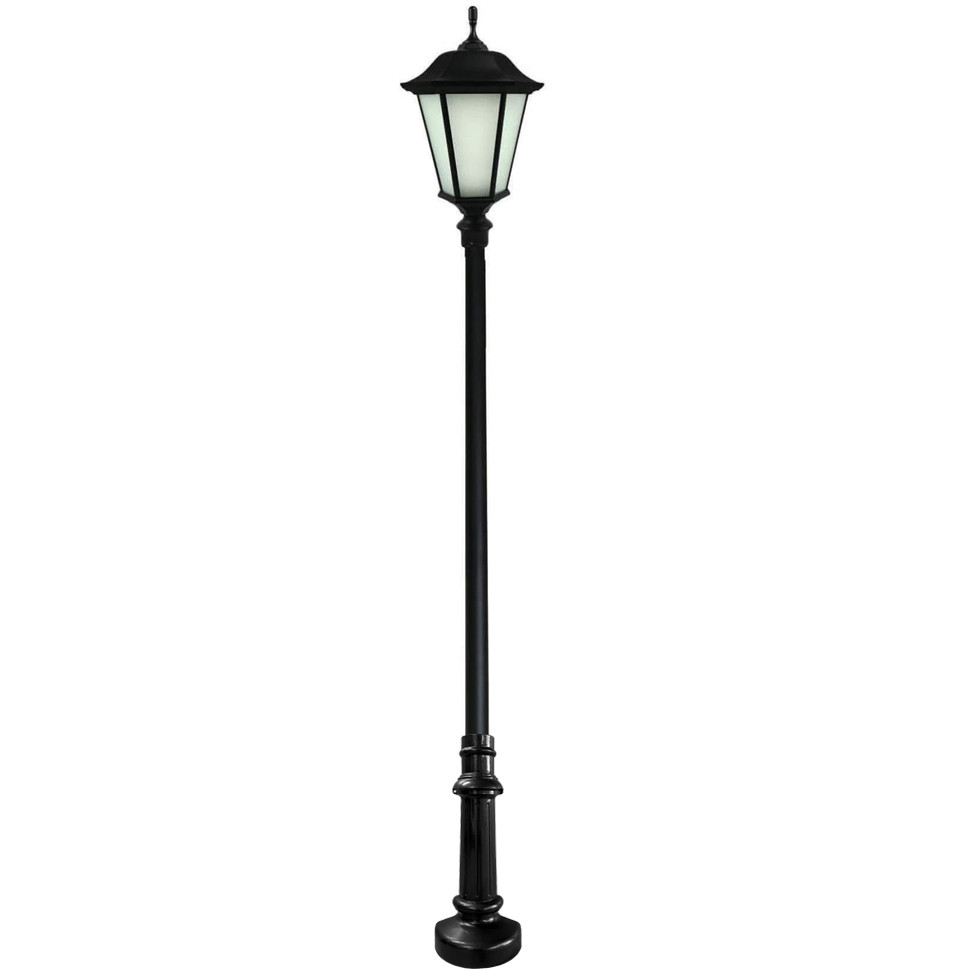

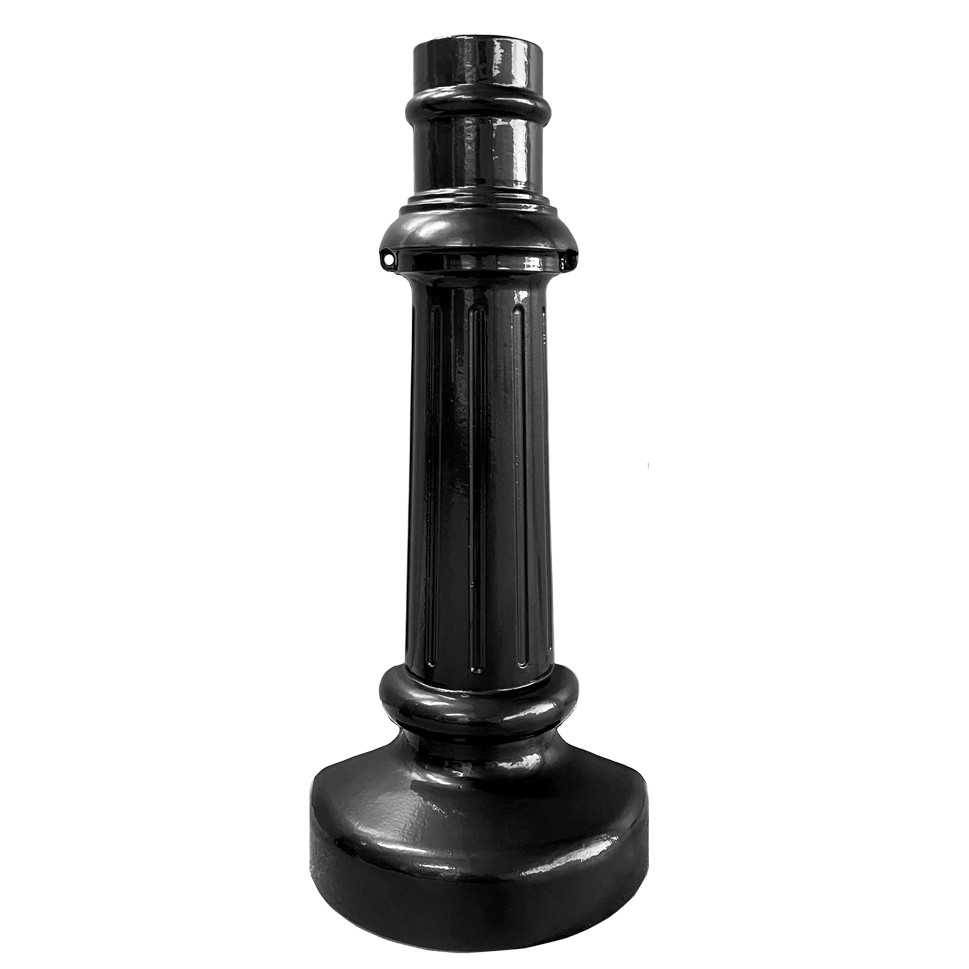

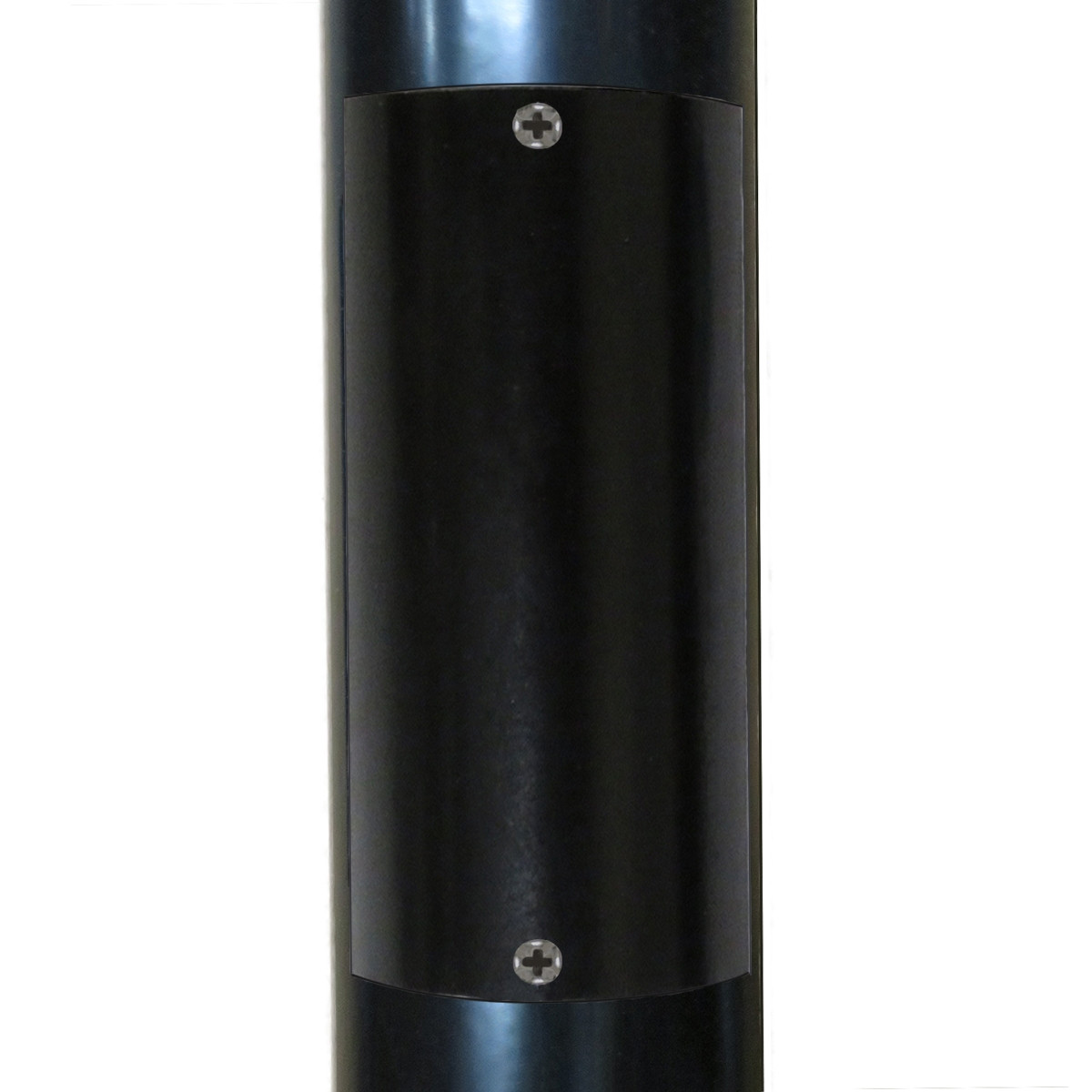

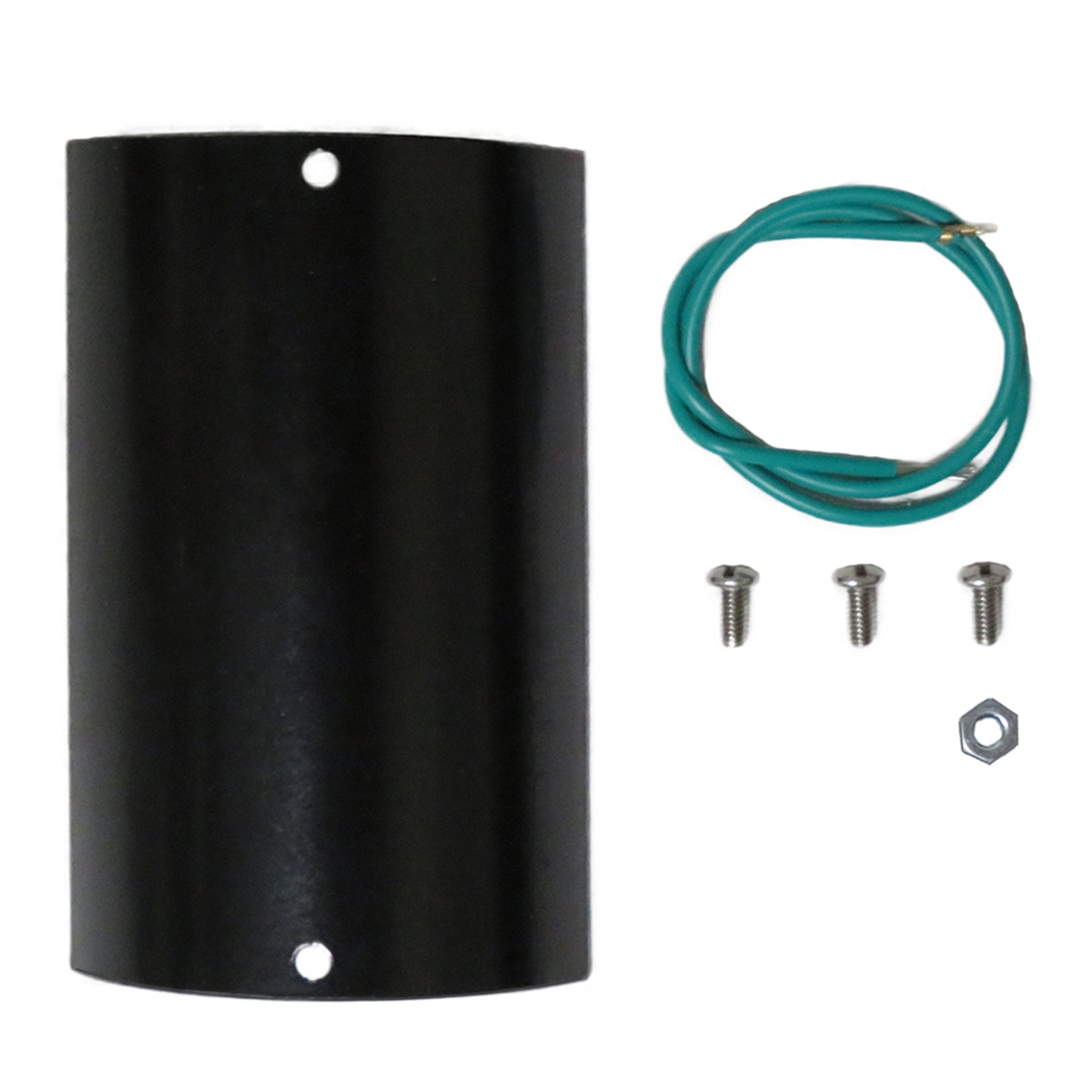

Pole Shaft: 4 inch round straight aluminum with 0.125″ wall thickness. Seamlessly extruded from 6063-T6 alloy. Pole Height: Standard above grade pole height is 16 ft. Optional heights are 14, 12, 10 and 8 ft. Custom heights are also available. Handhole: 2-1/2″ X 4″ size handhole is located at 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole. Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel, tamper-resistant screws are included for attachment. Weight: 17.5 lbs. Color: Black powder coat. Embedment: 4 ft. of embedment. A 1-3/4″ X 5-3/4″ size slotted opening is provided 18 inches from the ground line for conduit entry. Maximum Wind Rating: See light pole specification sheet. Warranty: 5 Years. Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.

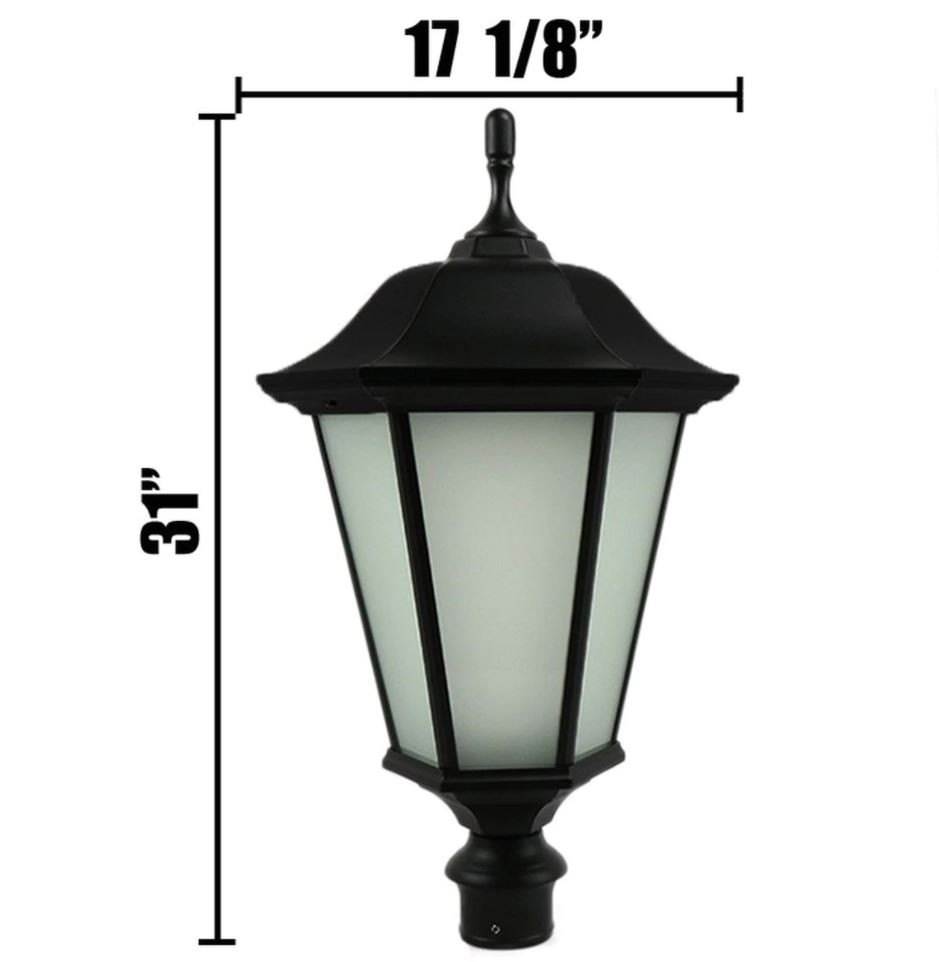

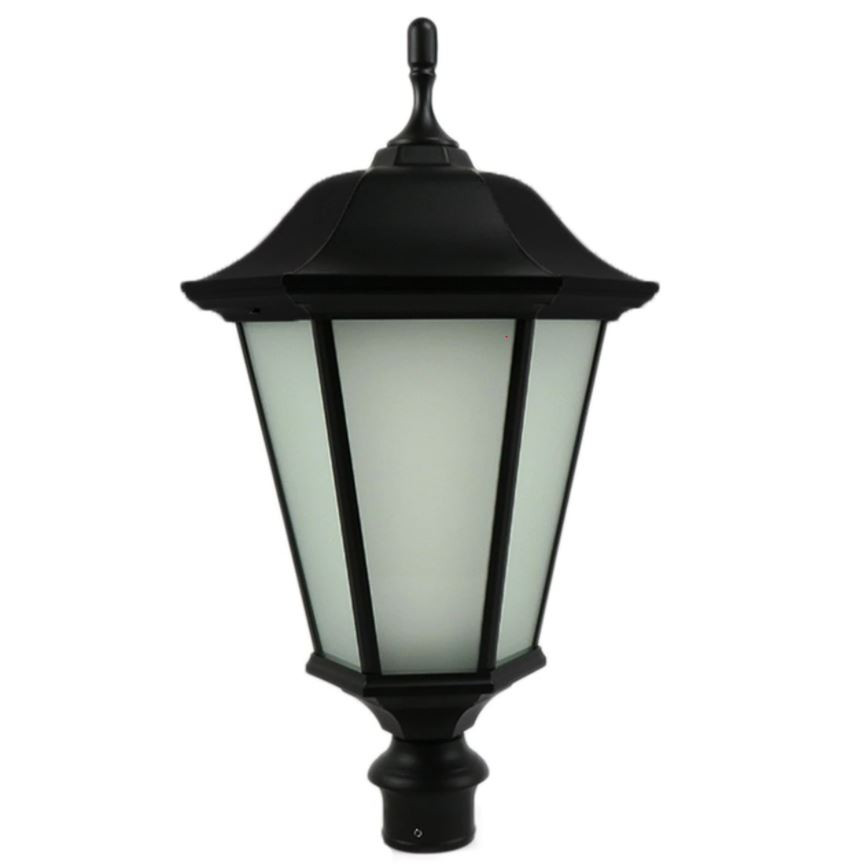

LANTERN FIXTURE
Cast aluminum frame features 6 frosted tempered glass lenses.

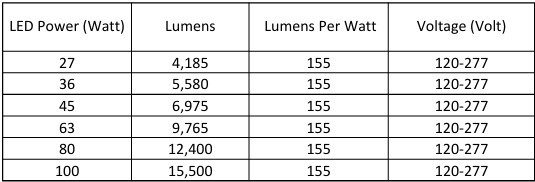

All LED power options include mogul socket.
Wet location rated.
3 stainless steel screws are provided for attachment to pole.
