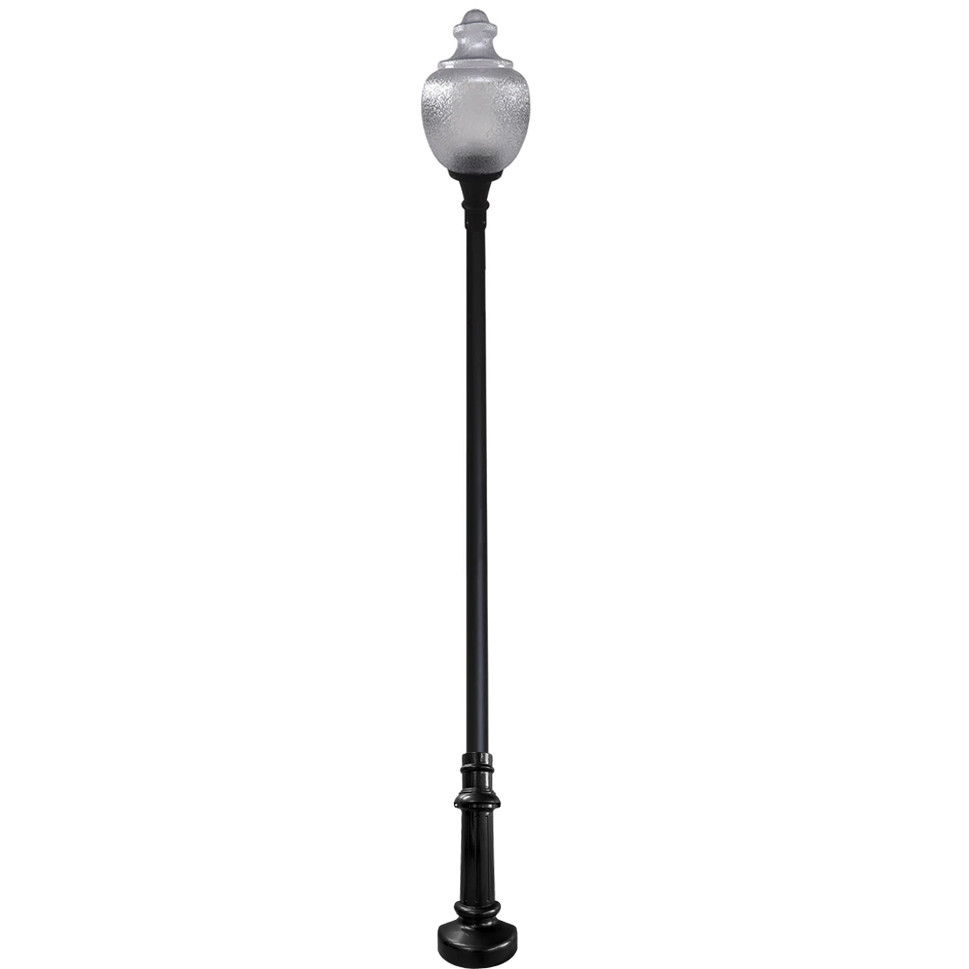

Worthington LED Light Pole Kit with Standard Acorn Fixture 4 Inch Diameter Light Pole – Anchor Based

LIGHT POLE

Pole Shaft: 4 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard pole height is 16 ft. Optional heights are 14, 12, 10 and 8 ft. Custom heights are also available.

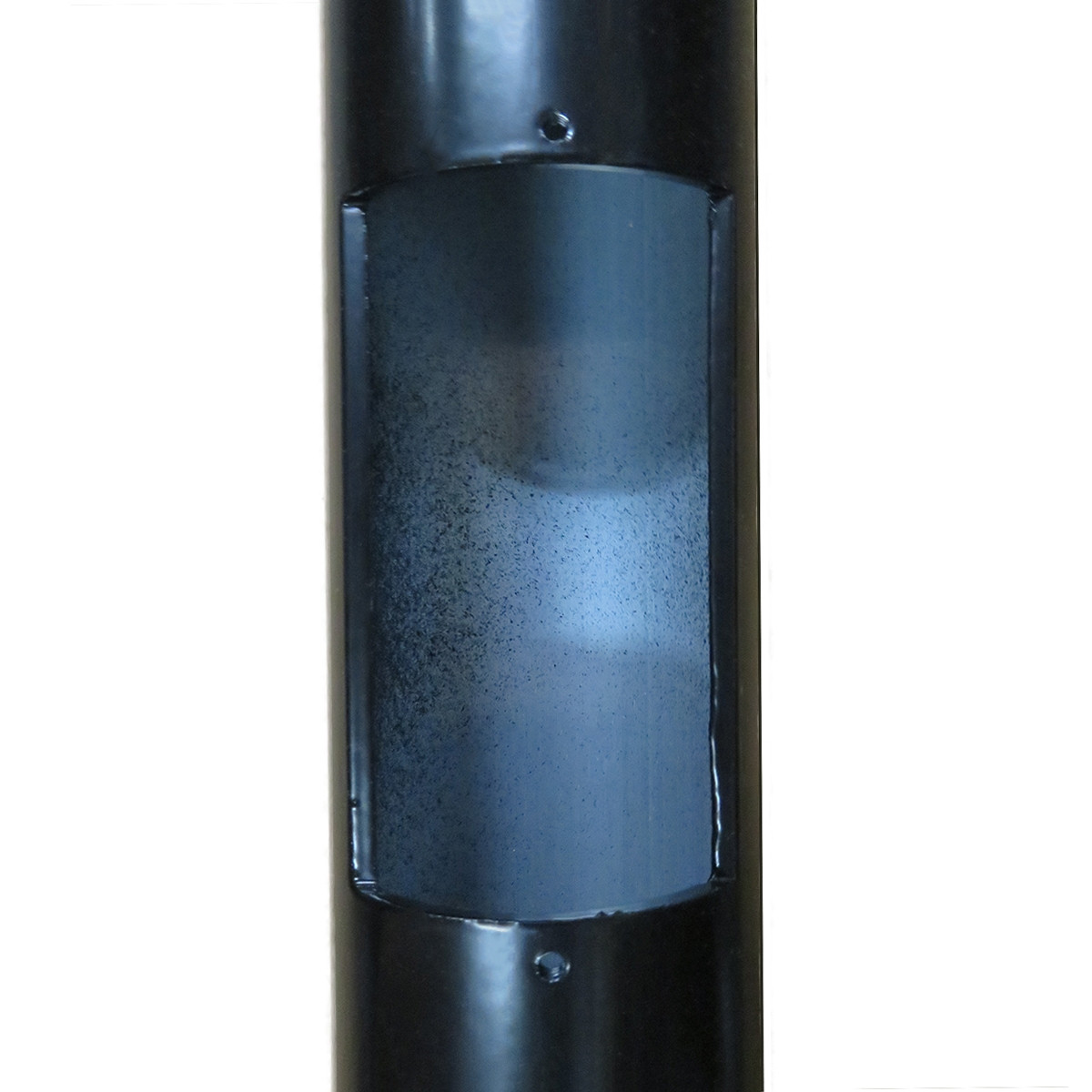

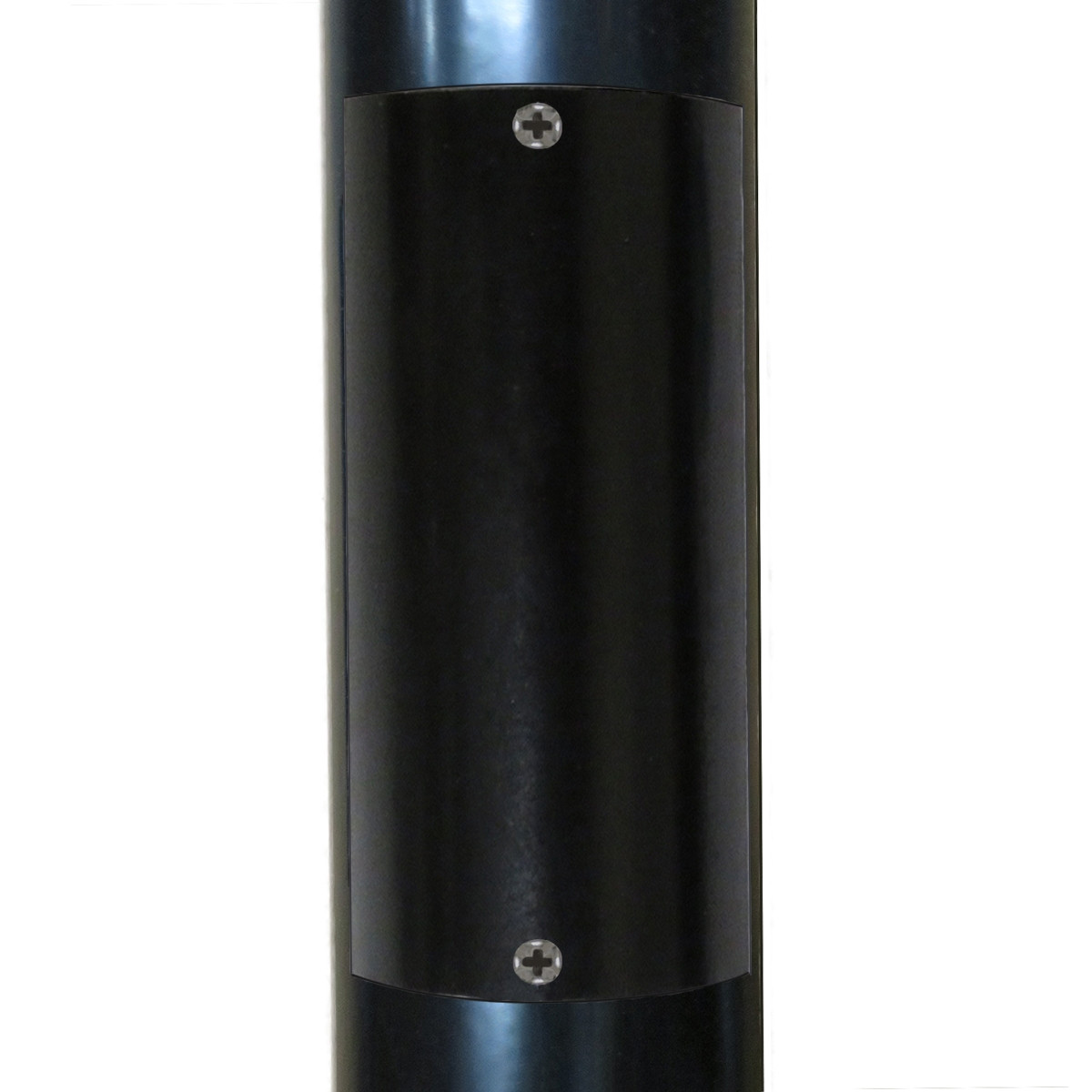

Handhole: 2-1/2” X 4” size handhole is located at 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

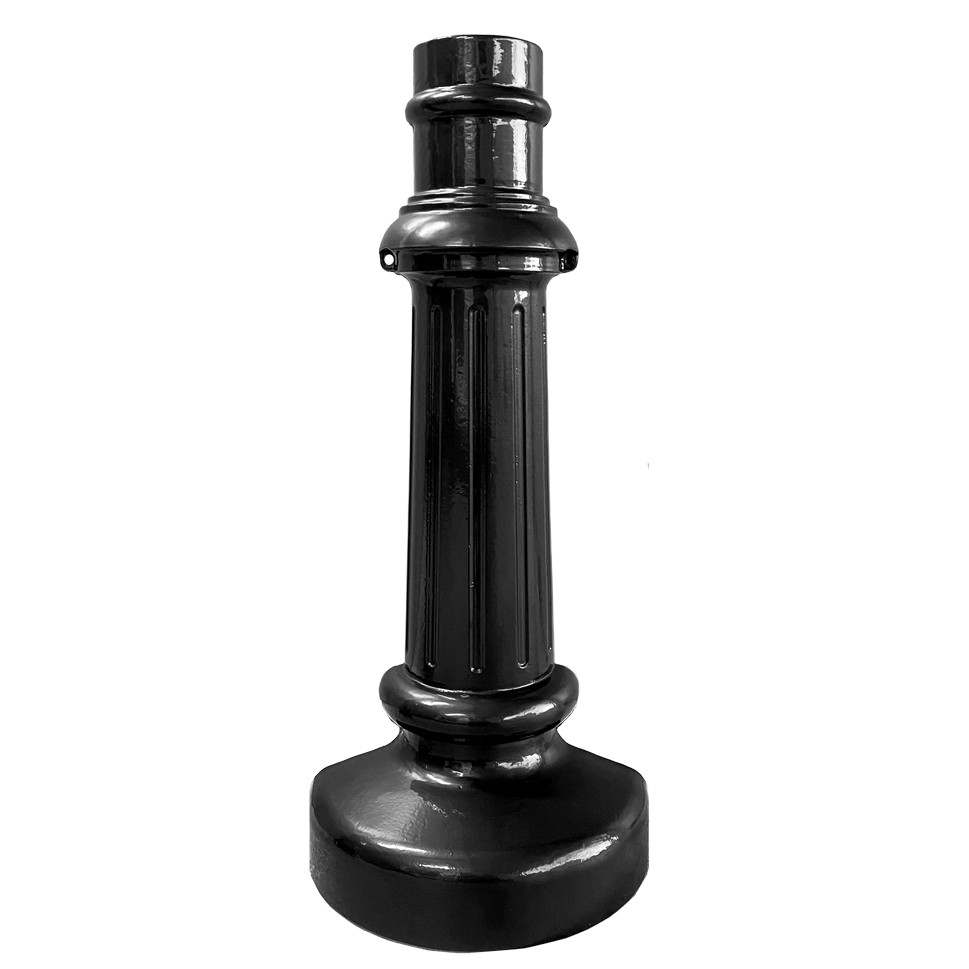

Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel, tamper-resistant screws are included for attachment.
Weight: 17.5 lbs.

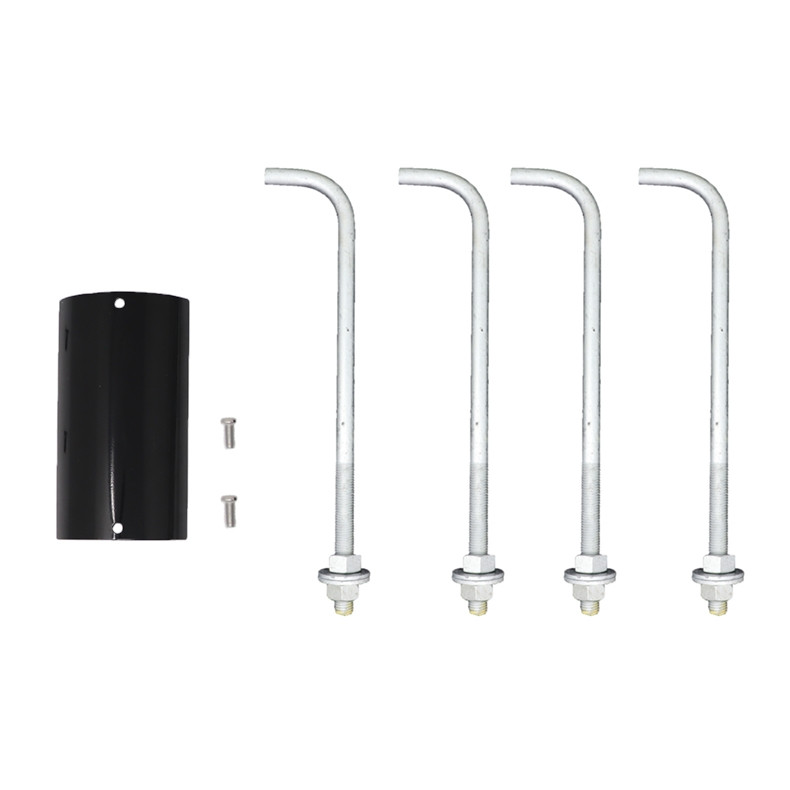

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Color: Black powder coat.
Maximum Wind Rating: See light pole specification sheet.
Warranty: 5 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.

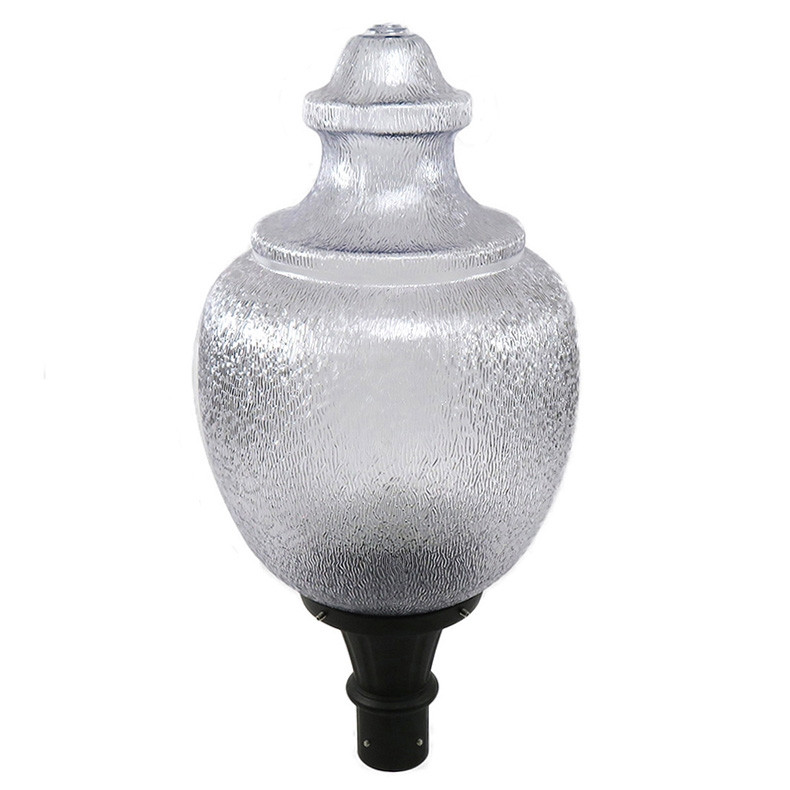

ACORN FIXTURE:

• Textured clear polycarbonate acorn lens is attached to the cast aluminum base with 4 set screws.
• Cast aluminum base slips over top of the pole and is secured with 3 set screws.

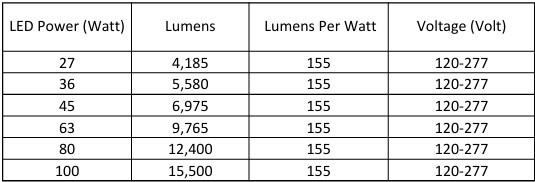

• All LED power options include a Mogul socket.
• Weight: 10 lbs.
