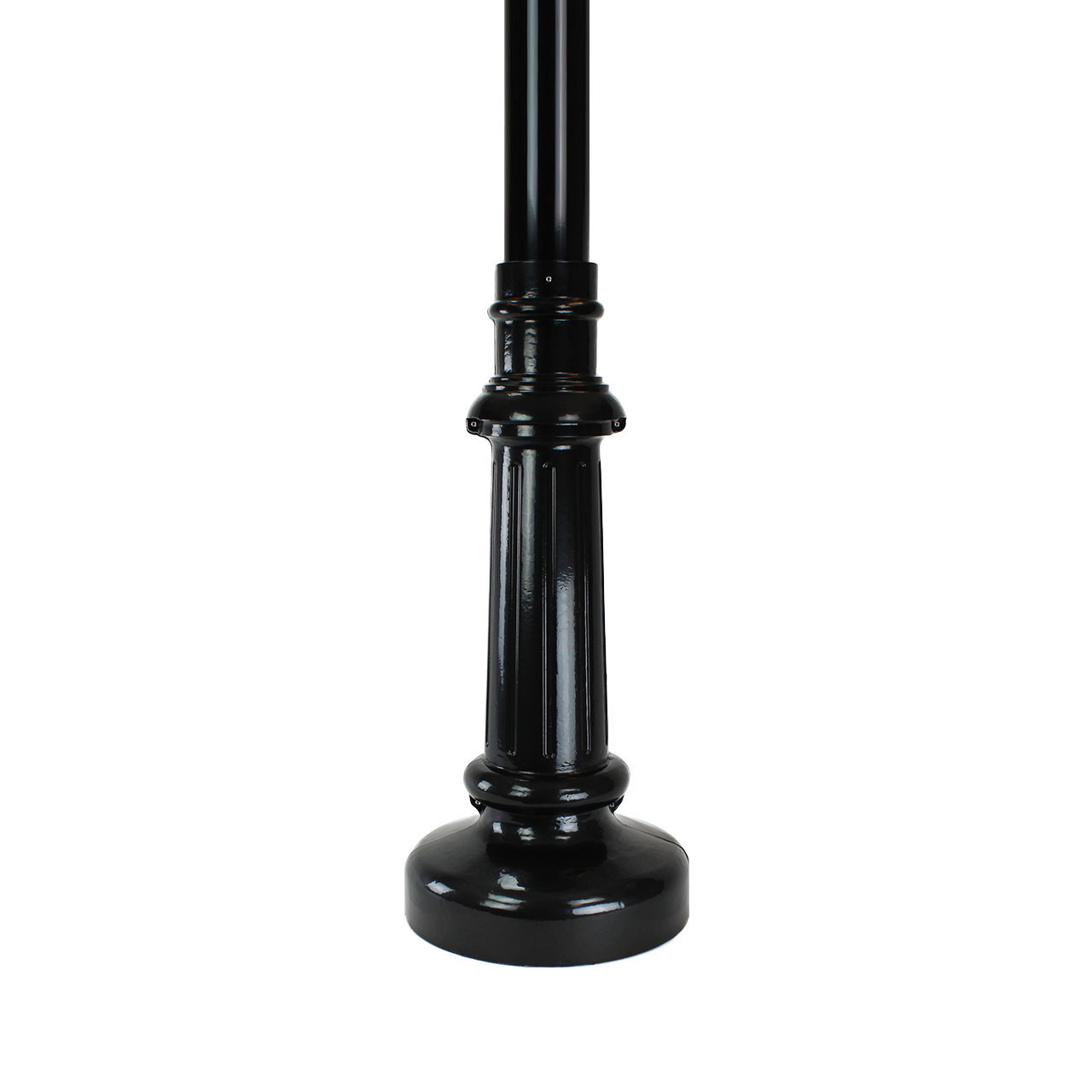

Worthington Series, 3 inch Round Aluminum Light Pole Assembly Anchor Base

Product Specifications:

• Pole Top Options: Open top is standard. Removable top cap or tenon is available as an option. 2-3/8” O.D. aluminum tenon is 4” high and is attached to the pole with 3 set screws.
• Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.
• Pole Height: Standard pole height is 14 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.
• Decorative Base: 2-piece, clamshell style cast aluminum material. Cast aluminum collar is included for proper fitment of 3” OD pole into the base. 4 stainless steel, tamper-resistant screws are included for attachment. Weight: 17.5 lbs.
• Handhole: 2” X 4” size handhole is located at 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
• Color: Black powder coat.
• Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
• Bolt Circle Range: 6 1/2″-8″
• Maximum Load: Designed to support single light with a maximum weight of 40 lbs.
• Warranty: 5 Years.
• Use: To be used only as a light pole with single light fixture on top. Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
