Pole Top Options: Open top is standard. Removable top cap or tenons are available as options. Tenon options: 2-3/8″O.D. or 3″ O.D. 4 inch height is standard.
Pole Shaft: 4 inch round straight aluminum with 0.125″ wall thickness. Seamlessly extruded from 6063-T6 alloy.
Pole Height: Standard pole height is 16 ft. Optional heights are 14,12,10 and 8 ft. Custom heights are also available.

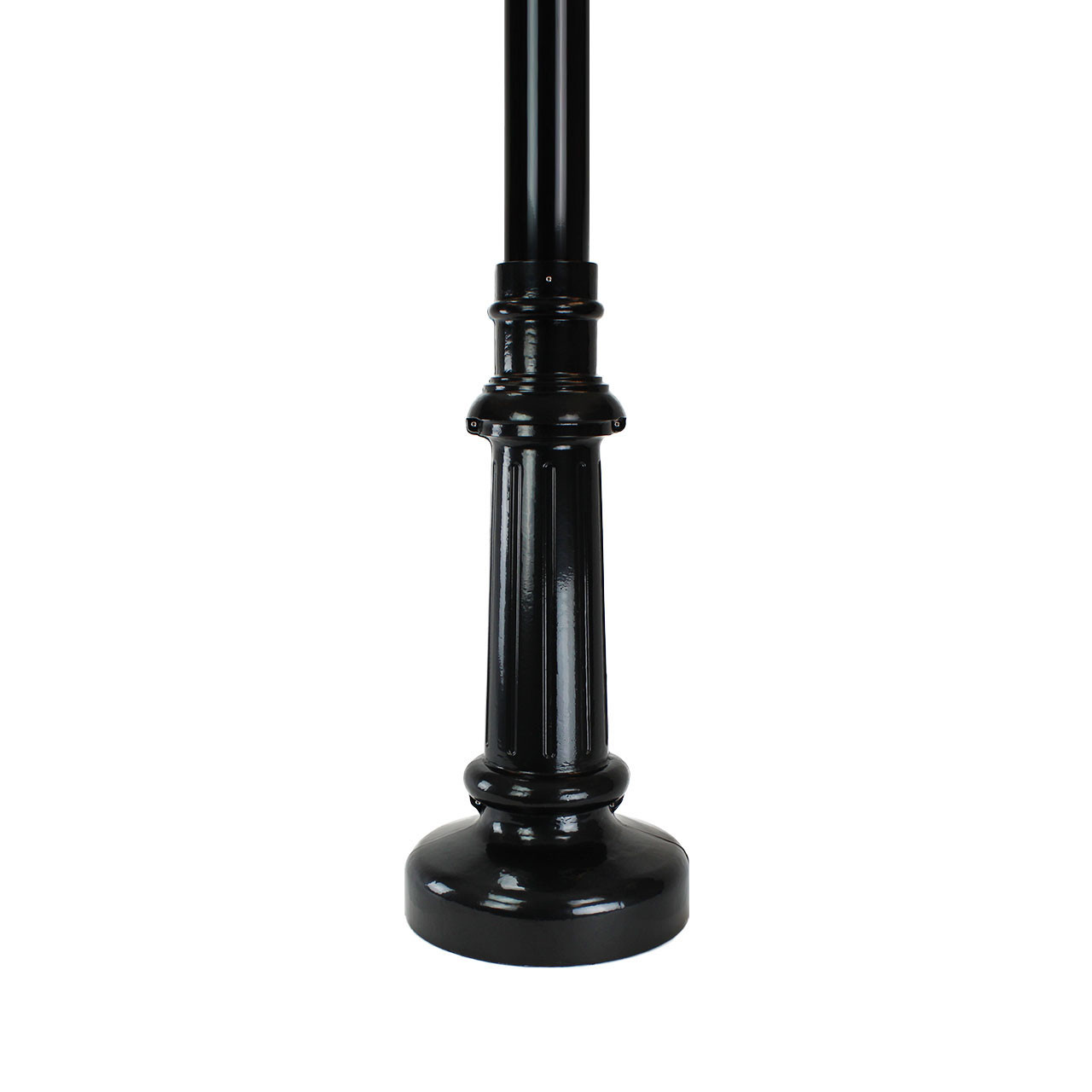

Decorative Base: 2-piece, clamshell style cast aluminum material. 4 stainless steel, tamper-resistant screws are included for attachment.
Weight: 17.5 lbs
Handhole: 2-1/2″ X 4″ size handhole is located at 18 inches from the base. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided.
Color: Black powder coat.
Maximum Load: Designed to support a light with maximum weight of 30 lbs.
Warranty: 5 Years.
Foundation Design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
