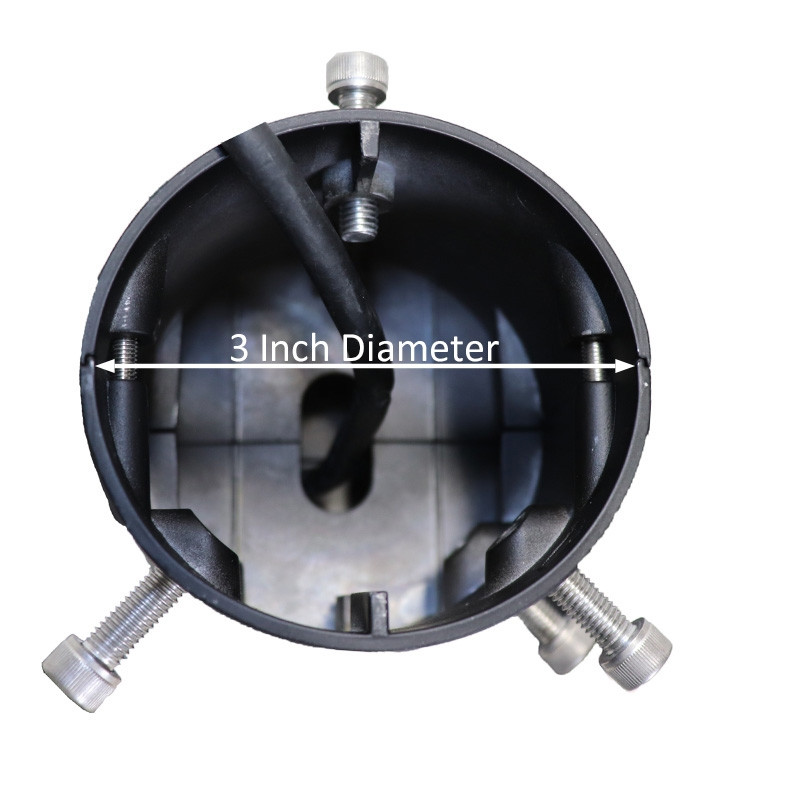

Halo Style Direct Burial LED Pole Kit with 150 Watt LED and 3 Inch Diameter Round Pole

Commercial-grade LED Light Pole Assembly Includes:

3″ OD Aluminum light pole, Architectural style 150 Watt LED light and Mounting hardware.

Light Pole:

Pole Shaft: 3 inch round straight aluminum with 0.125” wall thickness. Seamlessly extruded from 6063-T6 alloy.

Pole Height: Standard above grade pole height is 15 ft. Optional heights are 12, 10 and 8 ft. Custom heights are also available.

Handhole: 2” X 4” size handhole is located at 12” from the ground line. An aluminum handhole cover with 2 screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

Color: Black powder coat.

Embedment: Embedment length is 3 ft. for all pole heights. A 1-3/4” X 5 3/4” size slotted opening is provided 18 inches from the ground line for conduit entry.

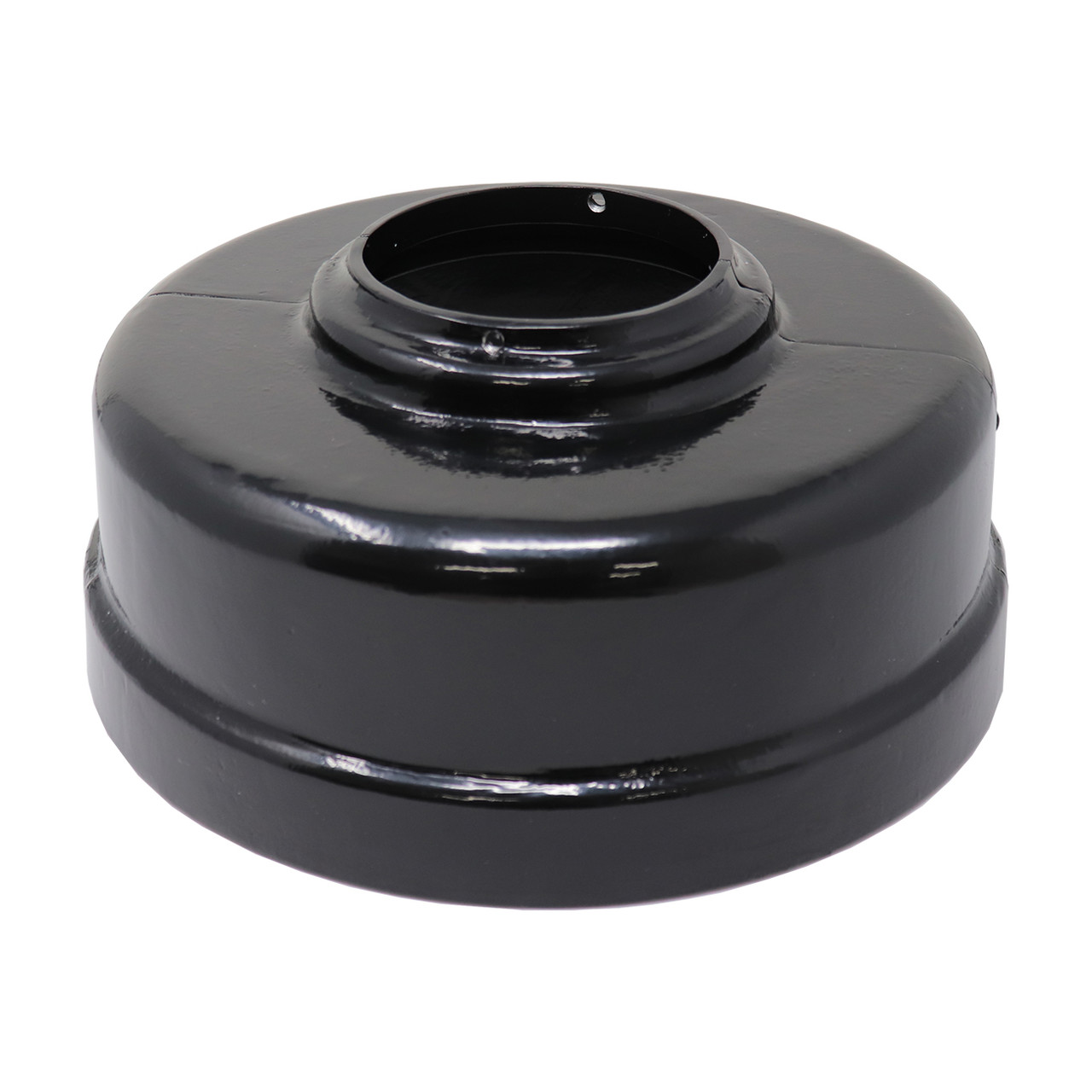

Base Cover: ABS Plastic base cover with rivets.

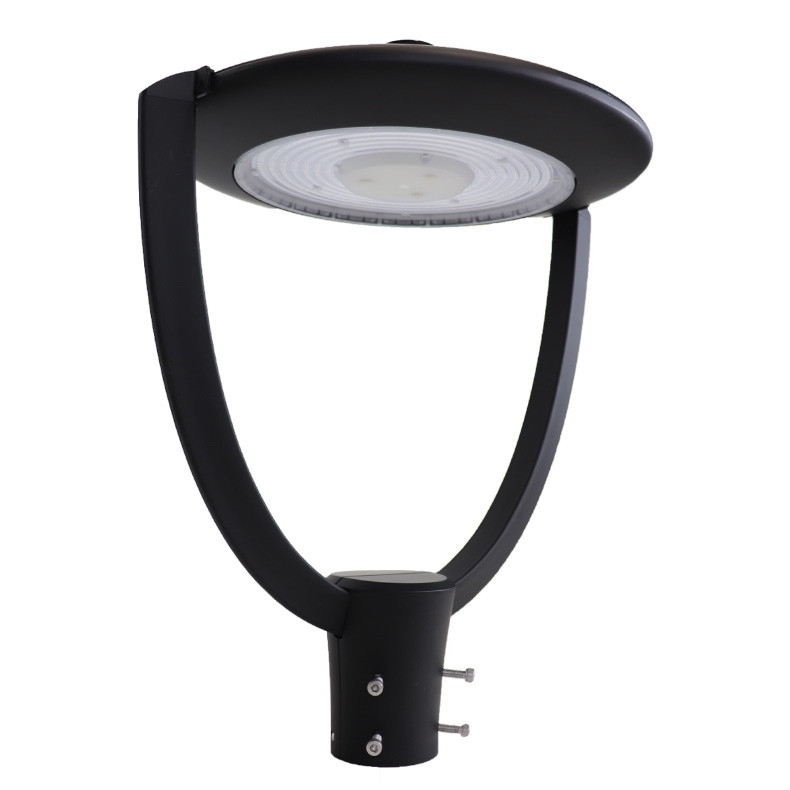

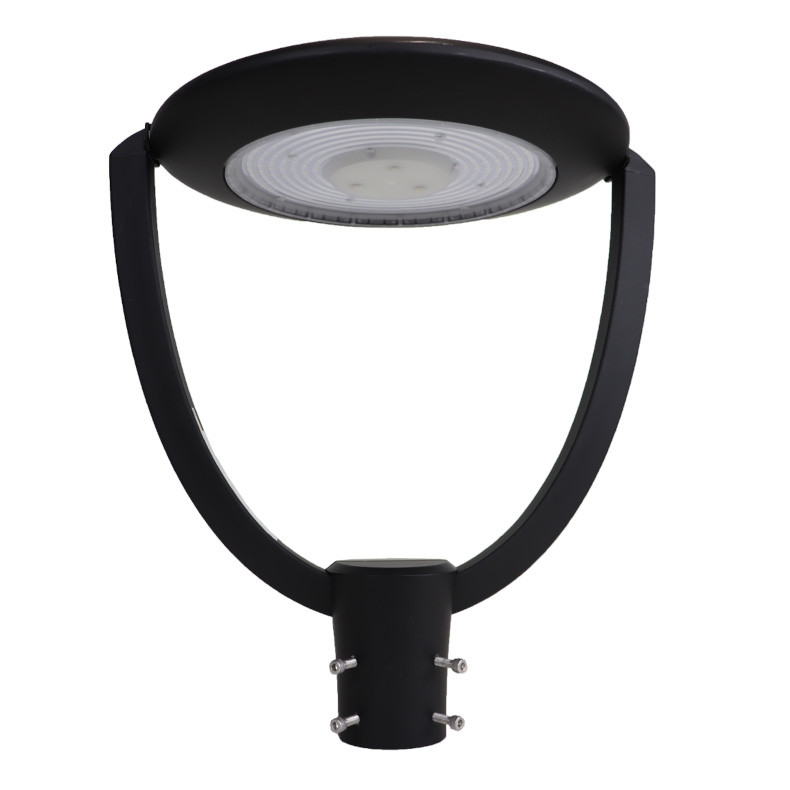

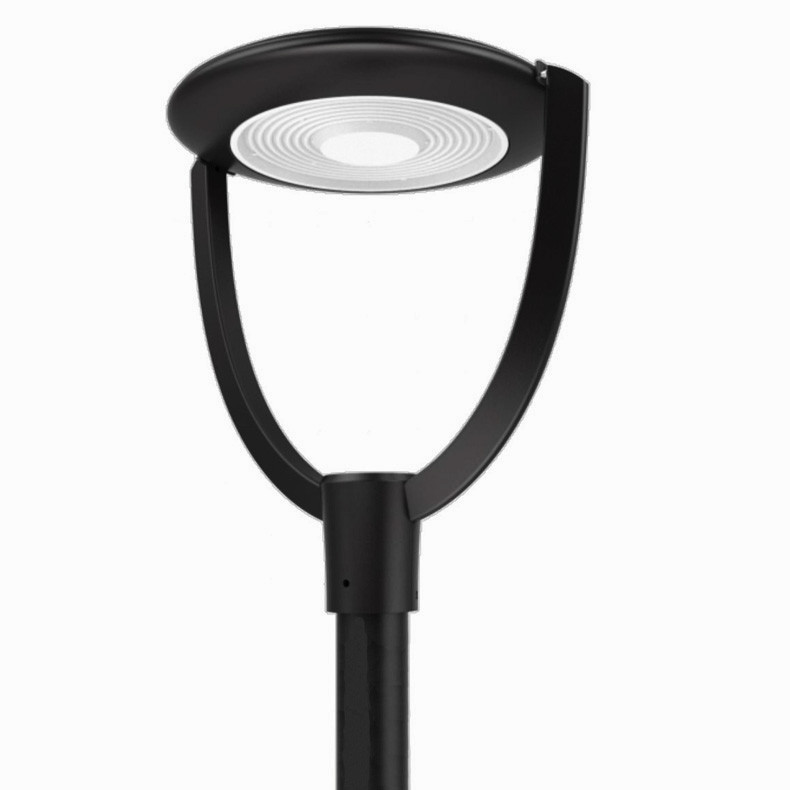

LED Fixture:

Material: Aluminum construction.

Light Distribution: Type V

Color: Black powder coat.

Power: 150 Watts

Lumens: 18,300

Lumens/Watt: 122

Voltage: 120-277 Volt standard. 345-480 Volt option as special order.

Total Amps: 120V = 1.25, 277V = 0.54

Color Temperature: 5000K standard. 4000K and 3000K options as special order.

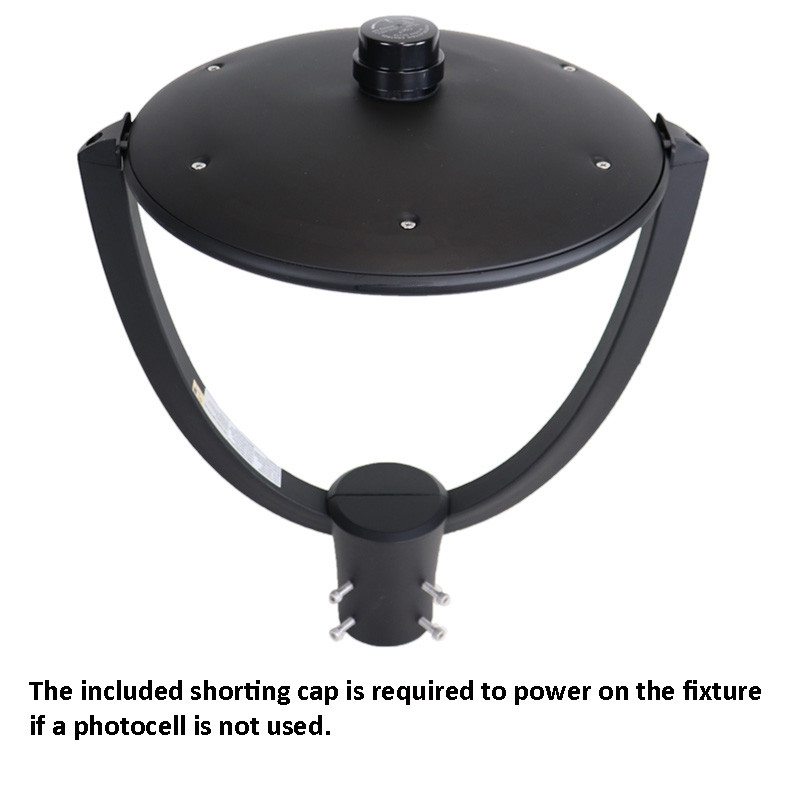

Shorting Cap: Shorting Cap (Standard). Twist-Lock photocell (Optional).

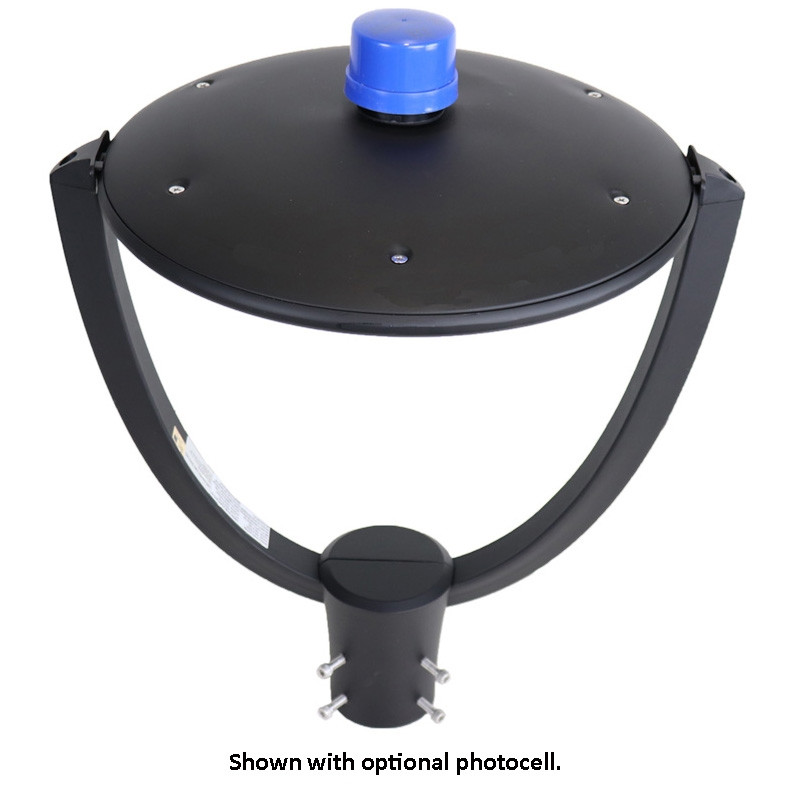

Photocell (Optional): Twist/Lock photocell.

Dimmable: No

UL Listing: UL Listed for Wet Locations.

DLC Listing: DLC Premium.

IP Rating: IP65

Life Expectancy: 50,000 hours

Warranty: 5 Years.

Weight: 15 lbs.
